Overview

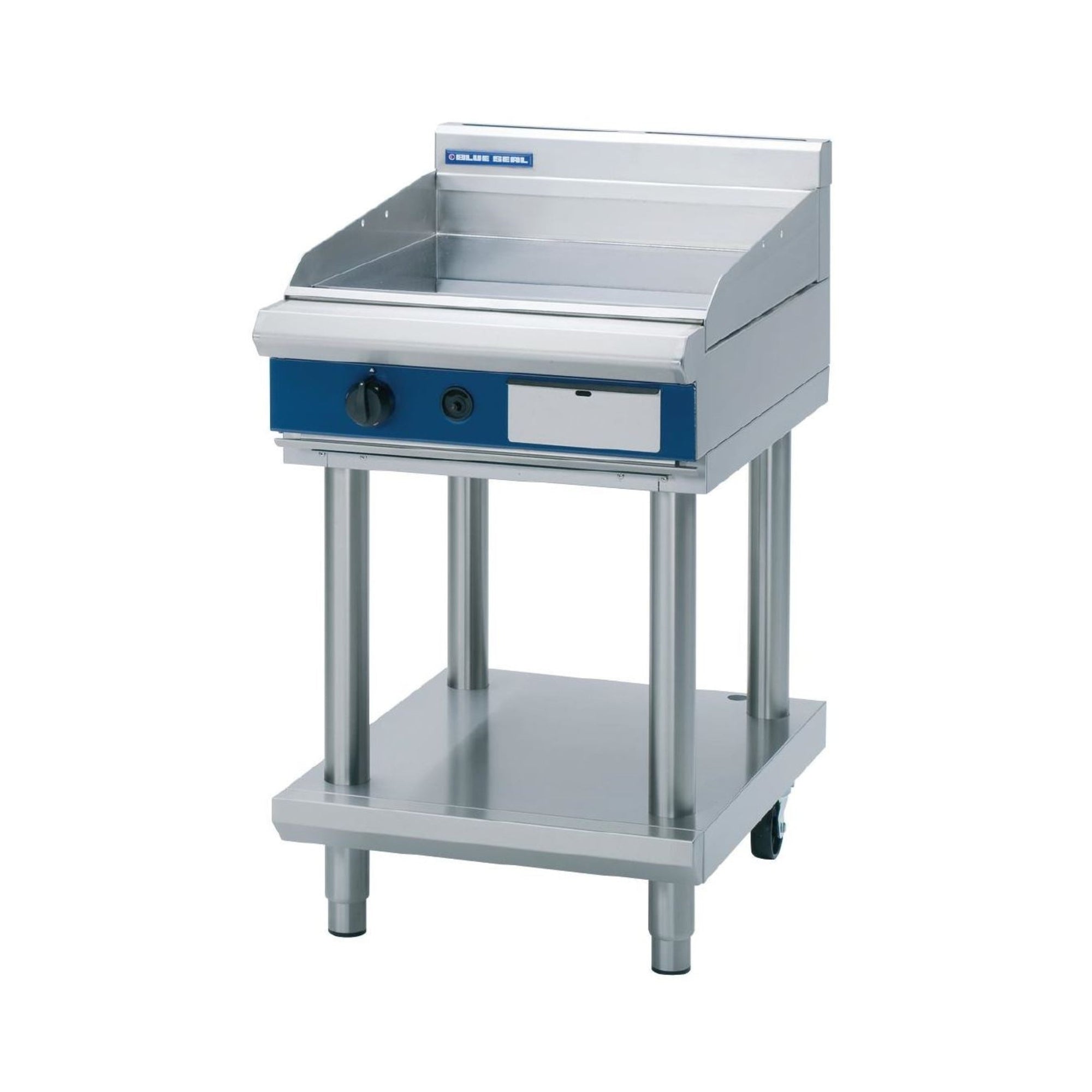

Blue Seal GP514-LS Evolution Series 600mm Gas Griddle on Leg Stand

The Blue Seal GP514-LS is a freestanding 600mm gas griddle from the Evolution Series, purpose-built for demanding commercial kitchen environments. Mounted on a robust leg stand, it features a 20mm thick smooth mild steel griddle plate with top weld sealed construction, delivering outstanding heat retention and consistent, even cooking across the full 590mm x 530mm cooking surface. The unit is available in both Natural Gas and LPG configurations and accepts a 3/4" BSP male gas connection.

Powered by a 53MJ/hr thermostatic burner system with four burners and precise 90-300°C thermostat controls, the GP514-LS gives operators accurate temperature management for everything from breakfast service to high-volume burger production. Practical features including push-button piezo ignition, heavy-duty reinforced control knobs, a stainless steel grease drawer, adjustable feet, and two rear rollers make daily operation, cleaning, and repositioning straightforward. The unit is manufactured in New Zealand from 304 stainless steel and includes a matching undershelf and a 165mm splashback.

Key Benefits

• Consistent, even heat across the full cooking surface reduces hot spots and improves food quality during busy service periods.
• Precise thermostat range of 90-300°C allows operators to switch seamlessly between delicate items and high-heat searing on the same plate.
• 20mm thick griddle plate retains heat effectively, minimising temperature recovery time when cold product is added during peak service.
• Push-button piezo ignition and heavy-duty reinforced control knobs allow quick, reliable start-up and straightforward heat adjustment under pressure.
• Stainless steel grease drawer simplifies grease collection and disposal, supporting hygiene standards and reducing cleaning downtime.
• Adjustable feet ensure stable, level installation on uneven floors, while two rear rollers make it easy to move the unit for thorough cleaning behind and underneath.
• Optional ribbed or chrome mirror plate surfaces expand the range of cooking styles possible from a single unit.
• Freestanding leg stand design suits floor-level installation without requiring bench space, maximising kitchen workflow flexibility.
• Manufactured from 304 stainless steel in New Zealand, the unit is built for long-term durability in heavy commercial use.

Key Features

• 600mm wide freestanding gas griddle on leg stand, part of the Blue Seal Evolution Series
• 53MJ/hr thermostatic burner system with four burners
• Thermostat temperature control range: 90-300°C
• 20mm thick smooth mild steel griddle plate with top weld sealed construction
• Cooking surface area: 590mm x 530mm
• Push-button piezo ignition for quick, reliable start-up
• Heavy-duty reinforced control knobs for precise heat management
• Stainless steel grease drawer included for easy grease management
• Adjustable feet for levelling on uneven floors
• Two rear rollers for easy repositioning and cleaning access
• 165mm rear splashback included
• Suite-matching undershelf included (1 shelf)
• Available in Natural Gas or LPG configurations; 3/4" BSP male gas connection
• Optional ribbed mild steel or chrome mirror plate surface available
• 304 stainless steel construction throughout
• Freestanding, floor-level installation
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 160
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.400690000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 590mm x 530mm
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
