Overview

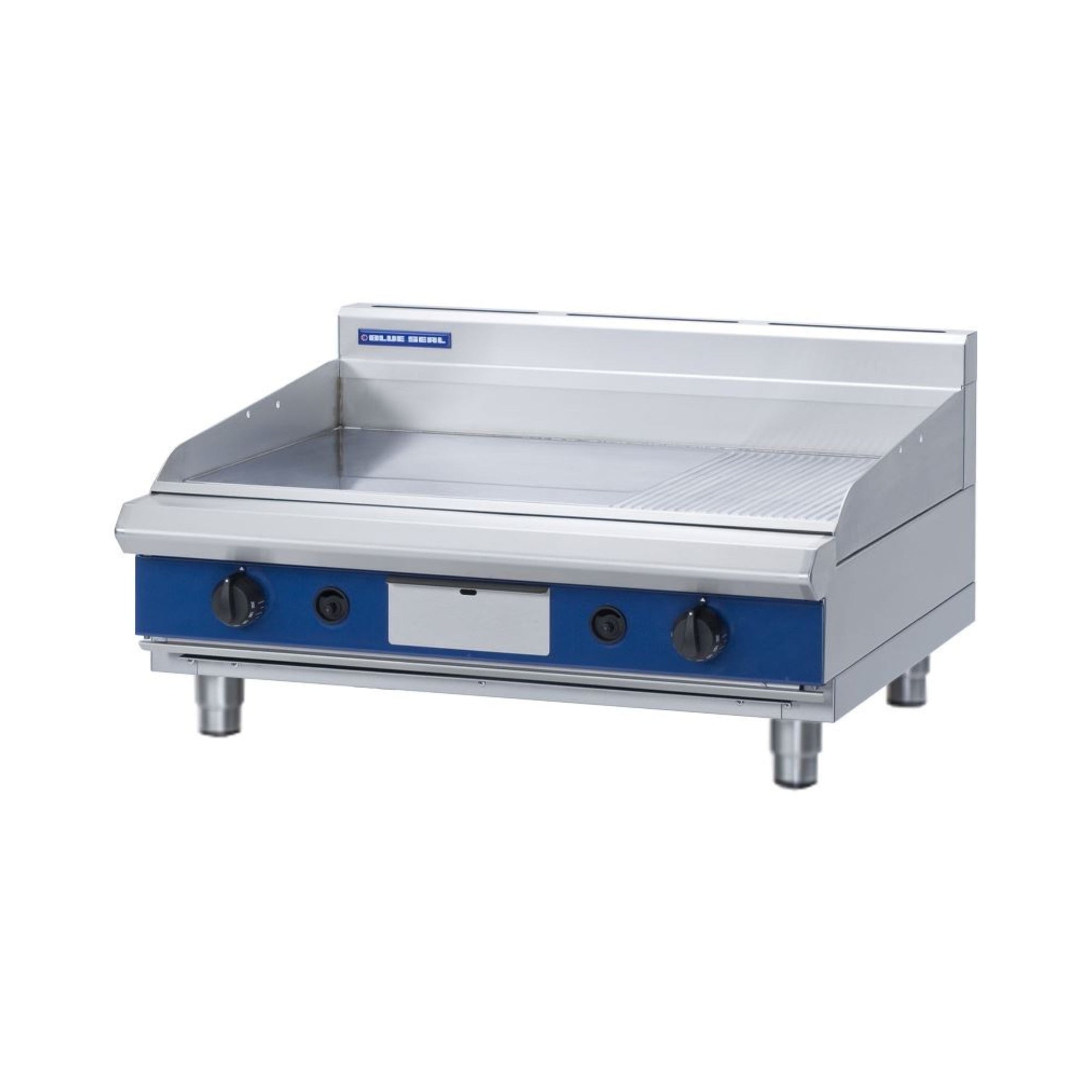

Blue Seal GP516-B Evolution Series 900mm Gas Griddle – Bench Model

The Blue Seal GP516-B Evolution Series 900mm Gas Griddle is a heavy-duty benchtop unit built for demanding commercial kitchen environments. Constructed from 304 stainless steel and manufactured in New Zealand, it delivers an 80MJ/hr thermostatic burner system across six burners, with dual thermostats offering precise temperature control from 90 to 300°C across a generous 892mm x 530mm cooking surface.

The 20mm thick smooth mild steel griddle plate provides exceptional heat retention and even distribution, making it equally suited to high-volume breakfast service, burger cookery, and a wide range of grilled menu items. Optional ribbed or chrome mirror plate finishes are available for added versatility, and the unit accepts both natural gas and LPG connections via a 3/4" BSP male fitting.

Key Benefits

• Consistent, even heat across the full 892mm x 530mm cooking surface reduces hot spots and supports uniform cooking results during peak service periods.
• Dual independent thermostats with a 90–300°C range allow different temperature zones to be set simultaneously, giving chefs precise control over varied menu items at once.
• The 20mm thick griddle plate retains heat effectively under heavy load, maintaining cooking temperatures when large quantities of food are placed on the surface.
• Push-button piezo ignition enables fast, safe start-up without the need for a separate igniter, streamlining the opening routine in busy kitchens.
• Adjustable feet and two additional rollers make it straightforward to level the unit on uneven surfaces and reposition it for thorough cleaning underneath and behind the griddle.
• The stainless steel grease drawer channels fat and residue away from the cooking surface into a single, easily removable container, speeding up between-service cleaning.
• Top weld sealed plates and a welded hob surround prevent grease and food debris from becoming trapped in joins, making daily sanitation faster and more thorough.
• Compatibility with both natural gas and LPG gives operators flexibility across different site gas supply configurations without requiring a different model.
• Optional ribbed or chrome mirror plate surfaces expand the cooking repertoire beyond flat grilling, allowing the same chassis to serve different menu styles.

Key Features

• 900mm wide benchtop (countertop) configuration suited to modular kitchen layouts
• 80MJ/hr (22.2kW) thermostatic burner system across six burners
• Two independent thermostats with 90–300°C temperature range for dual-zone cooking control
• 20mm thick smooth mild steel griddle plate for superior heat retention and even distribution
• Top weld sealed griddle plates for a hygienic, easy-clean surface with no exposed joins
• Welded hob surround constructed from 1.5mm 304 stainless steel with bull nose edge
• Stainless steel grease drawer included for efficient grease collection and simple removal
• Heavy-duty reinforced control knobs for precise, durable operation in high-use environments
• Push-button piezo ignition for reliable, tool-free lighting
• Four 63mm diameter heavy-duty 304 stainless steel bench legs with adjustable feet (height range 80–105mm) and two additional rollers for easy repositioning
• 165mm splashback included; overall height including splashback 485mm, base unit height 315mm
• Cooking surface dimensions: 892mm x 530mm
• Overall dimensions: 900mm W x 812mm D x 485mm H (including splashback)
• 304 stainless steel construction throughout
• Gas connection: 3/4" BSP male
• Available in natural gas or LPG – specify gas type at time of ordering
• Optional ribbed or chrome mirror plate surface available at additional cost
• Freestanding bench model; no undershelf
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and on-site servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 160
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.311070000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892mm x 530mm
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
