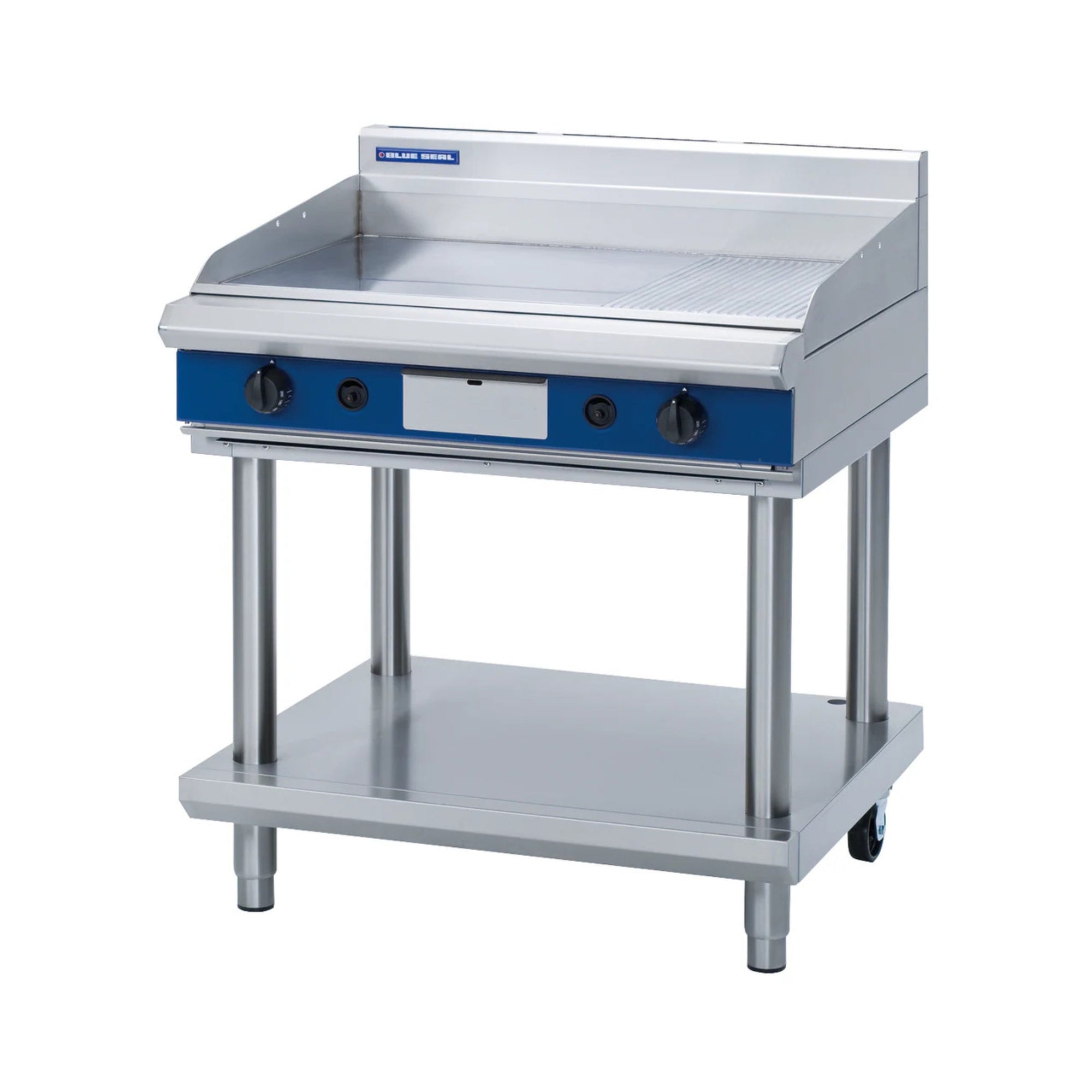

Blue Seal GP516-LS Evolution Series 900mm Gas Griddle on Leg Stand

The Blue Seal GP516-LS Evolution Series is a heavy-duty 900mm gas griddle mounted on a freestanding leg stand, purpose-built for high-volume commercial kitchens. Manufactured in New Zealand from 304 stainless steel, it features a 20mm thick smooth mild steel griddle plate spanning a generous 892mm x 530mm cooking surface, delivering exceptional heat retention and uniform heat distribution across the entire plate.

Powered by an 80MJ/hr thermostatic burner system with six burners and dual thermostats adjustable from 90 to 300°C, the GP516-LS provides precise zone temperature control suited to diverse menu items from breakfasts and burgers to seared proteins. The unit accepts both natural gas and LPG connections and includes a suite-matching undershelf, a 165mm splashback, and practical features such as push-button piezo ignition and adjustable feet with two additional rollers for easy repositioning during service or cleaning.

Key Benefits

• Dual independent thermostats spanning 90 to 300°C allow two separate cooking zones to run simultaneously at different temperatures, maximising menu flexibility during busy service periods.
• The 20mm thick griddle plate retains heat effectively across the full 892mm x 530mm surface, reducing temperature recovery time when multiple portions are loaded at once.
• An 80MJ/hr output delivers rapid heat-up and consistent cooking performance, keeping pace with the demands of high-turnover kitchens.
• Push-button piezo ignition allows quick, safe lighting without a match or lighter, reducing downtime at the start of service.
• Adjustable feet provide stable levelling on uneven floors, while two integrated rollers make it straightforward to move the unit away from the wall for thorough cleaning or servicing.
• A removable stainless steel grease drawer simplifies grease collection and disposal, supporting fast end-of-shift clean-downs.
• Top weld sealed plates prevent food debris and grease from penetrating plate joints, making surface cleaning quicker and more hygienic.
• Compatible with both natural gas and LPG via a 3/4" BSP male connection, making the unit suitable for a wide range of venue gas supply configurations.
• Optional ribbed or chrome mirror plate surfaces are available, allowing operators to choose the finish best suited to their cooking style and menu requirements.

Key Features

• 900mm wide freestanding gas griddle on a leg stand configuration
• 304 stainless steel construction throughout the body and stand
• 20mm thick smooth mild steel griddle plate as standard
• Cooking surface area: 892mm x 530mm
• 80MJ/hr thermostatic burner system with six burners
• Dual thermostats with a temperature range of 90 to 300°C for independent zone control
• Top weld sealed griddle plates for a hygienic, seamless cooking surface
• Push-button piezo ignition for quick and safe start-up
• Heavy-duty reinforced control knobs for precise and durable temperature adjustment
• Removable stainless steel grease drawer for simplified grease management
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers for easy repositioning and cleaning access
• 165mm splashback included
• Suite-matching undershelf included
• Available in natural gas or LPG; 3/4" BSP male gas connection
• Optional ribbed or chrome mirror plate surface available as alternatives to the standard smooth plate
• Freestanding, free-standing installation type
• Country of origin: New Zealand
• Dimensions: 900mm (W) x 812mm (D) x 1085mm (H)

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 189
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.587058000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892mm x 530mm
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
