Overview

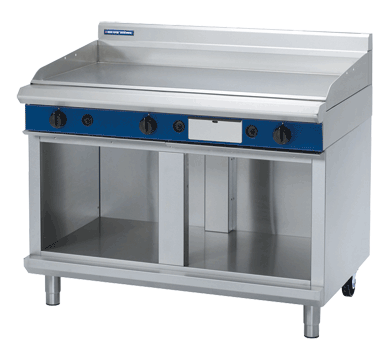

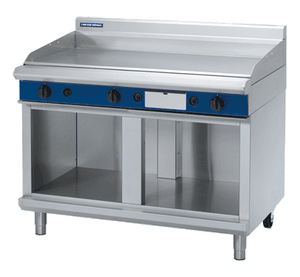

Blue Seal GP518-CB Evolution Series 1200mm Gas Griddle – Cabinet Base

The Blue Seal GP518-CB is a heavy-duty 1200mm gas griddle from the Evolution Series, designed for high-volume commercial kitchens that demand consistent, precise cooking performance. Built in New Zealand from 304 stainless steel, it sits on a fully enclosed cabinet base and delivers 108MJ/hr of thermostatic heat across a generous 1192mm x 530mm smooth mild steel cooking surface, making it ideal for large-scale breakfast, burger, and à la carte service.

Three independent 90–300°C thermostats give operators zone-by-zone temperature control across the 20mm thick griddle plate, ensuring even heat distribution and the flexibility to cook multiple menu items simultaneously. Practical features throughout – from push-button piezo ignition and a stainless steel grease drawer to adjustable feet and rear rollers – make the GP518-CB straightforward to operate, clean, and reposition on the kitchen floor.

Key Benefits

• 108MJ/hr burner output delivers rapid heat recovery during busy service periods, reducing wait times between batches.
• Three independent thermostats across the 1200mm surface allow different temperature zones to be maintained simultaneously for versatile, multi-product cooking.
• A 20mm thick griddle plate retains heat evenly and resists warping, producing consistent results across the entire cooking surface.
• Push-button piezo ignition enables fast, tool-free startup so the griddle is ready for service quickly.
• The stainless steel grease drawer centralises fat collection and slides out for fast, hygienic cleaning between services.
• Adjustable feet and two rear rollers make it easy to level the unit on uneven floors and reposition it for cleaning or kitchen reconfiguration.
• Optional ribbed or chrome mirror plate alternatives allow the same unit to be configured for a wider range of cooking styles and menu requirements.
• Top weld sealed plates and a welded construction minimise food and grease traps, supporting faster turnaround and better hygiene compliance.
• Freestanding, fully modular cabinet base with a hinged door and internal shelf provides convenient under-griddle storage while keeping the kitchen footprint compact.

Key Features

• 1200mm wide gas griddle mounted on an enclosed cabinet base
• Gas rating: 108MJ/hr (31kW); available in Natural Gas or LPG – specify at time of ordering
• Gas connection: R 3/4 (BSP) male
• Eight burners controlled by three thermostats, each adjustable from 90°C to 300°C
• 20mm thick smooth mild steel griddle plate with top weld sealed construction for optimum heat retention and durability
• Standard cooking surface: 1192mm x 530mm (6,318cm²)
• Welded hob surround with 1.5mm 304 stainless steel bull nose edging
• Push-button piezo ignition for reliable, tool-free lighting
• Heavy-duty reinforced control knobs for precise, long-lasting temperature adjustment
• Stainless steel grease drawer for efficient fat collection and easy removal
• 165mm rear splashback included
• Fully modular framed cabinet base with 0.9mm stainless steel finish and single hinged door
• 63mm diameter heavy-duty 1.2mm stainless steel legs; two adjustable feet at the front and two rollers at the rear for levelling and mobility
• Constructed from 304 stainless steel throughout
• Freestanding installation; dimensions: 1200mm W x 812mm D x 1085mm H (including splashback)
• Unit weight: 322kg
• Optional ribbed mild steel plate or chrome mirror plate available (additional charges apply)
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 242
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.773425000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 1192mm x 530mm, 6318cm2
• Number of Burners: 8
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
