Overview

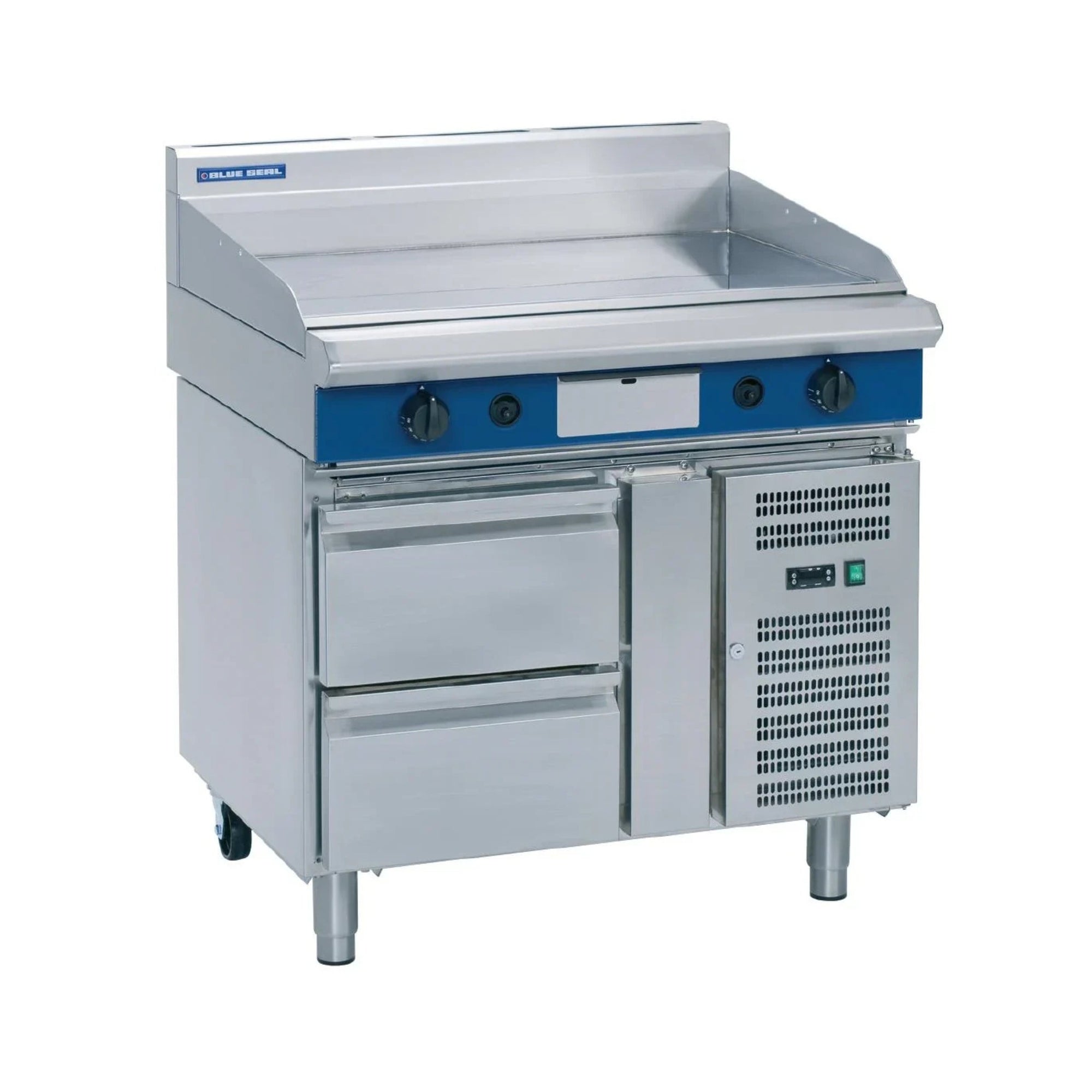

Blue Seal GP518-RB Evolution Series 1200mm Gas Griddle with Refrigerated Base

The Blue Seal GP518-RB Evolution Series combines a high-output 1200mm gas griddle with an integrated refrigerated base, delivering a compact, all-in-one cooking and cold-storage solution purpose-built for demanding commercial kitchens. The griddle runs a 108MJ/hr thermostatic burner system with three independent 90–300°C thermostats for precise, zone-by-zone temperature control, while the refrigerated base maintains a -2°C to +8°C temperature range and carries a Tropical Climate rating to cope with hot kitchen environments.

Constructed for heavy-duty everyday service, the unit features a 20mm thick griddle plate with top weld-sealed plates for even heat distribution and long-term durability. Two GN 2/1 refrigerated drawers provide immediate access to prepped ingredients at the point of cooking, eliminating unnecessary trips to a separate cool room. Available in Natural Gas or LPG configurations, the GP518-RB is designed to streamline workflow, simplify cleaning, and reduce the overall equipment footprint on the kitchen floor.

Key Benefits

• Integrated refrigerated base keeps ingredients cold at the point of cooking, reducing walk time and improving service speed during busy periods.
• 108MJ/hr burner output with three independent thermostats allows precise temperature zoning across the griddle surface, giving chefs full control over different food types simultaneously.
• Tropical Climate rating ensures the refrigerated base performs reliably even in hot, humid kitchen environments where standard refrigeration can struggle.
• 20mm thick griddle plate with top weld-sealed construction delivers consistent, even heat across the entire cooking surface and resists warping under prolonged high-temperature use.
• Push-button piezo ignition provides fast, reliable lighting without the need for matches or lighters, supporting efficient kitchen start-up and re-ignition during service.
• Two GN 2/1 drawers with 100mm deep pan capacity offer ample cold ingredient storage directly beneath the cooking surface, compatible with standard gastronorm pans.
• Adjustable feet and two rear rollers make levelling straightforward on uneven floors and allow the unit to be moved easily for thorough cleaning or repositioning.
• Stainless steel grease drawer simplifies fat collection and disposal, supporting food-safe hygiene standards and reducing cleaning downtime between services.
• Optional ribbed or chrome mirror griddle plate surfaces allow operators to tailor the unit to specific menu requirements without replacing the entire appliance.

Key Features

• 1200mm wide gas griddle integrated onto a refrigerated base unit
• 108MJ/hr thermostatic burner system for high-output commercial cooking
• Three independent thermostats with a 90–300°C temperature range for precise zone control
• Refrigerated base operating range of -2°C to +8°C, Tropical Climate rated
• Two GN 2/1 refrigerated drawers with 100mm deep pan capacity
• 20mm thick griddle plate for superior heat retention and even cooking
• Top weld-sealed griddle plates for durability and hygienic construction
• Stainless steel grease drawer for efficient grease management and easy cleaning
• Heavy-duty reinforced control knobs for precise and durable operation
• Push-button piezo ignition for safe and convenient lighting
• Adjustable feet for levelling stability, plus two additional rollers for easy repositioning
• Designed for easy cleaning, installation, and routine servicing
• Optional ribbed or chrome mirror griddle plate surface available (additional charges apply)
• Available in Natural Gas or LPG configuration -- gas type must be specified at time of ordering
• 3-pin 10A plug cordset fitted for refrigeration power supply

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Shipping Weight: 322
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.773425000m3
