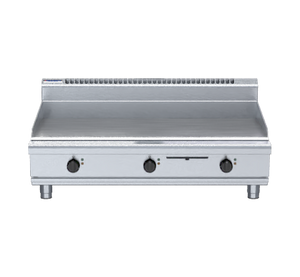

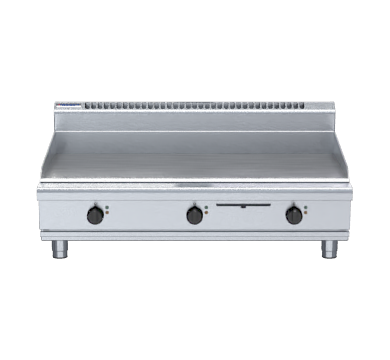

Waldorf GP8120E-B 800 Series 1200mm Electric Griddle Bench Model

The Waldorf GP8120E-B is a heavy-duty 1200mm electric griddle from the acclaimed 800 Series, purpose-built for high-volume commercial kitchens. Powered by 16.2kW of heating elements across nine stainless steel sheathed elements, the unit delivers consistent, responsive heat through three independent temperature control zones spanning left, centre and right sections of the plate, giving operators precise control over multiple menu items simultaneously.

Constructed in New Zealand to exacting standards, the griddle features a solid 20mm thick machined cooking plate with seamless top weld construction for superior heat retention and even distribution across the full surface. The bench model mounts on four 63mm diameter stainless steel legs with adjustable feet, providing a stable working height adjustable between 80mm and 105mm, while two additional rollers make repositioning straightforward. Optional ribbed plate sections or mirror finish hard chrome plates allow the unit to be configured for specific cooking requirements.

Key Benefits

• Three independent heat zones across left, centre and right sections let chefs cook different items at different temperatures simultaneously, maximising menu flexibility during busy service.
• The 20mm thick machined griddle plate provides excellent thermal mass, retaining heat during high-demand periods and ensuring consistent searing results with minimal temperature recovery time.
• Separate thermostatic controls with a 50-300°C range give precise temperature management for delicate items like eggs and fish through to high-heat applications such as burgers and steaks.
• Top weld sealed plate construction and overlapping finish at the front and rear of the plate eliminate food and grease traps, dramatically reducing cleaning time between services.
• The removable stainless steel grease drawer channels fat and debris efficiently away from the cooking surface, simplifying grease management and maintaining a hygienic work environment.
• Adjustable bench legs with a height range of 80-105mm and two additional rollers allow flexible kitchen placement and easy repositioning for cleaning or reconfiguration.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for both power and heating status make monitoring cooking conditions quick and straightforward for busy kitchen teams.
• Optional ribbed plate sections and mirror finish hard chrome plates allow the griddle to be tailored for specific cooking styles, from chargrilled marks to perfectly seared proteins requiring a smooth, ultra-even surface.

Key Features

• 1200mm wide bench model electric griddle from the Waldorf 800 Series
• 16.2kW total power output via nine individual 1.8kW stainless steel sheathed heating elements
• 20mm thick machined griddle plate with seamless top weld sealed construction for superior heat retention and even distribution
• Three independent thermostatic control zones: separate left, centre and right heat sections
• Three 50-300°C thermostats with large, heat-resistant reinforced control knobs and easy-view settings
• Indicator lights for both power and heating status
• 2.5mm thick 304 stainless steel splash guards to sides and rear
• Welded hob surround with 1.5mm 304 stainless steel bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.0mm thick stainless steel grease channel with removable stainless steel grease drawer
• Overlapping finish at front and rear of plate for fast, thorough cleaning
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable leg height range of 80-105mm
• Two additional rollers included for ease of repositioning
• Splashback included as standard
• Electrical requirements: 16.2kW, 400-415Vac, 50/60Hz, 3P+N+E
• Optional ribbed plate sections available
• Optional mirror finish hard chrome plates available
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Shipping Weight: 192
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Voltage/Phase: 16.2kW; 400-415Vac, 50/60Hz, 3P+N+E
• Temperature Control: Thermostatic
