Overview

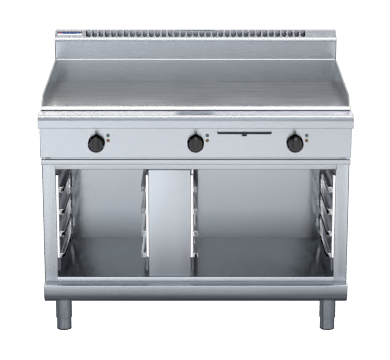

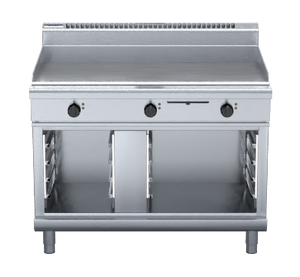

Waldorf GP8120E-CB 800 Series 1200mm Electric Griddle on Cabinet Base

The Waldorf GP8120E-CB is a heavy-duty 1200mm electric griddle built on a cabinet base as part of the renowned 800 Series, designed for demanding commercial kitchen environments. Powered by 16.2kW of electric heating across nine 1.8kW stainless steel sheathed elements, it features a solid 20mm thick machined griddle plate as standard, delivering exceptional heat retention and consistent temperature distribution across the entire cooking surface.

Constructed from 304 stainless steel throughout, this unit combines a fully modular cabinet base with a practical single-zone thermostatic control system, making it straightforward to operate and maintain. The cabinet base is fully modular to match suite configurations, and the griddle is available with optional ribbed plate sections or mirror finish hard chrome plates to suit a variety of cooking applications.

Key Benefits

• The 20mm thick machined griddle plate retains and distributes heat evenly, reducing hot spots and ensuring consistent cooking results across the full 1200mm surface.
• Thermostatic temperature control across the cooking zone allows operators to dial in precise heat settings between 50 and 300°C, supporting everything from delicate proteins to high-volume searing.
• Top weld sealed plates and overlapping plate edges at the front and rear minimise grease traps, making cleaning faster and more thorough between service periods.
• The integrated stainless steel grease drawer captures run-off efficiently, reducing mess and simplifying routine maintenance during and after service.
• Heavy-duty reinforced control knobs with easy-view settings are heat resistant and built to withstand the rigours of continuous commercial use.
• Adjustable feet and two additional rollers allow precise levelling on uneven floors and easy repositioning for cleaning or kitchen reconfiguration.
• The fully modular cabinet base with double-skin 304 stainless steel construction provides a hygienic, durable storage solution and supports matched suite integration with other 800 Series equipment.
• Optional ribbed plate sections and mirror finish hard chrome plate upgrades expand the versatility of the unit for grilling, searing and presentation-quality cooking.
• New Zealand manufactured and backed by a 24-month warranty, the GP8120E-CB is engineered for long-term reliability in high-turnover commercial kitchens.

Key Features

• 1200mm wide electric griddle mounted on a closed cabinet base
• 16.2kW total power output via nine 1.8kW stainless steel sheathed heating elements
• 20mm thick machined griddle plate standard for superior heat retention and even distribution
• Single temperature control zone with thermostatic control, 50-300°C range
• Top weld sealed plate construction for hygienic, easy-clean surface
• Overlapping plate finish at front and rear to minimise grease ingress and aid cleaning
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• Welded hob surround with 1.5mm 304 stainless steel bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.0mm thick stainless steel grease channel with removable stainless steel grease drawer
• Large heat-resistant reinforced control knob with easy-view setting indicators
• Indicator lights for power and heating status
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of movement and repositioning
• Fully modular design for matched suite finish with other 800 Series equipment
• Optional GN 1/1 four-position racking kit available for cabinet bay (supports up to eight 65mm GN 1/1 containers)
• Optional ribbed plate sections available
• Optional mirror finish hard chrome plate available
• Electrical requirements: 16.2kW, 400-415Vac, 50/60Hz, 3P+N+E
• Integrated splashback included
• 304 stainless steel construction throughout
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Shipping Weight: 260
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Voltage/Phase: 16.2kW; 400-415Vac, 50/60Hz, 3P+N+E
• Temperature Control: Thermostatic
