Overview

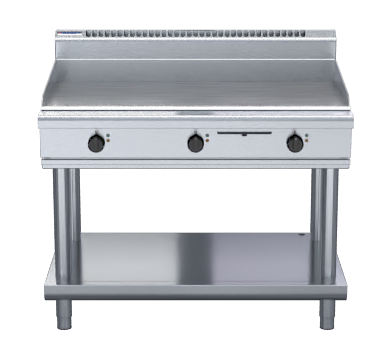

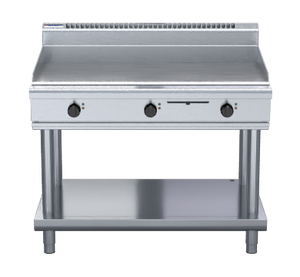

Waldorf GP8120E-LS 800 Series 1200mm Electric Griddle on Leg Stand

The Waldorf GP8120E-LS is a heavy-duty 1200mm electric griddle from the 800 Series, mounted on a purpose-built leg stand for standalone installation in commercial kitchens. Constructed throughout from 304 stainless steel and built in New Zealand, the unit draws 16.2kW from a three-phase electrical supply and features a solid 20mm thick machined griddle plate with seamless weld construction, delivering exceptional heat retention and consistent heat distribution across the entire cooking surface. A single thermostatic control zone operates between 100 and 290°C, making the GP8120E-LS well suited to high-volume breakfast, burger and general short-order cooking.

The leg stand is fully modular to allow suite matching with other 800 Series equipment, and incorporates adjustable feet plus two additional rollers for straightforward repositioning on the kitchen floor. An integrated stainless steel grease drawer, overlapping plate edges for easy cleaning, and a design that simplifies installation and servicing all contribute to efficient kitchen operation. Optional ribbed plate sections or mirror-finish hard chrome plates are available to suit different menu requirements.

Key Benefits

• The 20mm thick machined griddle plate delivers outstanding heat retention and even heat distribution, reducing hot spots and ensuring consistent cooking results across the full 1200mm surface.
• Thermostatic temperature control between 100 and 290°C allows precise adjustment to suit a wide variety of foods, from delicate eggs to seared burgers and grilled proteins.
• The stainless steel grease drawer and overlapping plate-edge design simplify cleaning between service periods, supporting fast turnaround in busy kitchens.
• Top weld sealed plates and side and rear splash guards in 2.5mm 304 stainless steel protect surrounding surfaces and simplify end-of-service cleaning.
• The fully modular leg stand connects directly to the griddle unit without tools, enabling quick assembly and the flexibility to build a matched suite alongside other 800 Series equipment.
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned on the kitchen floor with minimal effort.
• Optional ribbed plate sections or mirror-finish hard chrome plates allow operators to customise the cooking surface to suit specific menu items or presentation requirements.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for power and heating status support accurate, at-a-glance operation during busy service.

Key Features

• 1200mm wide electric griddle mounted on a dedicated leg stand
• 16.2kW total power rating; 400-415Vac, 50/60Hz, 3P+N+E electrical supply
• Nine individual 1.8kW stainless steel sheathed heating elements
• 20mm thick machined griddle plate as standard for superior heat retention and uniform distribution
• Seamless weld construction across the griddle plate
• Single thermostatic temperature control zone; 100-290°C operating range
• Top weld sealed plates
• Side and rear splash guards fabricated from 2.5mm thick 304 stainless steel sheet
• Welded hob surround constructed from 1.5mm 304 stainless steel, finished with a bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.0mm thick grease channel
• Stainless steel grease drawer
• Overlapping plate finish at front and rear for easy cleaning
• Large, heat-resistant, heavy-duty reinforced control knob with easy-view settings
• Indicator lights for power and heating status
• Leg stand is fully modular for matched suite configuration
• Framed top on leg stand for direct connection to griddle unit
• Leg stand fitted with 63mm diameter tubular stainless steel legs in 1.2mm 304 grade, each with individually adjustable feet
• Two additional rollers for ease of repositioning
• Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
• Quick assembly design requiring no tools

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Shipping Weight: 192
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Voltage/Phase: 16.2kW; 400-415Vac, 50/60Hz, 3P+N+E
• Temperature Control: Thermostatic
