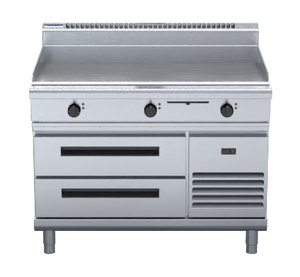

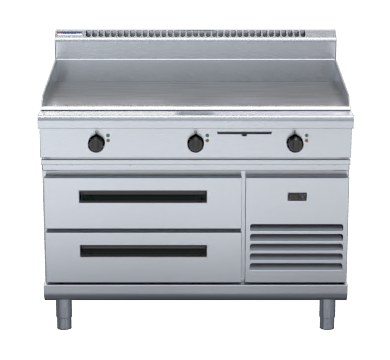

Waldorf GP8120E-RB 800 Series 1200mm Electric Griddle with Refrigerated Base

The Waldorf GP8120E-RB combines a full 1200mm electric griddle with an integrated refrigerated base, delivering a compact, all-in-one cooking and cold storage solution purpose-built for high-volume commercial kitchens. The 20mm thick griddle plate is powered by nine individual 1.8kW stainless steel sheathed heating elements totalling 16.2kW, while the refrigerated underbody maintains temperatures from -2°C to +8°C and accommodates two GN 2/1 drawers for immediate ingredient access during service.

Constructed from 304 stainless steel throughout, the GP8120E-RB is manufactured in New Zealand to Waldorf's 800 Series standards and carries a 2-year parts and labour warranty. The unit features separate left, centre and right heat zones each controlled by a dedicated 50-300°C thermostat, giving operators precise independent control across the entire cooking surface. Adjustable feet and two rollers simplify positioning and levelling, while top weld-sealed plates, a stainless steel grease drawer and a ventilated R134a refrigeration system all support fast, thorough daily cleaning.

Key Benefits

• Integrated refrigerated base puts ingredients directly beneath the cooking surface, cutting travel time and supporting faster plating during busy service periods.
• Three independent heat zones across the 1200mm plate let operators cook different proteins or products simultaneously at precise temperatures without cross-influence.
• The 20mm thick griddle plate retains and distributes heat evenly, recovering temperature quickly after cold ingredients are loaded and reducing hot or cool spots.
• A -2°C to +8°C tropical-climate-rated refrigerated base safely holds prepped ingredients through long service sessions without a separate underbench fridge.
• Two GN 2/1 drawer positions (100mm deep pans) provide organised, labelled cold storage immediately accessible to the cooking line.
• Top weld-sealed plates prevent grease and food debris from migrating beneath the surface, making end-of-service cleaning significantly faster.
• Heavy-duty reinforced control knobs withstand the mechanical demands of continuous commercial use and resist the heat and grease of a live cooking environment.
• Adjustable feet combined with two rollers allow straightforward repositioning for cleaning or reconfiguration without requiring additional equipment.
• Optional ribbed or chrome mirror plate upgrades allow the griddle surface to be matched to specific menu requirements without replacing the entire unit.

Key Features

• 1200mm wide electric griddle mounted on an integrated refrigerated base
• 20mm thick griddle plate for superior heat retention and even cooking
• Nine individual 1.8kW stainless steel sheathed heating elements, 16.2kW total output
• Separate left, centre and right heat zones with three independent thermostats
• Thermostat temperature range: 50°C to 300°C per zone
• Griddle electrical supply: 400-415Vac, 50/60Hz, 3P+N+E (16.2kW)
• Refrigeration electrical supply: 220-240Vac, 50Hz, 1P+N+E, 1.8A (3-pin 10A plug and cordset fitted)
• Refrigerated base operating range: -2°C to +8°C, tropical climate rated
• Ventilated refrigeration system using R134a refrigerant
• Two GN 2/1 drawer positions with 100mm deep pan capacity
• Top weld-sealed griddle plates prevent grease ingress and simplify cleaning
• Stainless steel grease drawer for hygienic fat collection and easy disposal
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• Integrated splashback included; overall height 1130mm including splashback (915mm excluding)
• Heavy-duty reinforced control knobs for durability in continuous commercial use
• Adjustable feet plus two additional rollers for levelling and repositioning
• Optional ribbed plate or chrome mirror plate available as alternatives to the standard smooth surface
• Constructed from 304 stainless steel throughout
• Manufactured in New Zealand
• 2-year parts and labour warranty
• 800 Series Waldorf platform construction

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Shipping Weight: 260
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz|Phase loading
• Temperature Control: Thermostatic
