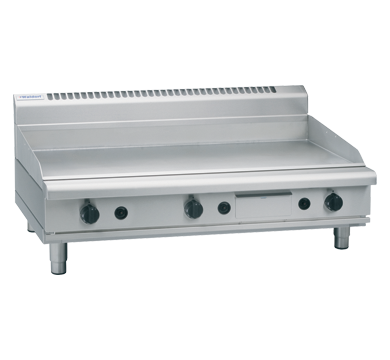

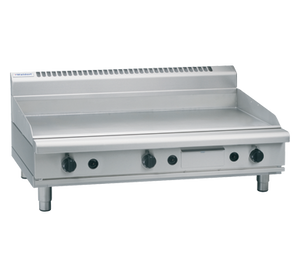

Waldorf GP8120G-B 800 Series 1200mm Gas Griddle – Bench Model

The Waldorf GP8120G-B is a heavy-duty 1200mm bench-model gas griddle from the 800 Series, purpose-built for high-volume commercial kitchens. Constructed from 304 stainless steel throughout, it features a 20mm thick griddle plate with top weld sealed construction for exceptional heat retention and uniform heat distribution across the full 1192mm x 530mm cooking surface.

Rated at 108MJ/hr (30kW) and driven by a thermostatic burner system with a temperature range of 100–290°C, this griddle delivers consistent, controllable results whether you're running a busy breakfast service, a burger operation, or high-turnover catering. Optional ribbed or chrome mirror plate configurations make it adaptable to a range of cooking styles, and the smooth-clean design keeps turnaround times short between services.

Key Benefits

• The 20mm thick plate retains and distributes heat evenly across the entire cooking surface, eliminating hot spots and ensuring consistent results across all four burners.
• Thermostatic temperature control across a 100–290°C range gives chefs precise management of cooking conditions, reducing the risk of over or undercooking during peak service.
• Push-button piezo ignition allows fast, reliable lighting without the need for a separate igniter, keeping downtime to a minimum at the start of service.
• Full pilot and flame failure protection provides an important safety safeguard, automatically cutting gas supply if the flame is extinguished.
• A stainless steel grease drawer and top weld sealed plates simplify cleaning, allowing grease and food debris to be removed quickly between sessions for faster turnaround.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation, as well as allowing the unit to be repositioned for servicing or cleaning.
• Compatible with both natural gas and LPG (R 3/4 BSP male connection), the griddle suits a wide variety of kitchen setups without requiring custom fittings.
• Optional ribbed or chrome mirror plate upgrades allow the same unit to be configured for different menu applications, from searing meat to delicate proteins.
• Backed by a 24-month warranty on parts and labour, the GP8120G-B delivers long-term reliability and confidence in a demanding commercial environment.

Key Features

• 1200mm wide bench-model gas griddle from the Waldorf 800 Series
• 20mm thick griddle plate with top weld sealed construction for superior heat retention and even heat distribution
• Smooth cooking surface with a usable area of 1192mm x 530mm
• Four burners with a combined output of 108MJ/hr (30kW)
• Thermostatic burner system with individual temperature controls, range 100–290°C
• Push-button piezo ignition for quick, reliable start-up
• Full pilot and flame failure protection for safe operation
• Heavy-duty reinforced control knobs for durable, precise adjustment under continuous use
• Stainless steel grease drawer for easy, hygienic grease collection and removal
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• 2.0mm thick grease channel
• Four 63mm diameter heavy-duty 304 stainless steel bench legs with adjustable feet (adjustable height 80–105mm)
• Two additional rollers for ease of repositioning
• Splashback included; overall height including splashback 530mm (base unit height 315mm)
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Constructed from 304 stainless steel throughout
• Optional ribbed or chrome mirror plate available
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Shipping Weight: 276
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Cooking Surface Area (mm): 1192mm x 530mm
• Power Rating: 30.0 kW
• Temperature Control: Thermostatic
