Overview

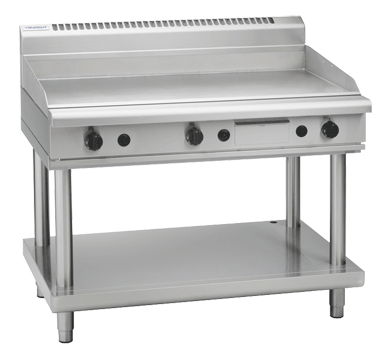

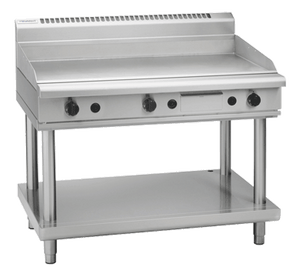

Waldorf GP8120G-LS 800 Series 1200mm Gas Griddle on Leg Stand

The Waldorf GP8120G-LS is a heavy-duty 1200mm gas griddle mounted on a purpose-built leg stand, forming part of the renowned 800 Series engineered for high-volume commercial kitchens. Built entirely from 304 stainless steel, it incorporates a solid 20mm thick griddle plate with top weld sealed construction, delivering exceptional heat retention and uniform heat distribution across a generous 1192mm x 530mm cooking surface totalling 6318cm².

Three 36MJ burners provide a combined output of 108MJ/hr (30kW), with individual thermostatic controls spanning a temperature range of 100–290°C for precise, consistent cooking. Push-button piezo ignition with full pilot and flame failure protection ensures safe, reliable start-up, while dual compatibility with natural gas and LPG, a stainless steel grease drawer, adjustable feet, and two additional rollers make the unit well suited to a wide range of commercial installations. Manufactured in New Zealand and backed by a 24-month parts and labour warranty.

Key Benefits

• Large 6318cm² smooth cooking surface handles high-volume breakfast, burger, and protein cooking with ease across a single continuous plate.
• 20mm thick griddle plate with seamless weld construction retains heat effectively and distributes it evenly, reducing hot spots and improving cook consistency.
• Three independent thermostatic controls allow different temperature zones to be maintained simultaneously, giving chefs the flexibility to cook multiple menu items at once.
• Push-button piezo ignition with full pilot and flame failure protection ensures fast, safe lighting and adds a layer of operational safety for busy kitchen teams.
• Stainless steel grease drawer captures drippings efficiently, making end-of-service clean-down quicker and reducing the risk of grease build-up.
• Adjustable feet and two additional rollers make it straightforward to level the unit on uneven floors and reposition it for cleaning or maintenance.
• Dual fuel compatibility with natural gas and LPG via a 3/4 BSP male connection provides installation flexibility across different venue configurations.
• Optional ribbed or chrome mirror plate upgrades allow the same unit to be configured for different cooking styles or menu requirements.
• The leg stand features 63mm diameter heavy-duty 304 stainless steel tube construction at 1.2mm wall thickness, a height-adjustable foot system, and a fully framed modular undershelf for a robust, hygienic storage solution.

Key Features

• 1200mm wide gas griddle mounted on a purpose-built leg stand
• 20mm thick griddle plate with top weld sealed construction for superior heat retention and even heat distribution
• Cooking surface area: 1192mm x 530mm (6318cm²), smooth finish as standard
• Three 36MJ three-bar even-heat burners, total output 108MJ/hr (30kW)
• Three individual thermostatic controls with temperature range of 100–290°C
• Full pilot and flame failure protection with push-button piezo ignition
• Heavy-duty reinforced control knobs for durability under constant use
• Side and rear splash guards fabricated from 304 stainless steel at 2.5mm thickness
• Stainless steel grease drawer for easy grease collection and cleaning
• 2.0mm thick grease channel directing drippings to the grease drawer
• Adjustable feet and two additional rollers for levelling and repositioning
• Leg stand constructed from 63mm diameter 304 stainless steel tube at 1.2mm wall thickness, with independently adjustable feet at each leg
• Modular framed undershelf finished in 0.9mm 304 stainless steel, included as standard
• Splashback included as standard
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• Optional ribbed plate or chrome mirror plate available
• Entire unit constructed from 304 stainless steel
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Shipping Weight: 322
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Cooking Surface Area (mm): 1192mm x 530mm, 6318cm2
• Power Rating: 30.0 kW
• Temperature Control: Thermostatic
