Overview

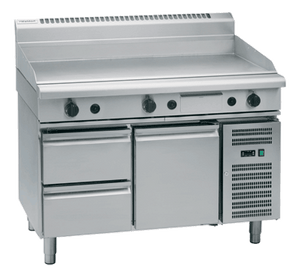

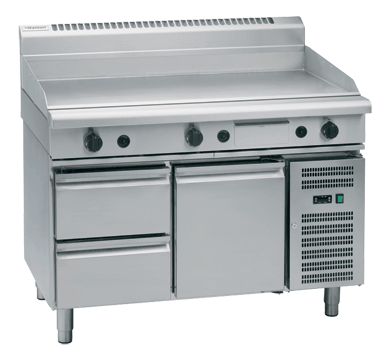

Waldorf GP8120G-RB 800 Series 1200mm Gas Griddle with Refrigerated Base

The Waldorf GP8120G-RB combines a full 1200mm gas griddle with an integrated refrigerated base, bringing together cooking and cold storage in a single 800 Series unit built for demanding commercial kitchens. The griddle delivers 108MJ/hr through a four-burner thermostatic system, while the refrigerated cabinet below maintains temperatures between 0°C and 4°C, keeping ingredients close at hand throughout a busy service period.

Constructed from 304 stainless steel and manufactured in New Zealand, the GP8120G-RB is engineered for straightforward cleaning, installation, and ongoing service. The 20mm thick griddle plate retains heat evenly across the entire cooking surface, and the unit accepts both natural gas and LPG connections, making it adaptable to a wide range of kitchen setups.

Key Benefits

• Combining a high-output griddle with refrigerated storage directly beneath reduces the distance staff travel between cooking and ingredient retrieval, improving speed and workflow during service.
• The 108MJ/hr thermostatic burner system maintains consistent cooking temperatures across the griddle surface, reducing the risk of hot spots and improving food quality.
• The 20mm thick griddle plate holds heat effectively, recovering temperature quickly after cold product is loaded and delivering reliable results throughout continuous cooking.
• Push-button piezo ignition allows fast, reliable lighting without the need for separate ignition tools, reducing downtime at the start of service.
• The integrated stainless steel grease drawer collects drippings in one accessible location, making end-of-service cleaning faster and more hygienic.
• Adjustable feet combined with two additional rollers allow precise levelling during installation and easy repositioning for cleaning or kitchen reconfiguration.
• Compatibility with both natural gas and LPG gives operators flexibility when installing in kitchens where one fuel type is preferred or available.
• Optional ribbed or chrome mirror plate surfaces are available, allowing operators to choose the griddle finish best suited to their menu requirements.

Key Features

• 1200mm gas griddle mounted on an integrated refrigerated base unit
• Four-burner system with a combined output of 108MJ/hr
• Thermostatic temperature control for consistent griddle surface heat management
• 20mm thick griddle plate for superior heat retention and even cooking
• Top weld sealed plates prevent grease and moisture ingress between joints
• Stainless steel grease drawer for hygienic and convenient fat collection
• Heavy-duty reinforced control knobs designed to withstand frequent commercial use
• Push-button piezo ignition for quick and reliable burner lighting
• Refrigerated base with a temperature range of 0°C to 4°C for safe ingredient storage
• Constructed from 304 stainless steel throughout
• Splashback included as standard
• Adjustable feet and two additional rollers for levelling and repositioning
• Compatible with natural gas and LPG via R 3/4 (BSP) male gas connection
• Electrical supply: 1.8A, 220-240Vac, 50Hz, 1P+N+E 3-pin 10A plug cordset fitted
• Optional ribbed or chrome mirror griddle plate available
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 999.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Thermostatic
