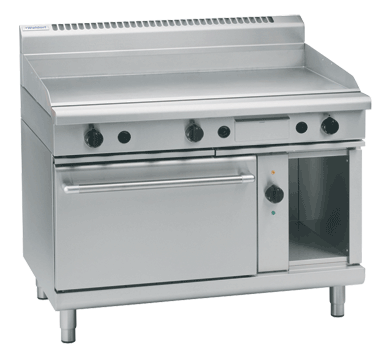

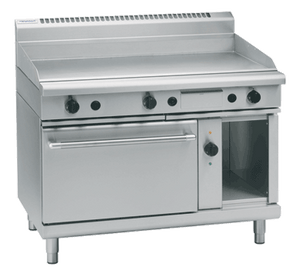

Waldorf GP8121GEC 800 Series 1200mm Gas Griddle Electric Convection Oven Range

The Waldorf GP8121GEC is a heavy-duty 1200mm combination range from the renowned 800 Series, pairing a high-output gas griddle top with a 2/1 GN electric convection oven below. Built from 304 stainless steel and manufactured in New Zealand, it is engineered for the sustained demands of busy commercial kitchens, cafes, and catering operations requiring consistent, high-volume output from a single footprint.

The griddle section delivers 108MJ/hr through a thermostatic burner system acting on a robust 20mm thick, top-weld-sealed griddle plate for excellent heat retention and even distribution across the cooking surface. The electric convection oven below provides fan-forced heat across a 150-300°C temperature range, offering multi-tray batch cooking capacity with drop-down door access, while a storage cabinet to the right-hand side adds practical workspace organisation.

Key Benefits

• High-output 108MJ/hr thermostatic gas burner system delivers rapid, controllable heat across the full 1200mm griddle surface for large-volume cooking sessions.
• A 20mm thick, top-weld-sealed griddle plate provides superior heat retention and even distribution, reducing hot spots and improving cook consistency.
• Fan-forced electric convection oven ensures uniform temperature throughout the cavity, making it reliable for simultaneous baking, roasting, and reheating across multiple trays.
• Push-button piezo ignition allows fast, safe burner lighting without a separate lighter, supporting efficient kitchen workflow.
• Stainless steel grease drawer simplifies ongoing cleaning and reduces downtime between services.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation and when repositioning for cleaning or service.
• Optional ribbed or chrome mirror griddle plate configurations allow operators to adapt the unit to specific menu requirements without purchasing a separate piece of equipment.
• Heavy-duty reinforced control knobs and a welded construction throughout are built to withstand the rigours of continuous commercial use.
• A right-hand-side storage cabinet keeps utensils and trays accessible at the point of use, reducing unnecessary movement in the kitchen.

Key Features

• 1200mm wide gas griddle oven range in the Waldorf 800 Series
• 108MJ/hr thermostatic burner system for precise, high-output gas heat control
• 20mm thick griddle plate with top-weld-sealed construction for durability and consistent heat retention
• Flame failure protection on all burners for operational safety
• Push-button piezo ignition for quick and safe burner lighting
• Stainless steel grease drawer for easy collection and disposal of cooking fats
• 2/1 GN electric convection oven with fan-forced circulation
• Oven temperature range: 150-300°C, thermostatically controlled
• Drop-down oven door for convenient tray loading and unloading
• 4 oven shelves included
• Storage cabinet located on the right-hand side of the unit
• Heavy-duty reinforced control knobs for reliable long-term operation
• Adjustable feet plus 2 additional rollers for easy levelling and repositioning
• Stainless steel splashback included
• Constructed from 304 stainless steel throughout
• 6.6kW electric power draw; 415V 3-phase connection
• Gas connection: R 3/4 (BSP) male; compatible with natural gas and LPG
• Single-phase connection also available depending on configuration
• Optional ribbed or chrome mirror griddle plate available
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
