Overview

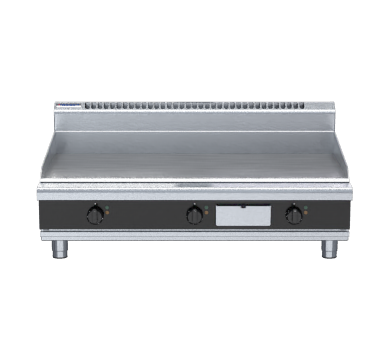

Waldorf Bold GPB8120E-B Electric Griddle 1200mm Bench-Mount Model

The GPB8120E-B from the Waldorf Bold range is a 1200mm wide, heavy-duty electric griddle engineered for high-volume commercial kitchens. Manufactured in New Zealand from 304 stainless steel, the unit draws on 16.2kW of element output delivered through a 20mm thick machined griddle plate, making it ideally suited to continuous breakfast, burger, and short-order cooking operations. Four heavy-duty bench legs with adjustable feet support the unit, providing flexible installation and straightforward service access.

The griddle accommodates a range of cooking requirements through three independently controlled heat zones spanning the left, centre, and right sections of the plate, each adjustable across a 50–300°C range. Multiple plate finish configurations are available, including the standard smooth surface, optional ribbed sections, and optional mirror-finish hard chrome plates, allowing the unit to be adapted for diverse menu styles without the need for an additional appliance.

Key Benefits

• A 20mm thick machined griddle plate delivers excellent heat retention and consistent surface temperatures, minimising hot spots and improving cook quality across extended, high-volume service periods.
• Three independently controlled heat zones across the left, centre, and right of the plate allow kitchen staff to maintain different temperature profiles simultaneously, maximising versatility and energy efficiency.
• Thermostatic control across a 50–300°C range per zone provides precise temperature management for everything from delicate items through to high-sear cooking, reducing the risk of burning and food waste.
• Top weld-sealed plates combined with an overlapping plate finish at the front and rear reduce grease traps, making end-of-service cleaning faster and more thorough.
• A removable stainless steel grease drawer captures run-off efficiently, cutting downtime between services and simplifying compliance with kitchen hygiene standards.
• Adjustable feet with a height range of 80–105mm allow the unit to be levelled on uneven floors and aligned with surrounding bench heights for ergonomic working conditions.
• Optional ribbed plate sections and mirror-finish hard chrome plates enable the griddle to be reconfigured for different cuisine styles without purchasing a separate unit.
• Large heat-resistant reinforced control knobs with easy-view settings, together with dedicated indicator lights for power and heating status, allow operators to monitor and adjust the griddle quickly during busy service.

Key Features

• 1200mm wide bench-mount electric griddle from the Waldorf Bold range
• 16.2kW total heating element output; 3-phase power supply (3P+N+E, 400–415Vac, 50/60Hz)
• 20mm thick machined griddle plate as standard
• Three independent thermostatic heat zones: left, centre, and right
• Temperature range 50–300°C per zone
• Top weld-sealed griddle plates for hygienic, easy-clean construction
• Overlapping plate finish at front and rear to minimise grease ingress
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Splash guards on sides and rear fabricated from 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel
• Welded hob surround constructed from 1.5mm 304 stainless steel, finished with a bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Removable stainless steel grease drawer
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Four bench legs, 63mm diameter, formed from 1.2mm 304 stainless steel with a heavy-duty rating
• Adjustable feet with height range of 80–105mm
• Default colour is black; other colour options available
• Built in New Zealand
• 24-month warranty
• Packed weight: 260kg; unit weight: 340kg
• Overall dimensions: 1200mm (W) x 805mm (D) x 530mm (H)

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
