Overview

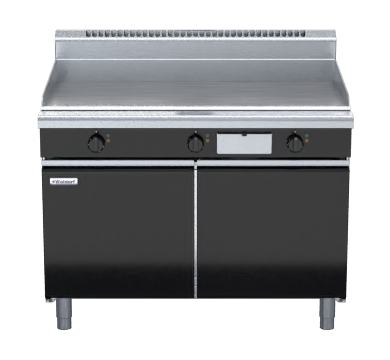

Waldorf Bold GPB8120E-CD 1200mm Electric Griddle with Cabinet Base

The Waldorf Bold GPB8120E-CD is a 1200mm electric griddle mounted on a fully modular cabinet base, purpose-built for high-volume commercial kitchens. Delivering 16.2kW of power across a 20mm thick machined griddle plate, it provides consistent, controllable heat across three independent temperature zones, making it equally at home cooking breakfasts, burgers, seafood and more through a busy service.

Constructed from 304 stainless steel throughout and finished in Waldorf's signature Bold style, the GPB8120E-CD is designed for straightforward installation, daily cleaning and long-term serviceability. Optional ribbed plate sections and mirror-finish hard chrome plates allow the unit to be configured for different menu requirements, while the double-skin cabinet base offers practical storage and can be integrated into a suite of matching equipment.

Key Benefits

• Three independent heat zones with separate left, centre and right thermostats allow different foods to be cooked simultaneously at different temperatures, maximising plate utilisation during busy service.
• A 20mm thick machined griddle plate stores and distributes heat evenly, reducing hot spots and delivering consistent cooking results across the full 1200mm surface.
• Overlapping plate finish at the front and rear, combined with a stainless steel grease drawer and grease channel, makes end-of-service cleaning fast and straightforward.
• Optional ribbed plate sections or mirror-finish hard chrome plates let operators configure the griddle surface to suit their specific menu without replacing the whole unit.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for power and heating give staff clear, reliable control even in a fast-paced kitchen environment.
• The fully modular double-skin cabinet base integrates with other Waldorf Bold units for a matched suite finish, and accepts an optional GN 1/1 racking kit for flexible in-service storage.
• Adjustable feet and two additional rollers are included, making installation, repositioning and routine servicing easier without specialised equipment.
• Top-welded sealed plates and a welded hob surround with stainless steel bull nose reduce food and liquid ingress, protecting the unit's internals and extending service life.

Key Features

• 1200mm wide electric griddle on cabinet base
• 16.2kW total heating element output; 400-415Vac, 3P+N+E, 50/60Hz
• 20mm thick machined griddle plate as standard
• Three independent thermostatic control zones: separate left, centre and right heat zones
• Temperature range 50-300°C per zone
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Top weld sealed griddle plates
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• 2.5mm thick 304 stainless steel splash guards to sides and rear
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.0mm thick stainless steel grease channel
• Stainless steel grease drawer
• Overlapping plate finish at front and rear for easy cleaning
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Fully modular cabinet base for matched suite installation
• Double-skin cabinet construction with 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Adjustable feet and 2 additional rollers included
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays
• Cabinet accommodates up to eight 65mm GN 1/1 containers
• Default finish is black; additional colour options available
• Manufactured in New Zealand
• 304 stainless steel construction throughout
• Splashback included as standard
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
