Overview

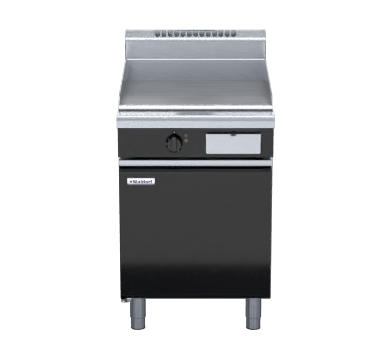

Waldorf Bold GPB8600E-CD 600mm Electric Griddle with Cabinet Base

The Waldorf Bold GPB8600E-CD is a 600mm electric griddle unit seated on a fully enclosed cabinet base, purpose-built for the rigours of high-volume commercial kitchen operation. Manufactured in New Zealand from 304 stainless steel throughout, it draws on 7.2kW of element power delivered through a 20mm thick machined griddle plate, providing consistent, even heat suited to breakfast service, burgers, grilled proteins and a broad range of other menu items.

This unit forms part of Waldorf's fully modular Bold range, allowing it to be paired with matching equipment to create a cohesive kitchen suite. The enclosed cabinet base is constructed with a twin-wall stainless steel design, rides on heavy-duty legs with adjustable feet, and the griddle surface is available with optional ribbed or hard chrome mirror plate finishes to accommodate varied cooking requirements.

Key Benefits

• A 20mm thick machined griddle plate retains and distributes heat evenly across the entire cooking surface, minimising hot spots and improving consistency across a full service period.
• A single thermostatic control zone spanning 50-300°C gives operators precise temperature management across a wide variety of menu items.
• Overlapping plate finish at the front and rear, together with a dedicated stainless steel grease drawer, allows fast and thorough cleaning between service periods.
• Optional ribbed plate sections or hard chrome mirror plate finishes let the unit be configured for different cooking styles without the need for an additional piece of equipment.
• The fully modular cabinet base, built with a two-layer 304 stainless steel construction on both its inner and outer surfaces using 0.9mm sheet, integrates seamlessly into a matched suite for a consistent and professional kitchen layout.
• Heavy-duty heat-resistant reinforced control knobs with easy-view settings, along with indicator lights for power and heating status, support operational safety and usability throughout a busy service.
• Adjustable feet and two included rollers make installation, repositioning and routine servicing straightforward, helping to minimise kitchen downtime.
• Top weld sealed plates and side and rear splash guards fabricated from 2.5mm thick 304 stainless steel protect adjacent surfaces and streamline end-of-service cleaning.
• An optional GN 1/1 four-position racking kit for the cabinet base provides practical below-counter storage, improving workflow efficiency in space-constrained kitchens.

Key Features

• 600mm wide electric griddle mounted on a fully enclosed cabinet base
• 7.2kW heating elements with a single temperature control zone
• 20mm thick machined griddle plate as standard
• Thermostatic control with a 50-300°C temperature range
• Large heat-resistant reinforced control knob with easy-view settings
• Indicator lights for power and heating status
• Top weld sealed griddle plates
• Overlapping plate finish at front and rear for simplified cleaning
• Side and rear splash guards in 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel
• Stainless steel grease drawer
• Welded hob surround incorporating a 1.5mm 304 stainless steel rolled-edge front profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Optional ribbed plate sections available
• Optional mirror finish hard chrome plates available
• Cabinet base featuring a twin-wall design with 0.9mm 304 stainless steel on both internal and external faces
• 63mm diameter heavy-duty legs in 1.2mm 304 stainless steel fitted with adjustable feet
• Two additional rollers included to assist with movement and repositioning
• Optional GN 1/1 four-position racking kit for the cabinet base
• Fully modular construction compatible with matched suite configuration
• Default colour is black; additional colour options available
• Electrical supply: 1P+N+E, 230-240V AC, 30A, 50/60Hz
• Splashback included as standard
• Constructed from 304 stainless steel throughout
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 53
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2kW
• Temperature Control: Thermostatic
