Overview

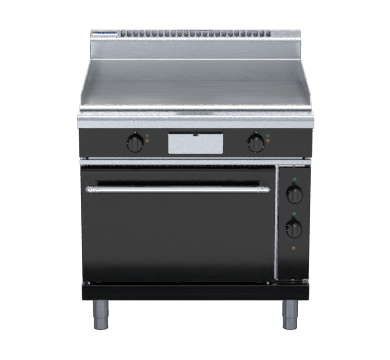

Waldorf Bold GPB8910EC 900mm Electric Griddle Convection Oven Range

The Waldorf Bold GPB8910EC is a 900mm wide electric range that pairs a full-width smooth griddle top with a GN 2/1 fan-forced convection oven, purpose-built for high-output commercial kitchens. Constructed in New Zealand from 304 stainless steel throughout, the unit delivers consistent, controllable cooking performance across both surfaces, with dual thermostatic griddle zones and a thermostatically controlled oven operating between 150 and 300°C.

Engineered for reliability and ease of use in demanding environments, the GPB8910EC incorporates a vitreous enamelled oven liner, a 200mm heavy-duty circulation fan, a drop-down welded frame oven door, and reinforced control knobs. The unit ships in Waldorf's signature black finish with custom colour options available, and is backed by a 24-month warranty.

Key Benefits

• Dual independent griddle heat zones allow simultaneous cooking at different temperatures, improving service flexibility during busy periods.
• Fan-forced convection oven with a 200mm circulation fan ensures even heat distribution across all rack positions, reducing hot spots and improving batch cooking consistency.
• GN 2/1 oven capacity with four rack positions accommodates full-size gastronorm trays, maximising throughput for baking, roasting and reheating.
• 20mm thick machined griddle plates retain and distribute heat evenly across the cooking surface, reducing temperature recovery time between loads.
• Vitreous enamelled oven interior and door inner panel are highly resistant to grease and food residue, making routine cleaning faster and more thorough.
• Overlapping plate finish at the front and rear of the griddle, plus a stainless steel grease drawer and channel, simplify day-to-day grease management.
• Adjustable feet and two additional rollers make installation and repositioning straightforward, with minimal disruption to kitchen operations.
• Heavy-duty spring hinge system on the drop-down oven door ensures long service life under repeated daily use in commercial environments.

Key Features

• 900mm overall width; 805mm depth; 1130mm height
• Galvanised steel chassis with a welded hob surround formed from 1.5mm 304 stainless steel with a bull nose profile
• Splashback and hob sides in 1.2mm 304 stainless steel; front panels and oven side panels fabricated from 0.9mm 304 stainless steel
• 150mm legs constructed from 63mm diameter 304 stainless steel tube at 1.2mm gauge, each fitted with adjustable feet, plus two additional rollers supplied
• 20mm thick machined smooth griddle top plates as standard; optional ribbed plate sections and optional mirror-finish hard chrome plates available
• Dual thermostatic control zones for independent left and right griddle heat management
• 2.5mm thick 304 stainless steel griddle splash guards on sides and rear
• 2.0mm thick grease channel with stainless steel grease drawer; overlapping plate edges at front and rear for easy cleaning
• GN 2/1 electric convection oven with four-position racking
• 12kW total heating elements (6.5kW oven heating elements); 100W heavy-duty motor driving a 200mm diameter circulation fan
• Cast iron even-heat oven sole plate for consistent base temperature
• Fully welded oven liner finished with vitreous enamel for durability and easy cleaning
• High-density fibreglass oven insulation for energy efficiency and cool exterior surfaces
• Welded frame drop-down oven door with heavy-duty spring hinge system
• Oven door outer skin in 0.9mm 304 stainless steel; inner door panel press-formed from 1.0mm steel with a vitreous enamel finish
• Low-heat stainless steel door handle mounted on cast metal brackets
• Two chrome wire oven racks supplied as standard; heavy-duty easy-remove chrome wire rack supports
• Heavy-duty reinforced control knobs; analogue temperature display
• Oven temperature range 150–300°C; thermostatic control throughout
• Total power rating 18.6kW; 3P+N+E; 400–415Vac; 50/60Hz
• Default colour black; additional custom colour options available
• Splashback included as standard
• Manufactured in New Zealand; 24-month warranty
• Compatible with the broader Waldorf Bold range

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 18.6kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
