Overview

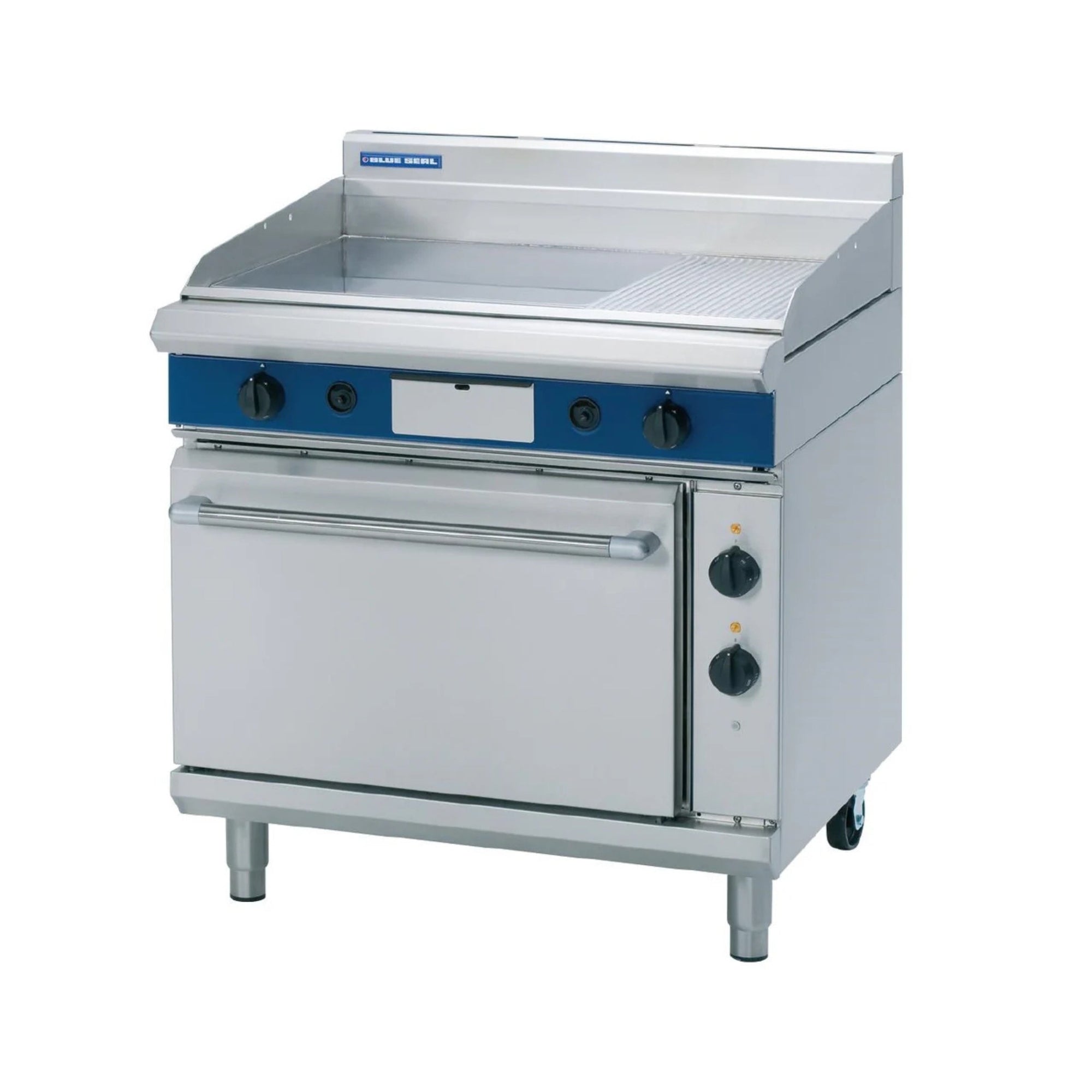

Blue Seal GPE506 Evolution Series 900mm Gas Griddle Electric Static Oven Range

The Blue Seal GPE506 is a heavy-duty commercial cooking range from the Evolution Series, combining a full-width 900mm thermostatic gas griddle with an integrated 2/1 GN electric static oven. Constructed from 304 stainless steel and built in New Zealand, it is engineered for demanding restaurant, café, hotel, catering, and high-volume hospitality environments that require versatile, consistent cooking performance across multiple applications simultaneously.

The 20mm thick smooth mild steel griddle plate sits atop an 80MJ/hr thermostatic burner system, delivering rapid heat recovery and even surface temperatures across the entire cooking zone, while the electric static oven beneath provides stable, accurate heat for roasting, baking, reheating, and batch cooking. Available in Natural Gas or LPG configurations, the GPE506 integrates seamlessly into complete Blue Seal Evolution Series kitchen suites.

Key Benefits

• Dual-fuel design lets kitchen teams run high-output gas griddle cooking and precise electric oven baking concurrently, maximising throughput during busy service periods.
• Thermostatic temperature control on both the griddle (90–300°C via two thermostats) and the oven (50–320°C) ensures consistent results and reduces the risk of overcooking during volume service.
• The 20mm thick griddle plate retains and distributes heat evenly, minimising temperature recovery time between batches of burgers, steaks, eggs, seafood, and breakfast items.
• Flame failure protection on all burners provides an important safety safeguard in fast-paced commercial kitchen environments.
• Adjustable feet and two additional rear rollers make repositioning straightforward and allow precise levelling on uneven kitchen floors.
• Push-button piezo ignition enables fast, reliable lighting without the need for matches or lighters, reducing downtime at the start of service.
• The stainless steel grease drawer and top weld-sealed plates simplify end-of-service cleaning and help maintain hygiene standards.
• The vitreous enamel-lined oven interior is easy to wipe down and resists staining, supporting food safety compliance and reducing deep-clean time.
• Modular Evolution Series compatibility allows the GPE506 to be paired with other Blue Seal units to build a cohesive, professional kitchen suite tailored to menu requirements.

Key Features

• 900mm wide gas griddle mounted on an electric static oven range
• 80MJ/hr thermostatic burner system across six burners
• Two independent 90–300°C griddle thermostats for zone control
• 50–320°C thermostatic electric static oven control
• 20mm thick smooth mild steel griddle plate for superior heat retention and distribution
• Top weld-sealed griddle plates for structural integrity and hygiene
• Flame failure protection on all gas burners
• Push-button piezo ignition
• 2/1 GN capacity electric static oven with two shelves
• Oven cavity lined with welded vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame and cool-touch stainless steel handle
• Stainless steel grease drawer for easy fat collection and removal
• Heavy-duty reinforced control knobs
• 165mm splashback included
• Adjustable feet plus two additional rear rollers for easy repositioning
• 304 stainless steel construction throughout
• Available in Natural Gas or LPG configurations (R 3/4 BSP male gas connection)
• Single-phase electrical supply: 220–240V, 1P+N+E, 50Hz, 6.5kW
• Optional ribbed mild steel or chrome mirror griddle plate available
• Freestanding, freestanding installation with no undershelf (integrated oven base)
• Part of the modular Blue Seal Evolution Series for kitchen suite integration
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 218
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
