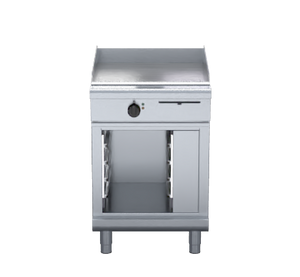

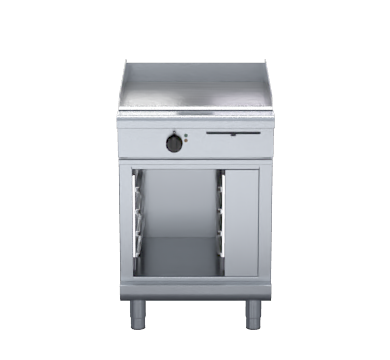

Waldorf GPL8600E-CB 800 Series 600mm Electric Griddle Low Back Cabinet Base

The Waldorf GPL8600E-CB is a 600mm electric griddle from the 800 Series, mounted on a fully enclosed cabinet base for a clean, professional kitchen finish. Powered by 7.2kW heating elements and fitted with a 20mm thick machined griddle plate, it offers a single temperature control zone across a 50 to 300°C thermostat range, making it well suited to high-volume breakfast service, burgers, and other flat-top cooking applications.

Constructed throughout in 304 stainless steel, the GPL8600E-CB is built for long-term durability and straightforward daily maintenance. The fully modular cabinet base integrates neatly into matched suite configurations, while top-weld sealed plates, overlapping plate edges, and a stainless steel grease drawer all contribute to fast, efficient cleaning between service periods. Optional ribbed or chrome mirror plate finishes allow the unit to be specified for a wider range of menu requirements. Manufactured in New Zealand and backed by a 24-month warranty.

Key Benefits

• Single temperature control zone with a 50 to 300°C thermostat range gives operators precise, consistent heat management across the entire cooking surface.
• 20mm thick machined griddle plate retains and distributes heat evenly, reducing hot spots and supporting high-throughput cooking without temperature recovery delays.
• Plate edges that overlap at both the front and rear channel grease efficiently away from the cooking surface, simplifying end-of-service cleaning and reducing turnaround time between shifts.
• Stainless steel grease drawer collects runoff in a contained, removable tray, keeping the work area tidy and making waste disposal quick and hygienic.
• Fully modular cabinet base constructed with a two-layer 304 stainless steel shell integrates neatly into a matched suite and provides robust, insulated storage beneath the cooking surface.
• Adjustable feet and two additional rollers make installation, repositioning, and routine servicing easier without requiring special equipment.
• Optional ribbed plate sections or mirror-finish hard chrome plates extend the unit's versatility to grilled meats, fish, and presentations that benefit from sear marks or a non-stick surface.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for power and heating status support accurate operation even in fast-paced, busy kitchen environments.

Key Features

• 600mm wide electric griddle on enclosed cabinet base, 800 Series platform
• 7.2kW heating elements; single-phase 230-240V AC, 30A, 50/60Hz supply
• 20mm thick machined griddle plate as standard
• Single temperature control zone, 50-300°C thermostatic control
• Top-weld sealed griddle plates for a flush, hygienic cooking surface
• Plate edges overlap at the front and rear to direct grease away from the cooking surface and ease cleaning
• Side and rear splash guards fabricated from 304 stainless steel at 2.5mm thickness
• 2.0mm thick grease channel directing runoff to grease drawer
• Stainless steel grease drawer for contained, easy-access waste collection
• Welded hob surround constructed from 304 stainless steel at 1.5mm, finished with a bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Cabinet base featuring an inner and outer shell each in 0.9mm 304 stainless steel
• Fully modular cabinet base designed to match suite finish
• 63mm diameter heavy-duty legs in 304 stainless steel formed at 1.2mm gauge, fitted with adjustable feet
• Two additional rollers supplied for ease of movement and installation
• Large, heat-resistant reinforced control knob with easy-view settings
• Indicator lights for power and heating status
• Optional GN 1/1 four-position racking kit for cabinet base
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 53
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2kW
• Temperature Control: Thermostatic
