Overview

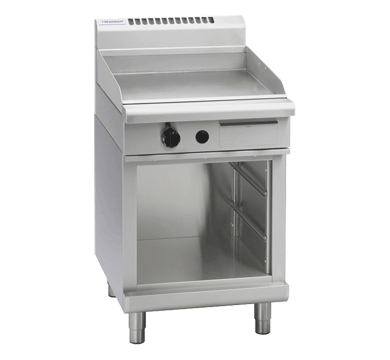

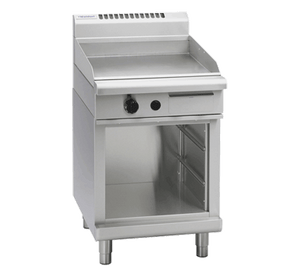

Waldorf GPL8600G-CB 800 Series 600mm Gas Griddle Low Back Version Cabinet Base

The Waldorf GPL8600G-CB is a 600mm wide gas griddle from the 800 Series, mounted on a fully enclosed cabinet base for a robust, self-contained cooking station. Designed and built in New Zealand from 304 stainless steel, it delivers a 53 MJ/h thermostatic burner system across two burners with a temperature range of 100–290°C, making it well suited to high-volume breakfast service, burger cookery, and continuous short-order cooking.

A 20mm thick smooth griddle plate retains and distributes heat evenly across the cooking surface, while top weld sealed plates prevent grease and food debris migrating between joints. Push-button piezo ignition, heavy-duty reinforced control knobs, a stainless steel grease drawer, and adjustable feet with two additional rollers combine to support fast, efficient kitchen operation. Optional ribbed or chrome mirror plate finishes are available to suit specific menu requirements.

Key Benefits

• Consistent, even heat across a 20mm thick griddle plate reduces hot spots and improves cooking results across the full surface.
• Thermostatic temperature control between 100–290°C allows precise adjustment for different proteins, produce and cooking stages.
• Push-button piezo ignition speeds up start-up and eliminates the need for a separate lighter, reducing downtime during busy service.
• Top weld sealed plates prevent grease and food particles from collecting in joins, making end-of-service cleaning faster and more thorough.
• A dedicated stainless steel grease drawer channels and collects fat away from the burner system, simplifying clean-down and supporting hygiene compliance.
• Adjustable feet combined with two additional rollers allow the unit to be levelled on uneven floors and repositioned without heavy lifting.
• An enclosed cabinet base provides useful undercounter storage in a compact 600mm footprint, maximising usable space in tight kitchen layouts.
• Optional ribbed or chrome mirror plate configurations let operators tailor the unit to specific menu needs without purchasing a separate appliance.
• Dual LPG and natural gas compatibility provides installation flexibility across different sites and gas supply arrangements.

Key Features

• 600mm wide gas griddle mounted on an enclosed cabinet base with cabinet door
• 800 Series construction in 304 stainless steel throughout
• 20mm thick smooth griddle plate for superior heat retention and even cooking
• 53 MJ/h total burner output across 2 burners (14.7 kW)
• Thermostatic burner control system with temperature range of 100–290°C
• Top weld sealed griddle plates prevent grease ingress at joints
• Push-button piezo ignition on each burner
• Heavy-duty reinforced control knobs for durability under continuous use
• Stainless steel grease drawer for easy fat collection and removal
• Low back splashback included as standard
• Adjustable feet for levelling, plus 2 additional rollers for repositioning
• Compatible with both natural gas and LPG; R 3/4 (BSP) male gas connection
• Optional ribbed plate or chrome mirror plate available as alternatives to standard smooth surface
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 53
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 14.7 kW
• Temperature Control: Thermostatic
