Overview

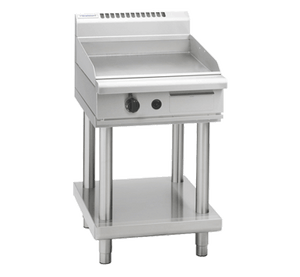

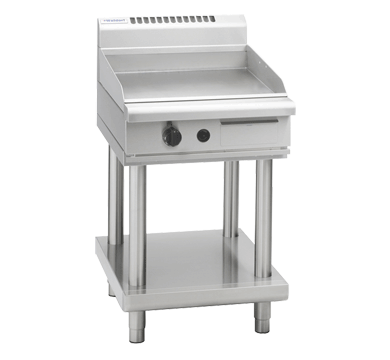

Waldorf GPL8600G-LS 800 Series 600mm Gas Griddle Low Back Version – Leg Stand

The Waldorf GPL8600G-LS is a 600mm wide gas griddle from the heavy-duty 800 Series, mounted on a leg stand for a stable, self-contained cooking station. Constructed from 304 stainless steel and made in New Zealand, it features a 20mm thick smooth griddle plate with top weld sealed construction, delivering consistent, even heat across the entire cooking surface for high-volume breakfast service, burgers, seafood and more.

Powered by a 53 MJ/hr thermostatic burner system across two burners, the unit operates across a temperature range of 100–290°C with precise thermostat control. Push-button piezo ignition, heavy-duty reinforced control knobs, a stainless steel grease drawer, adjustable feet with two additional rollers, and an undershelf combine to make this griddle exceptionally practical for busy commercial kitchens.

Key Benefits

• The 20mm thick griddle plate retains and distributes heat evenly, reducing hot spots and ensuring consistent cooking results across the full surface.
• Thermostatic temperature control between 100–290°C gives kitchen staff precise, repeatable heat settings to suit a wide variety of menu items.
• Push-button piezo ignition allows for quick, tool-free startup during busy service periods.
• The stainless steel grease drawer captures fats and oils cleanly, making between-service cleaning faster and reducing fire risk.
• Top weld sealed plates prevent grease and debris from migrating between plate layers, simplifying deep cleaning and extending service life.
• Adjustable feet combined with two integrated rollers make it easy to level the unit on uneven floors and reposition it for cleaning or reconfiguration.
• Accepts both natural gas and LPG connections via a 3/4 BSP male fitting, offering flexible installation across different kitchen setups.
• Optional ribbed or chrome mirror plate upgrades are available, allowing operators to adapt the griddle surface to specific cooking applications without replacing the unit.

Key Features

• 600mm wide smooth griddle plate on a freestanding leg stand with undershelf
• 20mm thick griddle plate for superior heat retention and even cooking surface temperature
• Top weld sealed plate construction prevents grease ingress between layers
• 53 MJ/hr thermostatic burner system with 2 burners and a temperature range of 100–290°C
• Push-button piezo ignition for reliable, tool-free lighting
• Heavy-duty reinforced control knobs rated for continuous commercial use
• Stainless steel grease drawer for contained, hygienic fat collection
• Adjustable feet and 2 additional rollers for levelling and repositioning
• 14.7 kW total power output
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Constructed from 304 stainless steel throughout
• Low back version design for counter or pass integration
• Optional ribbed or chrome mirror plate available
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 53
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 14.7 kW
• Temperature Control: Thermostatic
