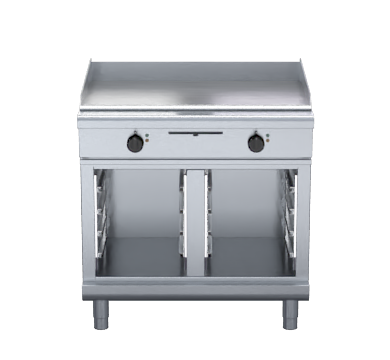

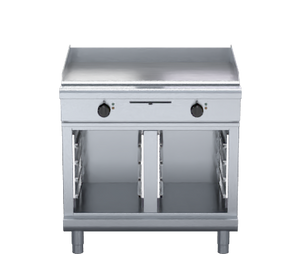

Waldorf GPL8900E-CB 800 Series 900mm Electric Griddle Low Back Cabinet Base

The Waldorf GPL8900E-CB is a 900mm electric griddle from the heavy-duty 800 Series, mounted on a fully enclosed cabinet base and built for sustained, high-volume cooking in professional commercial kitchens. The unit features a 20mm thick machined griddle plate powered by 12kW heating elements across a single temperature control zone, with a thermostatic range of 50 to 300°C, making it equally capable across breakfast service, burger cookery, and general flat-top grilling.

Constructed from 304 stainless steel throughout, the GPL8900E-CB incorporates top weld sealed plates, a stainless steel grease drawer, and overlapping plate edges front and rear for streamlined cleaning. The cabinet base is fully modular for suite integration, features a double-skin interior and exterior, and ships with adjustable feet and two additional rollers for flexible placement. Optional ribbed plate sections and mirror-finish hard chrome plates are available to suit different menu requirements.

Key Benefits

• The 20mm thick machined griddle plate retains and distributes heat evenly, reducing hot spots and delivering consistent results across the full cooking surface during peak service.
• Thermostatic temperature control from 50 to 300°C allows precise adjustment to suit different proteins, vegetables and cooking styles without guesswork.
• Top weld sealed plates and overlapping front and rear plate edges minimise grease ingress and make end-of-service cleaning faster and more thorough.
• The stainless steel grease drawer channels runoff away from the cooking zone and pulls out easily for quick emptying and cleaning between services.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for power and heating status let staff monitor and adjust the unit at a glance.
• Adjustable feet and two additional rollers make repositioning the unit straightforward during kitchen reconfiguration or deep cleaning.
• The fully modular cabinet base with double-skin 304 stainless steel construction integrates neatly into a matched suite and offers optional GN 1/1 four-position racking for additional storage capacity.
• Optional ribbed plate sections and mirror-finish hard chrome plates allow the unit to be specified for a broader range of menu applications without replacing the entire griddle.
• New Zealand manufacture combined with a 24-month warranty provides confidence in build quality and long-term support for busy commercial operations.

Key Features

• 900mm wide electric griddle on enclosed cabinet base
• 12kW heating elements; 400-415V AC, 3P+N+E, 50/60Hz
• 20mm thick machined griddle plate as standard
• Single temperature control zone with thermostatic range 50-300°C
• Separate left and right heat zone thermostats
• Indicator lights for power and heating status
• Large heat-resistant reinforced control knobs with easy-view settings
• Top weld sealed griddle plates
• Overlapping plate finish at front and rear for easy cleaning
• Splash guards on sides and rear fabricated from 2.5mm thick 304 stainless steel
• Grease channel in 2.0mm steel construction
• Stainless steel grease drawer
• Welded hob surround incorporating a bull nose profile formed from 1.5mm 304 stainless steel
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Fully modular cabinet base for matched suite configuration
• Double-skin cabinet construction: both inner and outer skins in 0.9mm 304 stainless steel
• Legs: 63mm diameter, fabricated from 1.2mm 304 stainless steel with heavy-duty construction and adjustable feet
• Two additional rollers included for ease of movement
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays, accommodating a maximum of eight 65mm-deep GN 1/1 pans
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Low back (splashback) version
• 304 stainless steel construction throughout
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
