Overview

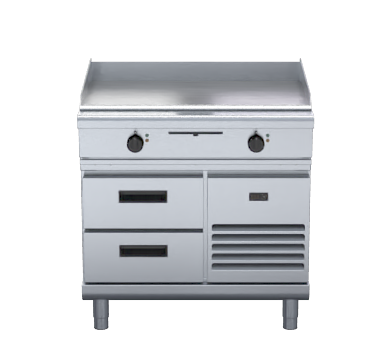

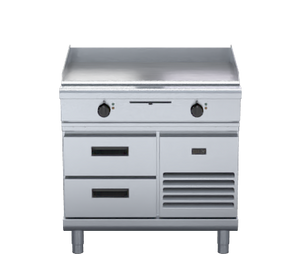

Waldorf GPL8900E-RB 800 Series 900mm Electric Griddle Low Back Version with Refrigerated Base

The Waldorf GPL8900E-RB pairs a 900mm electric griddle with a self-contained refrigerated base, forming part of the Waldorf 800 Series modular suite engineered for high-volume commercial kitchens. The griddle delivers 12kW of power through a 20mm thick machined plate with a single temperature control zone, while the refrigerated base provides a -2°C to +8°C tropical-climate-rated storage solution positioned directly beneath the cooking surface.

Built from 304 stainless steel throughout, this unit incorporates two GN 1/1 refrigerated drawers, a ventilated R134a refrigeration system with automatic defrost, and a front-accessible condensing unit for straightforward servicing. By combining robust griddle construction with integrated cold storage, the GPL8900E-RB reduces bench space requirements and keeps perishable ingredients within reach during service.

Key Benefits

• Integrated refrigerated base keeps perishable ingredients within arm's reach of the cooking surface, reducing travel time and improving service efficiency.
• 12kW electric heating with a 20mm thick machined griddle plate delivers consistent, even heat across the entire cooking surface for uniform results.
• Single temperature control zone simplifies operation, allowing staff to manage the entire griddle surface with one adjustment.
• Tropical-climate-rated refrigeration (-2°C to +8°C) maintains safe food temperatures even in demanding, heat-intensive kitchen environments.
• Automatic defrost and automatic evaporation of defrost water minimise manual maintenance tasks and reduce downtime between services.
• The condensing unit can be withdrawn from the front of the cabinet, allowing servicing to be carried out without moving the appliance away from the wall.
• Top weld-sealed plates and overlapping plate edges at the front and rear simplify cleaning and reduce grease build-up.
• Optional ribbed plate sections and mirror-finish hard chrome plates allow the unit to be configured for different menu requirements.
• Heavy-duty reinforced control knobs and tool-free replaceable magnetic drawer gaskets contribute to long-term durability and ease of upkeep.

Key Features

• 900mm wide electric griddle mounted on a matching self-contained refrigerated base unit
• 12kW heating elements; power supply 3-phase, 400-415V AC, 50/60Hz (3P+N+E)
• 20mm thick machined griddle top plate as standard
• Single temperature control zone across the full griddle surface
• Top weld-sealed griddle plates for hygienic, easy-clean construction
• Overlapping plate finish at front and rear minimises grease trapping
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Side and rear splash guards fabricated from 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel with stainless steel grease drawer
• Welded hob surround constructed from 1.5mm 304 stainless steel, finished with a bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Heavy-duty reinforced control knobs
• Adjustable feet plus 2 additional rollers for repositioning
• Refrigerated base operates on R134a refrigerant with a ventilated system
• Temperature range -2°C to +8°C; tropical climate rated
• Two GN 1/1 refrigerated drawers, each accommodating 100mm deep pans, running on robust European-made telescopic guides
• Drawer gaskets are magnetic and can be swapped out without any tools; cabinet insulation is 50mm fully foamed CFC-free construction throughout
• 304 stainless steel exterior and interior on refrigerated base
• Anti-corrosion treated evaporator
• No condensate drain required
• Digital electronic thermostat with automatic defrost and automatic defrost water evaporation
• Condensing unit removable through the front of the unit for servicing
• Legs are 63mm diameter, formed from 1.2mm 304 stainless steel, heavy-duty rated, with adjustable feet
• Suite-matched modular design compatible with other Waldorf 800 Series equipment
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
