Overview

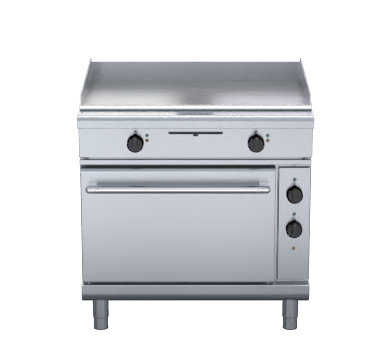

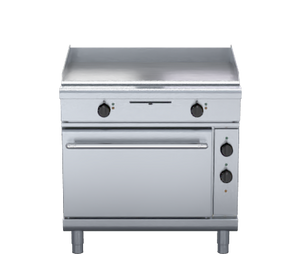

Waldorf GPL8910E 800 Series 900mm Electric Griddle Static Oven Range Low Back Version

The Waldorf GPL8910E is a heavy-duty 900mm electric griddle range from the renowned 800 Series, combining a full-width smooth griddle plate with a 2/1 GN electric static oven below. Engineered and manufactured in New Zealand to exacting commercial standards, it is built from 304 stainless steel throughout and sized for high-volume professional kitchens that demand consistent, reliable output across both cooking zones.

The griddle features dual independent thermostatic heat zones for precise left and right temperature management, while the oven cavity is fully welded and vitreous enamelled for easy cleaning and even heat retention. A cast iron oven sole plate ensures stable, uniform base heat, and practical touches such as adjustable feet, integrated rollers, a stainless steel grease drawer, and reinforced control knobs make this unit straightforward to install, operate, and maintain day to day.

Key Benefits

• Dual independent griddle heat zones let operators cook different proteins or products simultaneously at different temperatures, reducing wait times and improving service flow.
• The 2/1 GN oven capacity with four-position racking accommodates full-size gastronorm pans, maximising throughput for roasting, baking, and holding without the need for a separate oven.
• Vitreous enamelled oven liner and door inner panel resist grease absorption and wipe down quickly, cutting cleaning time at the end of service.
• A cast iron oven sole plate distributes heat evenly across the base of the cavity, minimising hot spots and delivering consistent results for baked goods and roasts alike.
• 20mm thick machined griddle top plates retain heat efficiently and provide a flat, even cooking surface that suits high-volume breakfast, burger, and protein cookery.
• Adjustable feet combined with two additional rollers make installation and repositioning straightforward, and the overlapping plate design at front and rear simplifies griddle cleaning.
• Heavy-duty spring-hinge drop-down door with a stay-cool stainless steel handle allows safe, one-hand oven access during busy service without risk of burns.
• High-density fibreglass oven insulation reduces heat loss to the surrounding environment, improving energy efficiency and keeping the kitchen cooler.
• A 24-month warranty and New Zealand manufacture back this unit with genuine after-sales support appropriate for a demanding commercial environment.

Key Features

• 900mm wide unit within the Waldorf 800 Series range, low back version
• Galvanised steel chassis with welded hob surround in 1.5mm 304 stainless steel bull nose
• Splashback and hob sides in 1.2mm 304 stainless steel; front panels and oven sides in 0.9mm 304 stainless steel
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet, plus two additional rollers
• 20mm thick machined smooth griddle top plates as standard; optional ribbed plate sections and optional mirror-finish hard chrome plates available
• Dual independent thermostatic griddle control zones for separate left and right heat management
• 2.5mm thick 304 stainless steel splash guards on griddle sides and rear; 2.0mm thick grease channel
• Stainless steel grease drawer for easy collection and disposal
• Overlapping plate design at front and rear of griddle for straightforward cleaning
• 2/1 GN electric static oven with four-position racking
• 6.5kW oven heating elements; total unit heating element rating 12kW
• Fully welded vitreous enamelled oven liner for durability and easy cleaning
• Cast iron even-heat oven sole plate for consistent base temperature
• Heavy-duty easy-remove heavy wire chrome rack supports
• Supplied with two chrome wire oven racks
• Welded frame drop-down oven door with heavy-duty spring hinge system
• 0.9mm 304 stainless steel oven door outer; 1.0mm press-formed vitreous enamelled door inner
• High-density fibreglass oven insulation
• Stay-cool stainless steel door handle with cast metal handle mounts
• Heavy-duty reinforced control knobs throughout
• Single-phase electrical connection
• Analogue temperature controls; oven temperature range 150-300°C
• Stainless steel splashback included
• Manufactured in New Zealand; 304 stainless steel construction throughout
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Temperature Control: Thermostatic
• Display Type: Analog
