Overview

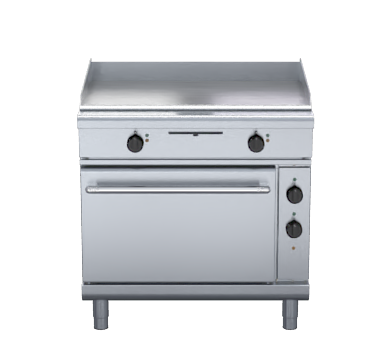

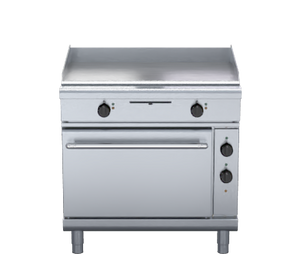

Waldorf GPL8910EC 800 Series 900mm Electric Griddle Convection Oven Range Low Back Version

The Waldorf GPL8910EC is a 900mm wide electric griddle and convection oven range from the renowned 800 Series, engineered in New Zealand for demanding commercial kitchen environments. It combines a full-width smooth griddle plate with dual independent heat zones on top and a powerful GN 2/1 electric convection oven below, delivering versatile, high-output cooking across a single footprint.

Built on a galvanised steel chassis with extensive use of 304 stainless steel throughout, the GPL8910EC is designed for durability, ease of cleaning and straightforward servicing. The vitreous enamelled oven liner, cast iron sole plate, heavy-duty circulation fan and welded drop-down door with spring hinge system combine to produce consistent, even heat for baking, roasting and batch cooking across two included chrome wire oven racks.

Key Benefits

• Dual independent thermostatic griddle zones allow simultaneous cooking at different temperatures, improving menu flexibility and throughput during peak service.
• Fan-forced convection oven with a 200mm circulation fan ensures even heat distribution across all rack positions, reducing hot spots and delivering consistent results for baking and roasting.
• GN 2/1 oven capacity with four rack positions supports large batch cooking, making the unit well suited to cafes, restaurants and production kitchens.
• 20mm thick machined griddle plates provide excellent heat retention and a stable cooking surface, with an overlapping front-to-rear finish that simplifies cleaning.
• Vitreous enamelled oven liner and door inner resist staining and grease build-up, cutting down on cleaning time between service periods.
• Adjustable feet and two additional rollers make positioning and levelling the unit straightforward during installation or kitchen reconfiguration.
• Stay-cool stainless steel door handle with cast metal mounts allows safe, comfortable oven access even during extended high-temperature operation.
• Heavy-duty reinforced control knobs and a welded frame drop-down door with spring hinge system are built to withstand the rigours of continuous commercial use.
• Optional ribbed plate sections and mirror-finish hard chrome plates allow the griddle configuration to be tailored to specific menu requirements.

Key Features

• 900mm wide electric griddle and convection oven range, 800 Series low back version
• Galvanised steel chassis providing a robust structural foundation
• Welded hob surround in 1.5mm 304 stainless steel with bull nose edge
• Splashback and hob sides constructed from 1.2mm 304 stainless steel
• Front panels and oven sides in 0.9mm 304 stainless steel
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Two additional rollers supplied to assist with movement and positioning
• Griddle: 20mm thick machined smooth top plates as standard
• Optional ribbed plate sections available for the griddle
• Optional mirror-finish hard chrome griddle plates available
• Dual independent thermostatic griddle heat zones (left and right)
• 2.5mm thick 304 stainless steel griddle splash guards to sides and rear
• 2.0mm thick grease channel with stainless steel grease drawer
• Overlapping plate finish at front and rear for easier cleaning
• Convection oven: GN 2/1 capacity with four rack positions
• 12kW total heating elements (6.5kW oven heating elements)
• 100W heavy-duty oven circulation motor
• 200mm diameter heavy-duty circulation fan for even heat distribution
• Cast iron even-heat oven sole plate
• Fully welded oven liner with vitreous enamel lining
• High-density fibreglass insulation throughout the oven cavity
• Welded frame drop-down oven door with heavy-duty spring hinge system
• 0.9mm 304 stainless steel oven door outer panel
• 1.0mm press-formed vitreous enamelled oven door inner panel
• Stay-cool stainless steel oven door handle with cast metal handle mounts
• Heavy-duty easy-remove chrome wire rack supports with four rack positions
• Two chrome wire oven racks supplied as standard
• Heavy-duty reinforced control knobs
• Analog thermostatic temperature controls
• Temperature range: variable on griddle, 150-300°C in oven
• Power rating: 18.6kW, 3P+N+E, 400-415V AC, 50/60Hz
• Fuel type: electric
• Colour: stainless steel
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 18.6kW|3P+N+E|400-415Vac|50/60Hz|Phase loading
• Temperature Control: Thermostatic
• Display Type: Analog
