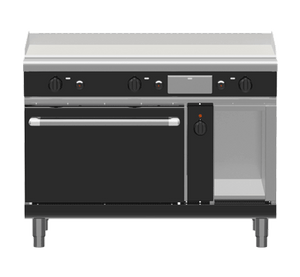

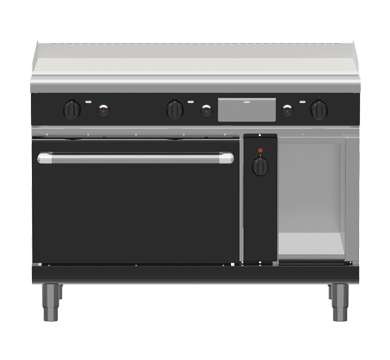

Waldorf Bold GPLB8121GEC 1200mm Gas Griddle Electric Convection Oven Range Low Back Version

The Waldorf Bold GPLB8121GEC is a heavy-duty 1200mm combination range purpose-built for high-volume commercial kitchens. It pairs a thermostatic gas griddle system rated at 108MJ/hr with a 2/1 GN electric fan-forced convection oven, delivering two cooking methods in a single footprint. Constructed from 304 stainless steel and manufactured in New Zealand, the unit arrives in a default black finish with additional colour options available, making it suited to both back-of-house production and open kitchen environments.

The griddle surface features a 20mm thick plate with top weld sealed construction for even heat transfer and straightforward cleaning, while a stainless steel grease drawer keeps service efficient during peak periods. A storage cabinet on the right-hand side adds practical in-line storage, and the convection oven's drop-down door and four-shelf capacity support continuous batch cooking for bakeries, cafes, restaurants and catering operations. The unit connects to either natural gas or LPG and requires a 415V three-phase power supply for the electric oven.

Key Benefits

• 108MJ/hr thermostatic griddle system delivers rapid, precise surface heat across the full 1200mm cooking zone for high-output breakfast, lunch and dinner service.
• Fan-forced 2/1 GN electric convection oven with four shelves enables large-batch baking and roasting with consistent, even results across every tray.
• 20mm thick top weld sealed griddle plate provides uniform heat distribution and a robust surface that resists warping under sustained heavy use.
• Push-button piezo ignition allows quick, tool-free burner lighting to keep service moving without interruption.
• Stainless steel grease drawer simplifies mid-service cleaning and reduces downtime associated with griddle maintenance.
• Right-hand storage cabinet keeps frequently used utensils, trays and accessories within immediate reach at the cooking station.
• Adjustable feet and two additional rollers make levelling straightforward on uneven floors and allow the unit to be repositioned for cleaning or reconfiguration.
• Compatible with both natural gas and LPG supplies, giving operators flexibility during installation or if fuel sources change.
• Optional ribbed or chrome mirror griddle plate available to suit different cooking applications or presentation requirements.

Key Features

• 1200mm wide gas griddle and electric convection oven range in the Waldorf Bold configuration
• Thermostatic gas burner system rated at 108MJ/hr for consistent, controllable surface temperatures
• 20mm thick griddle plate with top weld sealed construction for even heat and durability
• 2/1 GN electric fan-forced convection oven with a temperature range of 150-300°C and four shelves
• Drop-down oven door for easy tray loading and unloading
• Stainless steel grease drawer for straightforward griddle cleaning
• Storage cabinet positioned on the right-hand side of the unit
• Heavy-duty reinforced control knobs designed to withstand continuous commercial use
• Push-button piezo ignition on the gas griddle burners
• Adjustable feet plus two additional rollers for levelling and repositioning
• Low back (splashback) configuration
• 304 stainless steel construction throughout
• Single gas connection: R 3/4 (BSP) male, compatible with natural gas or LPG
• 415V three-phase power supply; electric oven rated at 6.6kW on a single-phase connection
• Smooth griddle surface standard; optional ribbed or chrome mirror plate available
• Default finish is black with additional custom colour options available
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
