Overview

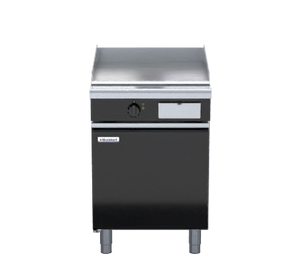

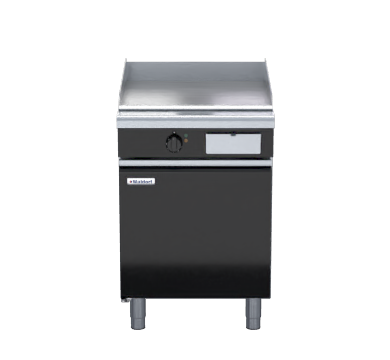

Waldorf Bold GPLB8600E-CD Electric Griddle 600mm Low Splashback on Enclosed Cabinet Base

The Waldorf Bold GPLB8600E-CD is a 600mm wide electric griddle fitted to a fully enclosed cabinet base, purpose-built for high-volume commercial kitchens that demand consistent cooking performance and rapid service. Driven by 7.2kW heating elements and a 20mm thick machined griddle plate, the unit delivers reliable, even heat across the entire cooking surface for everything from breakfast service through to burgers and seared proteins. The griddle plate is offered in smooth, ribbed or hard chrome mirror finish to suit different menu requirements, and the default cabinet colour is black with further colour options available to complement your kitchen fit-out.

Built throughout from 304 stainless steel, this unit is designed for straightforward cleaning, servicing and installation. The cabinet base is fully modular, allowing seamless integration into a matched suite configuration, and an optional GN 1/1 four-position racking kit adds flexible under-counter storage without consuming additional floor space. Manufactured in New Zealand and backed by a 24-month warranty, the GPLB8600E-CD is a robust, professional solution for busy commercial operations.

Key Benefits

• The 20mm thick machined griddle plate retains and distributes heat evenly across the full 600mm surface, minimising hot spots and improving cook consistency throughout service.
• Thermostatic temperature control with power-on and element-heating indicator lights enables precise, repeatable results and keeps cooking within a reliable operating range of 50 to 300°C.
• Overlapping plate finish at the front and rear edges channels grease away efficiently, while a dedicated stainless steel grease drawer makes end-of-service cleaning fast and hygienic.
• Top weld-sealed plates and a welded hob surround eliminate hard-to-clean joints and gaps, reducing contamination risk and cutting maintenance time between services.
• The choice of smooth, ribbed or hard chrome mirror plate finish gives operators the flexibility to adapt the unit for different menu styles without needing a separate appliance.
• The fully modular cabinet base, constructed with a twin-wall 304 stainless steel finish on both inner and outer surfaces, integrates neatly into a matched suite and presents a professional appearance on the pass.
• A heavy-duty, heat-resistant reinforced control knob with easy-view settings reduces the likelihood of operator error during busy service periods.
• Adjustable feet and two included rollers make positioning, levelling and repositioning straightforward during installation or kitchen reconfiguration.
• The optional GN 1/1 four-position racking kit for the cabinet base interior provides flexible under-counter storage without requiring any additional floor space.

Key Features

• 600mm wide electric griddle mounted on a fully enclosed cabinet base (CD configuration), low splashback version
• 7.2kW heating elements; single-phase 230-240V AC, 30A, 50/60Hz (1P+N+E)
• 20mm thick machined griddle plate as standard
• Smooth plate standard; optional ribbed plate sections or hard chrome mirror finish available
• Single temperature control zone with thermostatic control, 50-300°C operating range
• Large heat-resistant reinforced control knob with easy-view settings
• Indicator lights for power on and element heating
• Top weld-sealed plates for hygienic, gap-free construction
• Overlapping plate finish at front and rear for efficient grease run-off and easy cleaning
• Stainless steel grease drawer for quick, clean grease removal
• Side and rear splash guards in 2.5mm 304 stainless steel
• 2.0mm thick grease channel
• Welded hob surround incorporating a bull nose profile formed from 1.5mm 304 stainless steel
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Modular cabinet base constructed with a twin-wall configuration using 0.9mm 304 stainless steel on both internal and external faces
• Legs comprising 63mm diameter tubes in 1.2mm 304 stainless steel, rated for heavy-duty use, fitted with adjustable feet
• Two additional rollers supplied for ease of movement and installation
• Optional GN 1/1 four-position racking kit for cabinet base interior
• Default colour black; additional colour options available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 53
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2kW
• Temperature Control: Thermostatic
