Overview

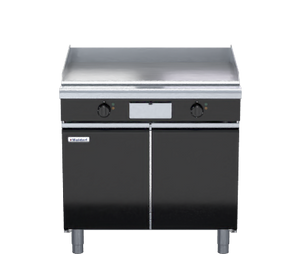

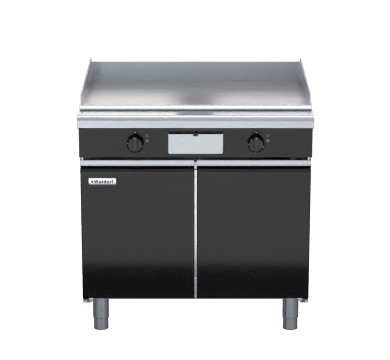

Waldorf Bold GPLB8900E-CD 900mm Electric Griddle with Low Back Cabinet Base

The Waldorf Bold GPLB8900E-CD is a 900mm wide electric griddle mounted on a fully enclosed cabinet base, purpose-built for high-volume commercial kitchens that demand consistent cooking performance and rapid service turnaround. Manufactured in New Zealand from 304 stainless steel throughout, the unit is powered by 12kW heating elements and features a 20mm thick machined griddle plate delivering even, reliable heat across two independent thermostatic control zones, giving operators precise simultaneous control over separate left and right cooking areas.

The enclosed cabinet base is fully modular to suit a matched suite configuration, and the unit ships in the Waldorf Bold range with a default black finish, with additional colour options available. An optional ribbed plate or mirror-finish hard chrome plate can be specified to broaden the range of cooking applications, and an optional GN 1/1 four-position racking kit adds flexible storage capacity directly beneath the cooking surface.

Key Benefits

• Dual independent thermostatic zones allow the left and right cooking areas to be operated at different temperatures simultaneously, ideal for preparing multiple menu items at once.
• The 20mm thick machined griddle plate retains and distributes heat evenly, reducing temperature recovery time between batches during peak service periods.
• Two 50-300°C thermostats fitted with large heat-resistant reinforced control knobs and indicator lights for power and heating status make it straightforward for staff to monitor and adjust settings at a glance.
• Overlapping plate finish at the front and rear, together with a stainless steel grease drawer and 2.0mm grease channel, simplify end-of-service clean-down and support ongoing hygiene standards.
• The fully modular cabinet base allows the unit to integrate seamlessly into a matched suite of Waldorf Bold equipment, with a construction featuring inner and outer skins of 0.9mm 304 stainless steel.
• The optional GN 1/1 four-position racking kit accommodates a total of eight 65mm GN 1/1 containers across one or two cabinet bays, providing practical heated or ambient storage directly below the cooking surface.
• Optional ribbed plate sections or mirror-finish hard chrome plates allow the same unit to be configured for a wider range of cooking applications without purchasing separate equipment.
• Adjustable feet and two additional rollers make installation, repositioning and routine servicing straightforward in a busy commercial kitchen environment.

Key Features

• 900mm wide electric griddle on a fully enclosed cabinet base (CD model)
• 12kW heating elements; 400-415Vac, 3P+N+E, 50/60Hz
• 20mm thick machined griddle plate as standard
• Two independent thermostatic control zones covering left and right cooking areas
• Temperature range 50-300°C per zone
• Top weld-sealed plates for structural integrity and easier cleaning
• Overlapping plate finish at front and rear for easy cleaning
• 2.0mm thick grease channel directs run-off efficiently
• Stainless steel grease drawer for convenient waste collection
• Side and rear splash guards in 2.5mm 304 stainless steel
• Welded hob surround incorporating a 1.5mm 304 stainless steel bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Cabinet base constructed with inner and outer skins of 0.9mm 304 stainless steel
• Fully modular cabinet base for matched suite configuration
• Tubular legs of 63mm diameter fabricated from 1.2mm 304 stainless steel with adjustable feet
• Optional GN 1/1 four-position racking kit for one or two cabinet bays, supporting a total of eight 65mm GN 1/1 containers
• Two additional rollers included alongside adjustable feet for ease of installation and repositioning
• Default finish is black; additional colour options available
• Waldorf Bold range designation
• Country of origin: New Zealand
• Overall dimensions: 900mm W x 805mm D x 972mm H
• Packed weight: 223kg

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
