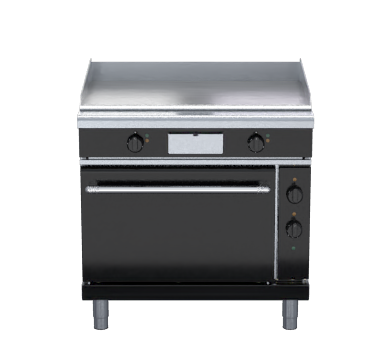

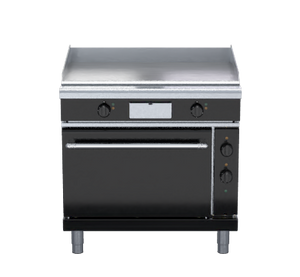

Waldorf GPLB8910E Bold 900mm Electric Griddle Static Oven Range Low Back Version

The Waldorf Bold GPLB8910E is a 900mm wide commercial electric griddle and static oven range built for the demands of high-volume professional kitchens. The unit features a 20mm thick machined smooth griddle top with dual independent thermostatic heat zones, allowing separate left and right temperature management for versatile cooking across a single surface. A 12kW element package powers the griddle, while the underbench oven provides GN 2/1 capacity supported by a cast iron even-heat sole plate and a fully welded, vitreous enamelled liner for consistent baking and roasting results.

Constructed on a galvanised steel chassis, the range incorporates heavy-gauge 304 stainless steel throughout, with a 1.5mm bull nose welded hob surround, 1.2mm splashback and hob sides, and 0.9mm front and oven side panels. The drop-down oven door features a welded frame with heavy-duty spring hinges, a vitreous enamelled inner panel, high-density fibreglass insulation, and a stay-cool stainless steel handle with cast metal mounts. Adjustable feet and two additional rollers simplify positioning and levelling, while the low-back configuration suits kitchens with height restrictions or custom ventilation arrangements. Default colour is black, with additional colour options available.

Key Benefits

• Dual independent griddle heat zones allow simultaneous cooking at different temperatures, reducing service bottlenecks during peak periods.
• GN 2/1 oven capacity with four-position racking and a cast iron sole plate delivers even heat distribution for reliable baking, roasting and holding across full gastronorm trays.
• Vitreous enamelled oven liner and door inner are straightforward to wipe clean, minimising turnaround time between services.
• Overlapping plate finish at the front and rear of the griddle, combined with a stainless steel grease drawer and 2.0mm grease channel, streamlines daily cleaning routines.
• Heavy-duty 150mm adjustable legs with two additional rollers make installation, repositioning and levelling quick without requiring extra equipment.
• Stay-cool stainless steel door handle with cast metal mounts reduces burn risk during busy service and supports safe, one-handed oven access.
• Optional ribbed plate sections and mirror-finish hard chrome griddle plates allow the unit to be configured for specific menu requirements without replacing the base unit.
• Robust galvanised steel chassis with reinforced control knobs withstands the physical demands of continuous commercial kitchen operation.

Key Features

• 900mm wide electric griddle and static oven range, low-back version
• 20mm thick machined smooth griddle top plates as standard
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome griddle plates available
• Dual thermostatic control zones for independent left and right griddle heat management
• 12kW total griddle heating elements
• 2.5mm thick 304 stainless steel splash guards on griddle sides and rear
• 2.0mm thick grease channel with stainless steel grease drawer
• Overlapping plate finish at front and rear for easy cleaning
• Welded hob surround in 1.5mm 304 stainless steel with bull nose profile
• Splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven sides in 0.9mm 304 stainless steel
• Galvanised steel chassis construction
• GN 2/1 electric static oven with four-position racking
• Cast iron even-heat oven sole plate
• 6.5kW oven heating elements
• Fully welded and vitreous enamelled oven liner
• Heavy-duty easy-remove heavy wire chrome rack supports
• Supplied with two chrome wire oven racks
• Drop-down oven door with welded frame and heavy-duty spring hinge system
• 0.9mm 304 stainless steel oven door outer panel
• 1.0mm press-formed vitreous enamelled oven door inner panel
• High-density fibreglass oven door insulation
• Stay-cool stainless steel door handle with cast metal handle mounts
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Two additional rollers for ease of movement and positioning
• Heavy-duty reinforced control knobs
• Default colour black; additional colour options available
• Thermostatic temperature control with analogue display
• Oven temperature range 150-300°C
• Splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 6.5kW|Phase loading
• Temperature Control: Thermostatic
• Display Type: Analog
