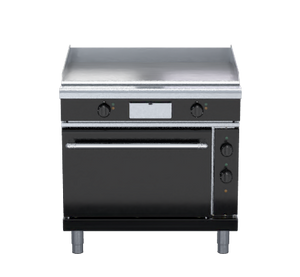

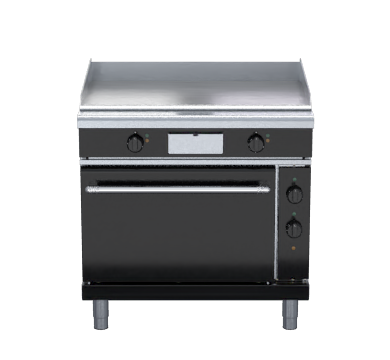

Waldorf Bold GPLB8910EC 900mm Electric Griddle Convection Oven Range Low Back Version

The Waldorf Bold GPLB8910EC is a 900mm wide electric griddle convection oven range designed for the rigorous demands of high-volume commercial kitchens. Combining a full-width smooth electric griddle with a powerful fan-forced convection oven beneath, this unit delivers versatile, consistent cooking performance across a single footprint. Manufactured in New Zealand from heavy-gauge 304 stainless steel throughout, it is built to withstand continuous service in cafes, restaurants, bakeries and catering operations.

The griddle features dual independent thermostatic control zones with 20mm thick machined top plates, while the GN 2/1 convection oven offers four-position racking and a fully welded, vitreous enamelled interior for even heat distribution and straightforward cleaning. Adjustable feet and two additional rollers simplify installation and repositioning. The Waldorf Bold range is available in a default black finish with additional colour options, and carries a 24-month warranty backed by Waldorf's established support network.

Key Benefits

• Dual independent left and right griddle heat zones allow simultaneous cooking at different temperatures, maximising flexibility during busy service periods.
• Fan-forced convection oven ensures even heat distribution across all rack positions, reducing hot spots and delivering consistent baking and roasting results batch after batch.
• GN 2/1 oven capacity with four-position racking accommodates large gastronorm trays, supporting high-volume batch cooking without the need for additional equipment.
• 20mm thick machined griddle plates retain and distribute heat efficiently, providing a stable cooking surface suited to proteins, vegetables and breakfast items alike.
• Vitreous enamelled oven liner and door inner are smooth and non-porous, making daily cleaning faster and reducing the labour required for end-of-service maintenance.
• Adjustable feet combined with two integrated rollers make installation straightforward and allow the unit to be repositioned for cleaning or service access.
• Heavy-duty reinforced control knobs and a welded drop-down oven door frame are engineered to withstand repeated daily use in demanding kitchen environments.
• Cast iron even-heat oven sole plate stabilises oven floor temperature, supporting consistent results for pastry, bread and roasted dishes.
• Cool-touch stainless steel door handle with cast metal mounts protects kitchen staff from burns during continuous oven access.

Key Features

• 900mm wide electric griddle convection oven range, low back version
• Galvanised steel chassis construction
• Welded hob surround in 1.5mm 304 stainless steel with bull nose edge
• Splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven sides in 0.9mm 304 stainless steel
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel tube with adjustable feet, plus two additional rollers
• Griddle: 20mm thick machined smooth top plates as standard
• Optional ribbed griddle plate sections available
• Optional mirror-finish hard chrome griddle plates available
• Dual thermostatic griddle control zones for independent left and right heat management
• 2.5mm thick 304 stainless steel griddle splash guards on sides and rear
• 2.0mm thick grease channel with stainless steel grease drawer
• Overlapping plate finish at front and rear for easy cleaning
• Oven: GN 2/1 capacity with four-position racking
• Fully welded oven liner lined with vitreous enamel
• Cast iron even-heat oven sole plate
• 12kW total oven heating elements (two 6.5kW elements)
• 100W heavy-duty oven circulation motor with 200mm diameter fan
• Heavy-duty easy-remove chrome wire rack supports
• Supplied with two chrome wire oven racks
• Welded frame drop-down oven door with heavy-duty spring hinge system
• 0.9mm 304 stainless steel oven door outer panel
• 1.0mm press-formed vitreous enamelled oven door inner panel
• High-density fibreglass oven door insulation
• Stay-cool stainless steel oven door handle with cast metal handle mounts
• Total power rating: 18.6kW, 3P+N+E, 400-415Vac, 50/60Hz
• Thermostatic temperature control with analogue display
• Oven temperature range: 150-300°C
• Waldorf Bold range: default black finish with additional colour options available
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 18.6kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
