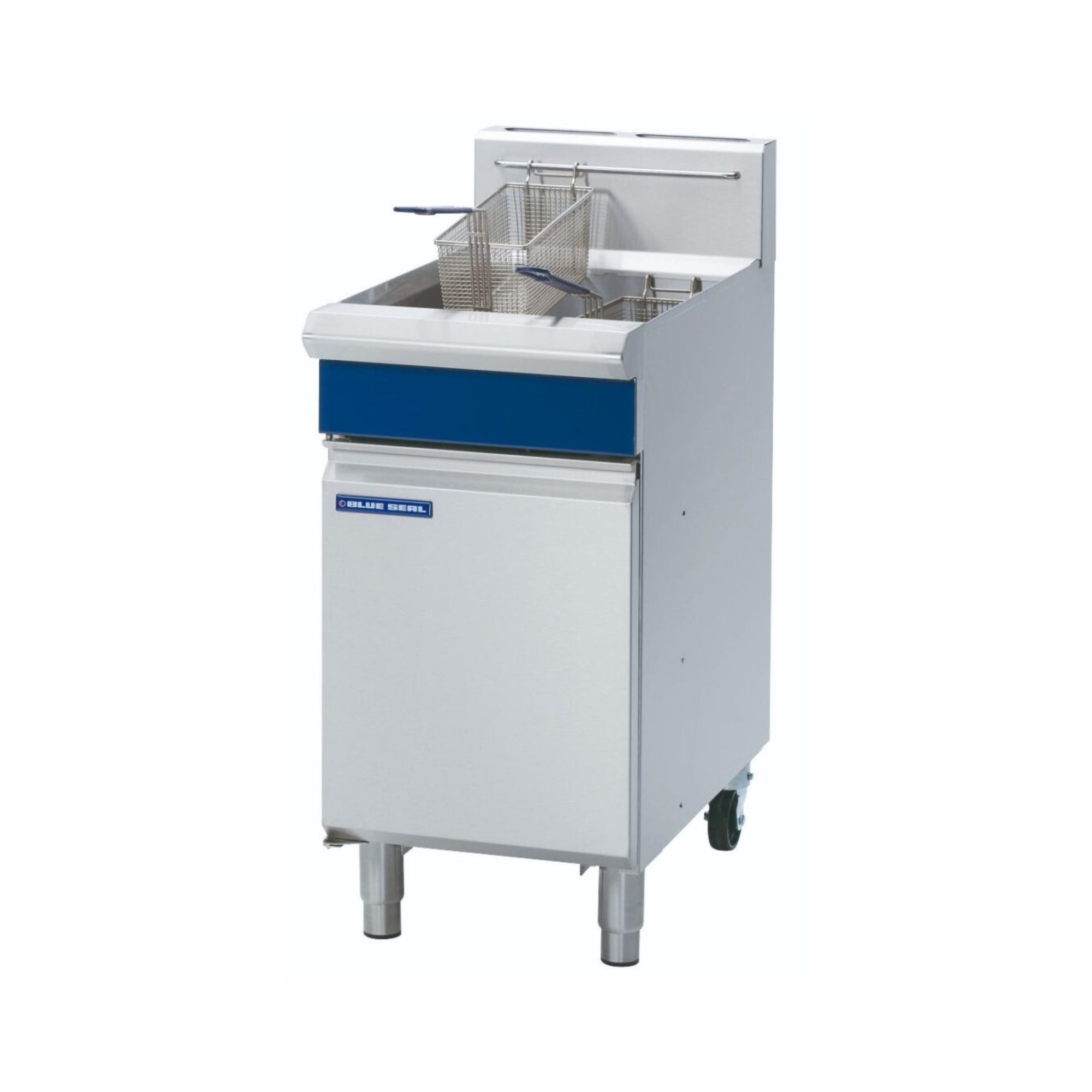

Blue Seal GT45 Evolution Series 450mm Single Pan Gas Fryer

The Blue Seal GT45 is a freestanding 450mm single pan gas fryer from the Evolution Series, built in New Zealand from 304 stainless steel for long-term durability in demanding commercial kitchens. It features Blue Seal's patented Vee Ray infrared burner technology, delivering a 31 kg/hr production rate and rapid heat recovery to maintain consistent output during peak service periods.

With a 20-litre oil capacity, mechanical thermostat controls, and an over-temperature safety cut-out, the GT45 is straightforward to operate and maintain. Available in both Natural Gas and LPG configurations, it suits a wide range of commercial kitchen setups and is supplied ready to use with two standard fry baskets and a stainless steel lid included.

Key Benefits

• High 31 kg/hr production rate keeps pace with busy service periods, reducing customer wait times.
• Patented Vee Ray infrared burner technology delivers rapid heat recovery so oil temperature rebounds quickly between batches.
• Simple mechanical thermostat controls are intuitive for staff to operate and easy to service or adjust on the fly.
• Over-temperature safety cut-out protects both the oil and the equipment, reducing fire risk and costly downtime.
• 20-litre oil capacity handles large batch volumes, making it well suited to high-throughput snack and chip frying.
• Available in Natural Gas or LPG, providing flexibility to match existing kitchen gas supply without modification.
• Constructed from 304 stainless steel throughout for corrosion resistance, easy cleaning, and a long service life.
• Supplied with two standard baskets and a stainless steel lid, so the unit is operational straight out of the box.
• Designed for easy cleaning, installation, and servicing, minimising labour costs and kitchen downtime.

Key Features

• 450mm wide freestanding single pan gas fryer from the Blue Seal Evolution Series
• 20-litre oil capacity with pan dimensions W365 x L380 x D95 mm
• 31 kg/hr production rate for high-volume commercial frying
• 2 x 45 MJ/hr Vee Ray patented infrared burners for industry-leading frying performance and fast recovery
• Thermostat temperature range: 145–195°C with mechanical controls
• Over-temperature safety cut-out for added operational safety
• 304 stainless steel construction throughout
• 165mm splashback included
• Supplied with 2 standard fry baskets and stainless steel lid as standard
• Available in Natural Gas or LPG — gas type must be specified at time of order
• R 3/4 BSP male gas connection
• Freestanding installation type
• Country of origin: New Zealand
• Unit dimensions: W450 x D812 x H1085 mm
• Unit weight: 122 kg (packed)

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 200.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 122
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 20
• Pan Size: W365 x L380 x D95 mm
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Mechanical Thermostat
• Temperature Control: Thermostat | 90-185°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
