Overview

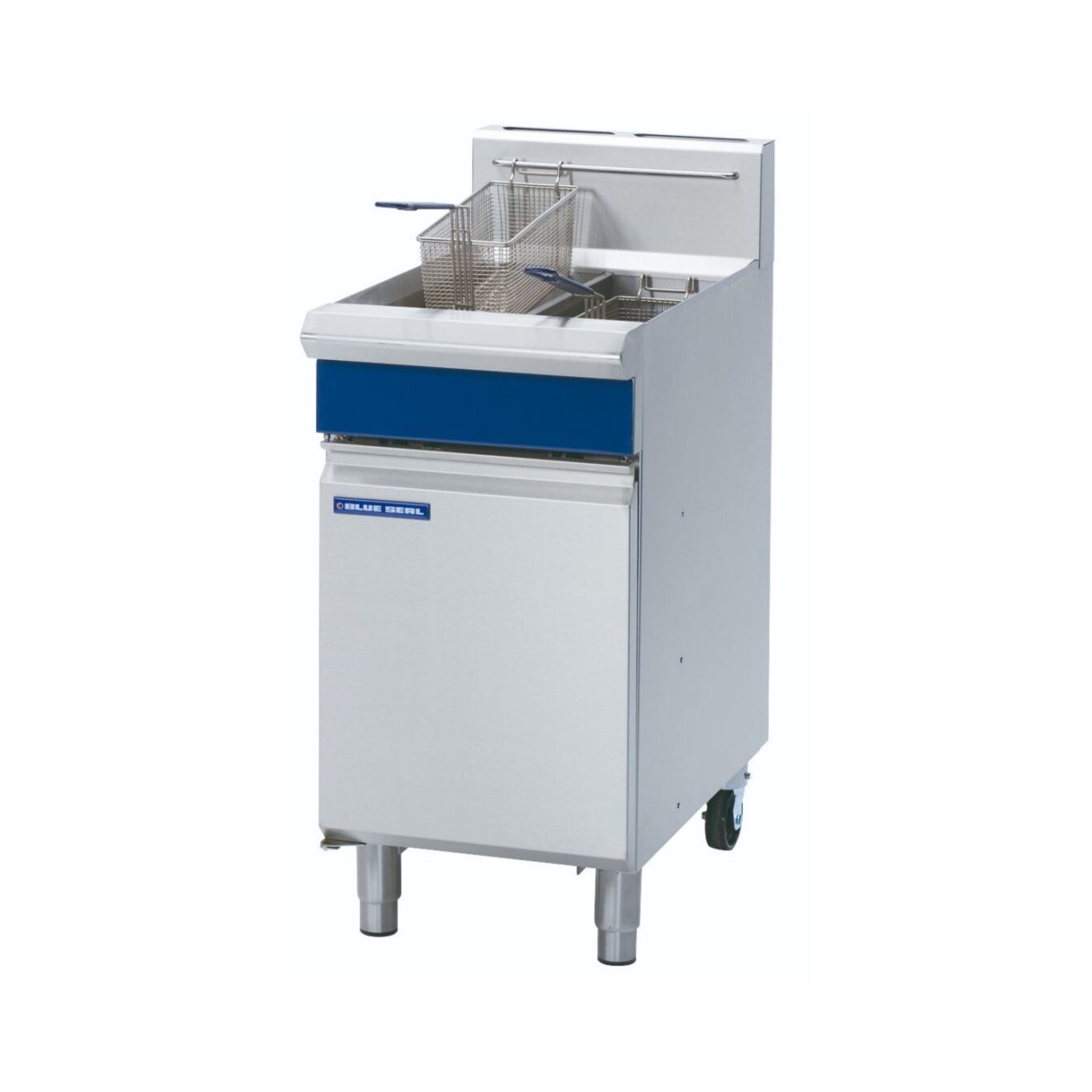

Blue Seal GT46 Evolution Series 450mm Twin Pan Gas Fryer

The Blue Seal GT46 is a 450mm freestanding twin pan gas fryer from the Evolution Series, built in New Zealand from 304 stainless steel for long-term durability in demanding commercial kitchens. Each independent pan holds 13 litres of oil and is powered by a 45MJ/hr infrared burner using Blue Seal's patented Vee Ray technology, delivering a combined production rate of 31kg per hour and industry-leading heat recovery to keep service moving during peak periods.

Mechanical direct-action thermostats maintain oil temperature to within plus or minus 1.0°C across a range of 145 to 195°C, while over-temperature safety cut-outs provide an additional layer of protection. The unit accepts both natural gas and LPG connections via a 3/4" BSP male fitting, comes supplied with two standard baskets, and features a 165mm splashback as standard. Its straightforward design also makes routine cleaning, installation, and servicing quick and uncomplicated.

Key Benefits

• Twin independent pans allow different foods to be fried simultaneously at different temperatures, maximising menu flexibility without cross-contamination.
• Patented Vee Ray infrared burners deliver rapid heat recovery so oil temperature rebounds quickly between loads, maintaining consistent output during busy service.
• A 31kg per hour production rate ensures high-volume kitchens can meet demand without bottlenecks at the fryer station.
• Direct-action thermostats accurate to plus or minus 1.0°C keep oil at the precise set point, producing reliably consistent frying results across every batch.
• Over-temperature safety cut-outs reduce the risk of oil overheating, protecting both staff and equipment.
• Compatible with both natural gas and LPG supplies, giving operators flexibility when specifying for different site requirements.
• 304 stainless steel construction resists corrosion and is easy to wipe down, supporting food safety and reducing long-term maintenance costs.
• Supplied with two standard baskets and a 165mm splashback, ready for immediate use without additional purchases.

Key Features

• 450mm wide freestanding twin pan configuration, part of the Evolution Series range
• 13 litre oil capacity per pan (26 litres total)
• 2 x 45MJ/hr patented Vee Ray infrared burners, one per pan
• Production rate of 31kg per hour
• Direct-action mechanical thermostats accurate to plus or minus 1.0°C
• Thermostat temperature range: 145°C to 195°C
• Over-temperature safety cut-outs on each pan
• Large capacity cool zones in each pan to extend oil life
• Available in natural gas or LPG; gas connection via 3/4" BSP male fitting
• Constructed from 304 stainless steel throughout
• Integrated 165mm splashback
• Supplied with 2 standard fry baskets
• Freestanding installation type
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 129
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 13
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Mechanical Thermostat
• Temperature Control: Thermostat | 90-185°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
