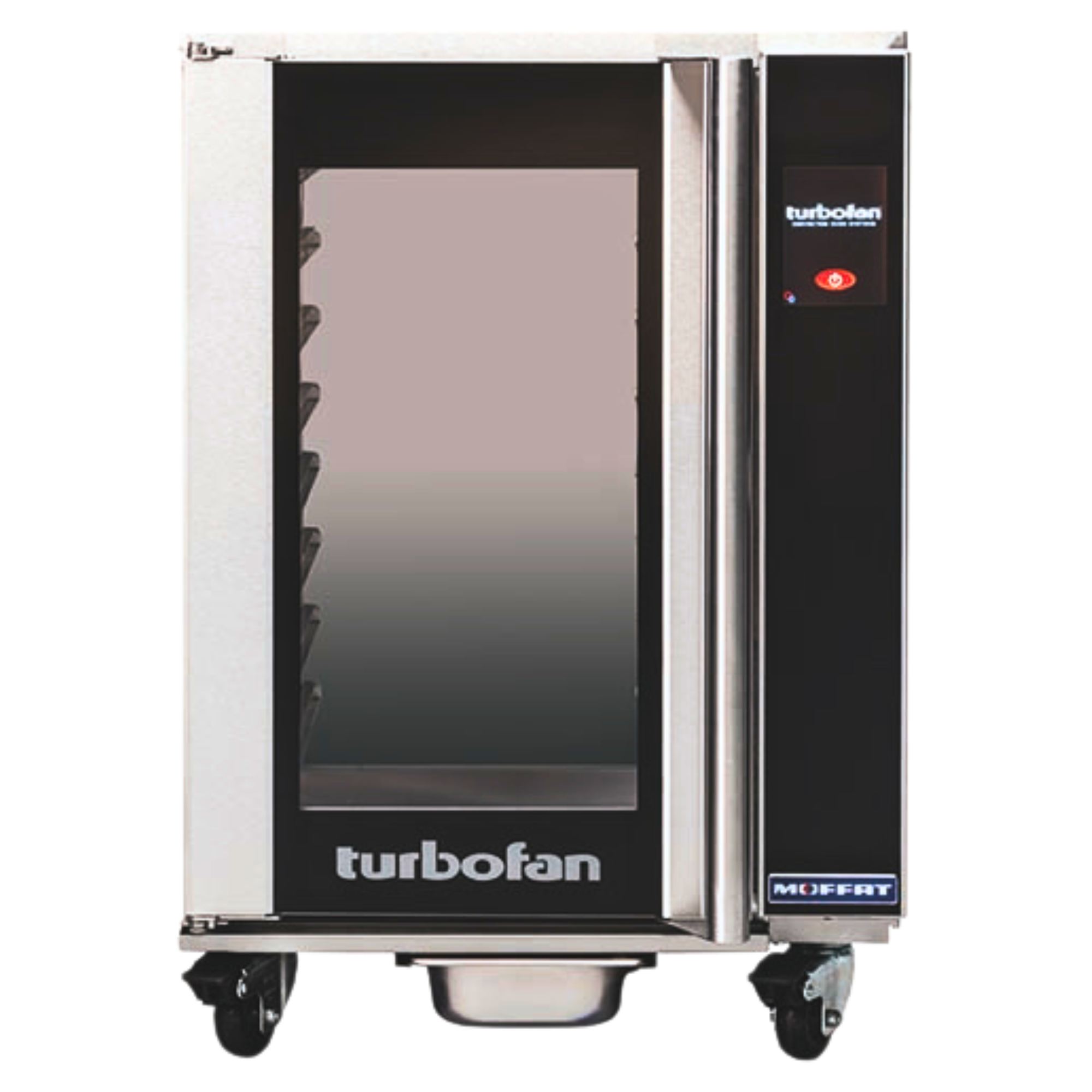

Turbofan H8T-UC Undercounter Holding Cabinet | 8 Tray | 1/1 GN | Electric | Touch Screen

The Turbofan H8T-UC is a compact undercounter holding cabinet designed to keep prepared menu items at precise serving temperatures throughout demanding service periods. Measuring 810mm in height with a 610mm-wide footprint, it fits neatly beneath existing counter benches and is suited to cafés, restaurants, catering kitchens and other high-volume venues. It can function as a standalone holding solution or be integrated as a system component alongside Turbofan E33 convection ovens, making it well suited to cook-and-hold food service environments. Installation is straightforward thanks to the factory-fitted 10A cordset, which plugs directly into a standard outlet with no hard wiring required.

A low-velocity circulation fan distributes heat uniformly across all 8 tray positions, maintaining food quality and texture during extended holds across a holding range spanning 20°C up to 90°C. The icon-driven touch screen gives operators an intuitive interface from which holding modes can be set, individual shelf timers can be assigned per tray level, and programs or custom icons can be refreshed via a built-in USB port. The cabinet is built from 304 stainless steel with full double-skin construction, a continuous door seal, a double-glazed door and dual halogen interior lamps, delivering durability, hygiene compliance and energy-efficient operation. Packaged in 100% recyclable materials and manufactured in New Zealand.

Key Benefits

• An 810mm unit height allows the cabinet to slide under existing bench surfaces, preserving valuable floor space and keeping the service line organised.
• Operates equally well as a standalone holding unit or as a system component paired with Turbofan E33 convection ovens for a complete cook-and-hold setup.
• The low-velocity circulation fan spreads heat evenly across all 8 tray positions, protecting food texture and quality throughout extended holding periods.
• A holding temperature spanning from 20°C through to 90°C provides the flexibility to safely hold a wide variety of menu items at their correct serving temperature.
• The icon-driven touch screen with per-shelf timer assignment gives operators clear, at-a-glance control over multiple food items being held simultaneously.
• The USB port allows programs and custom icons to be updated quickly without specialist tools, minimising downtime when menus change.
• 304 stainless steel construction combined with full double-skin build and a continuous door seal supports rigorous hygiene standards and long-term durability.
• Four 65mm castors are fitted to the unit: the pair at the front each incorporate both a wheel brake and a swivel lock, while the two rear castors are fixed rigid, allowing easy repositioning and secure placement during service.
• The factory-fitted 10A plug-in cordset means the unit is ready to connect to a standard outlet with no hard wiring, keeping installation fast and simple.

Key Features

• 8 x 1/1 GN pan capacity with 74mm tray spacing
• 810mm unit height suitable for undercounter installation
• Compact 610mm width fits standard underbench spaces
• Low-velocity circulation fan system for even heat distribution
• Holding temperature range: 20°C to 90°C
• Icon-driven touch screen interface
• Individual shelf timers for independent management of each tray level
• USB port for updating programs and icons
• Electronic temperature control
• 1200W cabinet heating element
• Full double-skin construction for thermal efficiency and durability
• Double-glazed door
• Continuous door seal to maintain consistent internal temperature
• Dual halogen interior lamps for clear visibility of cabinet contents
• Cabinet drain to condensate pan
• 304 stainless steel construction
• 220-240V plug-in with 10A cordset factory fitted
• Suitable for standalone use or system installation with Turbofan E33 convection ovens
• 4 x 65mm diameter castors: front pair with independent wheel brake and swivel lock, rear pair fixed rigid
• 100% recyclable packaging
• Manufactured in New Zealand

Specifications

• Width (mm): 610
• Depth (mm): 680
• Height (mm): 810
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 82.8
• Packed Width (mm): 655.0
• Packed Height (mm): 830.0
• Packed Depth (mm): 975.0
• Shipping Cubic: 0.530059000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 24
• Fuel Type: Electric
• Power Supply: Single Phase 230-240V 10A
• Voltage (V): 230
• Voltage/Phase: 220-240V, 50Hz, 1-phase, 1.3kW, 5.4A
