Overview

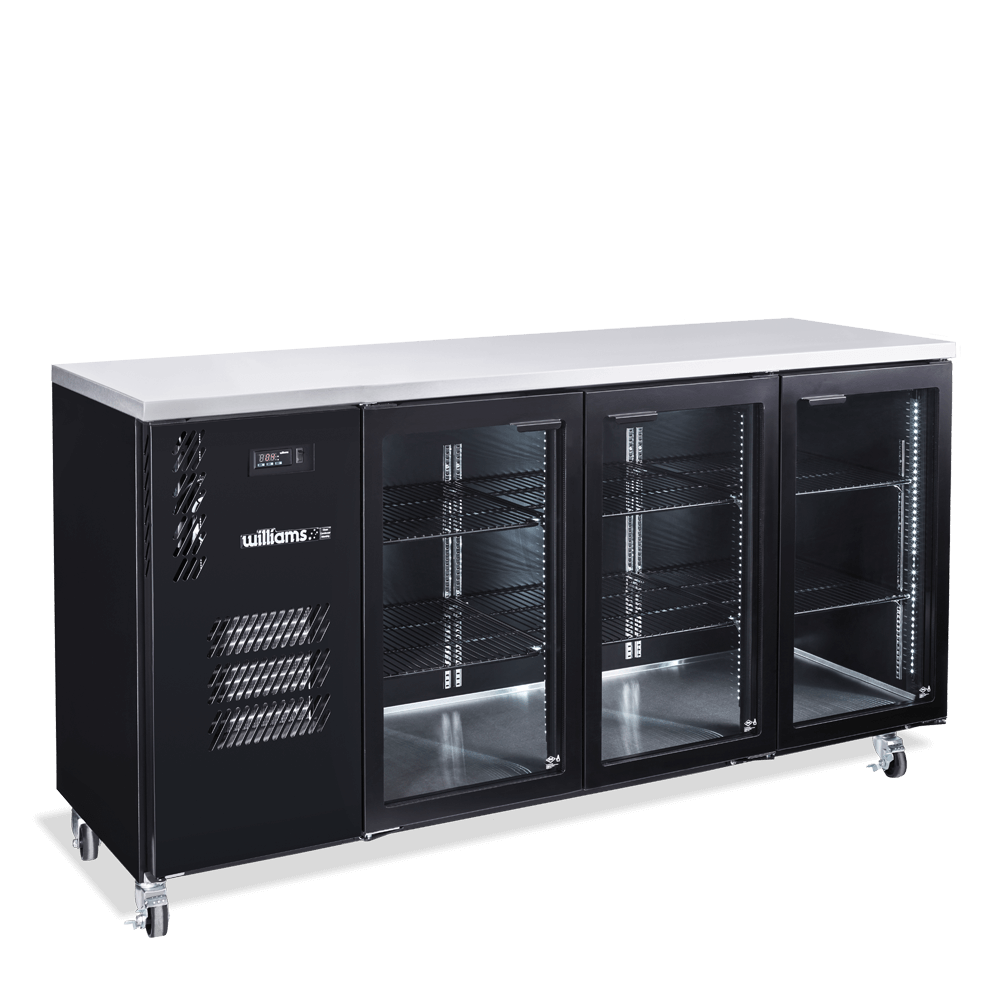

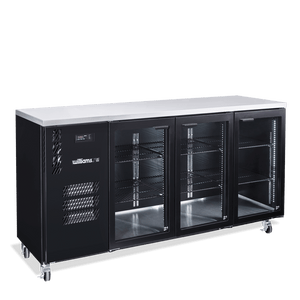

Williams HC3UGBHC Cameo 3 Door Underbench Bar Fridge – Black Glass Door

The Williams HC3UGBHC Cameo is a 640-litre, three-door underbench bar fridge finished in black, purpose-built for demanding commercial environments. Manufactured in Australia with a 304 stainless steel construction, it operates on a self-contained, front-breathing refrigeration system using R290 natural hydrocarbon refrigerant, making it suitable for a wide variety of installation positions without the need for rear clearance.

Designed to maintain a precise temperature range of +1°C to +4°C, the Cameo uses a CoolSmart electronic thermostat with a digital LED display for accurate, energy-efficient temperature management. With a Climate Class 4 (Tropical) rating, forced fan-assisted air cooling, and automatic defrost, this unit delivers consistent performance even in high-ambient kitchen and bar environments.

Key Benefits

• Worktop-height profile integrates seamlessly under a bench or bar counter, maximising cold storage on the service line without consuming additional floor space.
• Front-breathing refrigeration unit allows flexible placement against walls or within joinery, with no rear ventilation clearance required.
• CoolSmart electronic thermostat holds temperature within a tight +1°C to +4°C band, reducing food safety risk and unnecessary energy use during busy service periods.
• R290 natural hydrocarbon refrigerant delivers lower running costs and a reduced environmental footprint compared to synthetic alternatives.
• Triple-glazed, self-closing glass doors let staff quickly identify stock without opening the unit, minimising cold air loss during high-traffic service.
• Removable cassette refrigeration system simplifies routine servicing and reduces downtime if maintenance is required.
• Heavy-duty swivel castors with brakes make repositioning straightforward and allow thorough cleaning underneath the unit.
• Automatic defrost cycle reduces manual maintenance demands in busy operations.
• Two adjustable, plastic-coated shelves per door provide flexible storage configurations and are easy to remove for cleaning.

Key Features

• 640-litre total storage capacity across three compartments.
• Three black triple-glazed glass doors with self-closing hinges.
• Magnetic door gaskets that are easy to clean and fully replaceable.
• Two adjustable plastic-coated shelves per door, six shelves total.
• CoolSmart electronic thermostat with digital LED display for precise temperature control.
• Temperature range: +1°C to +4°C.
• Climate Class 4 (Tropical) rating for reliable operation in high-ambient environments.
• Fan-assisted forced-air cooling for even temperature distribution throughout the cabinet.
• Automatic defrost system.
• R290 natural hydrocarbon refrigerant.
• Self-contained, front-breathing refrigeration unit for flexible installation.
• Removable cassette refrigeration system for simplified servicing.
• Heavy-duty non-marking swivel castors with brakes for mobility and stability.
• 304 stainless steel construction.
• Black exterior finish.
• LED interior lighting.
• Operates on 240V single phase, 10-amp plug (4.6 amps running draw).
• Energy consumption: 1.58 kWh per 24 hours.

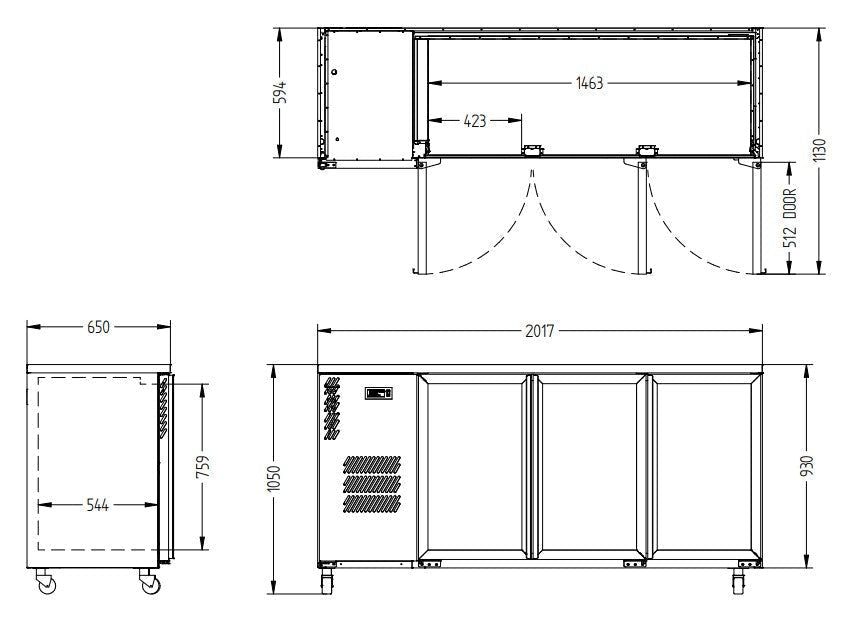

• Dimensions: 2017mm (W) x 650mm (D) x 1050mm (H).
• Weight: 80 kg.
• Manufactured in Australia.
• 24-month warranty (self-contained unit).

Specifications

• Width (mm): 2017
• Depth (mm): 650
• Height (mm): 1050
• Weight (kg): 80
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 640
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp plug / 4.6 amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.58
• Temperature Range: +1/+4°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Hydrocarbon
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 6
• No. of Doors: 3
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
