Overview

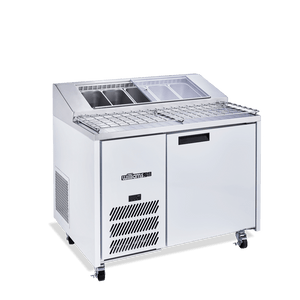

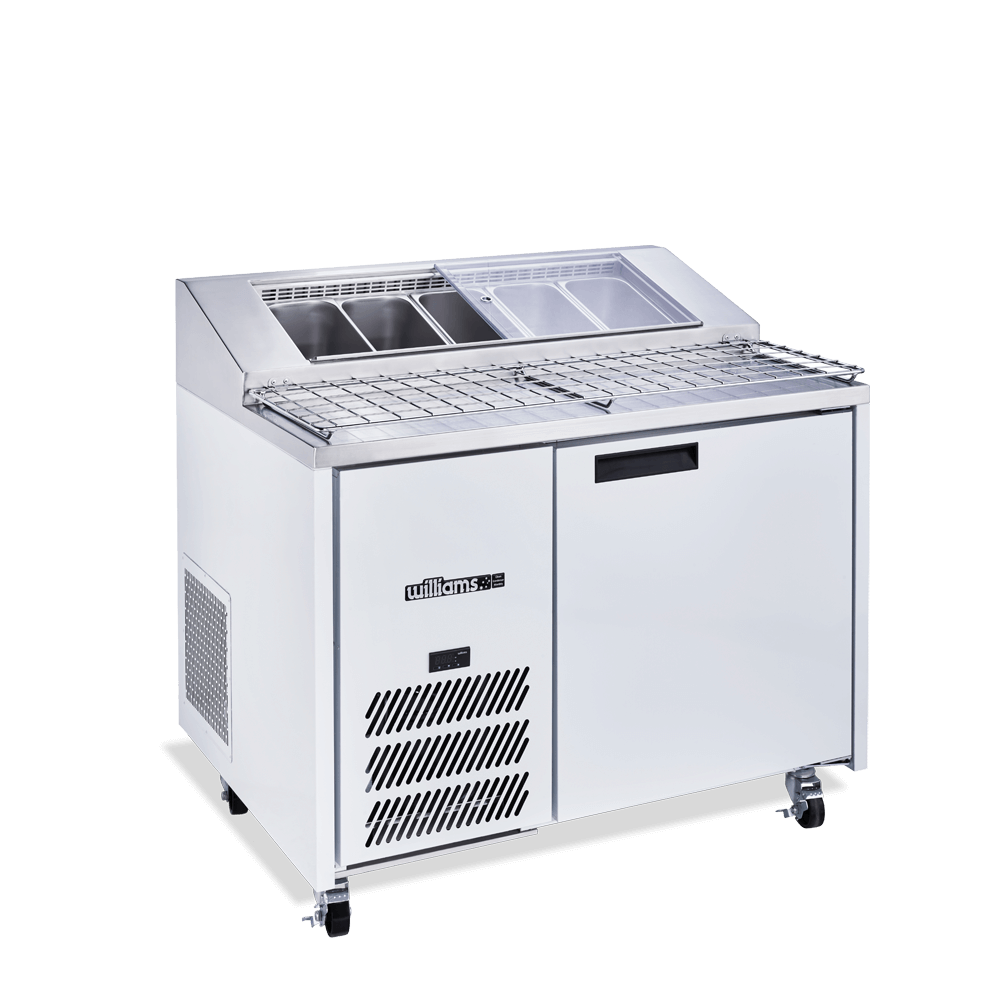

Williams HJ1PCBA Jade Pizza Prep Counter 1 Door

The Williams HJ1PCBA Jade Pizza Counter is an Australian-designed and manufactured refrigerated pizza preparation counter built to handle the demands of the busiest commercial kitchens. Featuring a single solid door, a 400-litre refrigerated base, and a blown air well above, it delivers consistent temperatures between +1°C and +4°C while keeping all ingredients within easy arm's reach of the chef.

Engineered to a Climate Class 4 (Tropical) rating, this unit uses a self-contained R290 refrigerant system with fan-assisted cooling and an automatic defrost cycle, making it well suited to high-ambient Australian kitchen environments. The CoolSmart electronic controller monitors and maintains even temperatures for energy efficiency and food safety compliance, while a waste heat recovery vaporiser system eliminates the need for an external drain.

Key Benefits

• Blown air circulates both over and under all food pans simultaneously, maximising ingredient holding capacity and refrigeration efficiency across the entire well.
• The fully enclosed stainless steel well beneath the food pans prevents dropped food from contaminating the cabinet below, supporting hygienic, HACCP-compliant operation.
• Front-mounted condenser with a removable grill and a refrigeration system housed in a removable cassette make routine cleaning and servicing straightforward without specialist tools.
• Raised, ergonomically angled pots combined with polycarbonate sliding lids over the blown air well allow fast, efficient access to toppings during high-volume service.
• The waste heat recovery vaporiser system removes condensate without requiring a floor drain connection, simplifying installation and reducing plumbing costs.
• Swivel and brake castors with threaded fittings allow the unit to be repositioned easily on the kitchen floor and converted to fixed legs if plinth mounting is preferred.
• CoolSmart electronic temperature control and a digital LED display give operators clear, accurate monitoring of cabinet conditions to maintain food safety at all times.
• Self-closing doors and face-mounted hinges for plinth mounting reduce cold air loss during busy service periods and support flexible installation options.

Key Features

• Australian-designed and manufactured for high-ambient, demanding commercial kitchen environments
• Single solid door configuration with self-closing action and face-mounted hinges suitable for plinth mounting
• 400-litre refrigerated storage capacity
• Blown air well provides refrigeration over and under all food pans for maximum holding efficiency
• Fully enclosed stainless steel well beneath food pans prevents ingredients from falling into the cabinet
• 4622 grade stainless steel worktop
• 304 stainless steel construction throughout
• Polycarbonate sliding lids over the blown air well to retain cold air between service
• Raised, ergonomically angled ingredient pots for comfortable, quick access
• Removable blown air ducts for thorough cleaning
• Removable wire grid to facilitate easy tray sliding
• One plastic-coated shelf per door section
• CoolSmart electronic controller for energy-efficient, even temperature management
• Digital LED display for clear temperature monitoring
• Temperature range: +1°C to +4°C
• Fan-assisted (forced air) refrigeration system
• Self-contained refrigeration system housed in a removable cassette for straightforward servicing
• Automatic defrost cycle
• Waste heat recovery vaporiser system — no external drain required
• Anti-corrosive coating on the evaporator coil for extended service life
• Refrigerant: R290
• Climate Class 4 (Tropical) rated
• Front-mounted condenser with removable grill for easy access and cleaning
• Swivel and brake castors with threaded fittings allowing simple changeover to legs if required
• HACCP compliant
• Energy consumption: 1.69 kWh/24h
• Operates on 240V single phase, 10 amp plug (3.8 amps running current)
• 24-month warranty (self-contained)

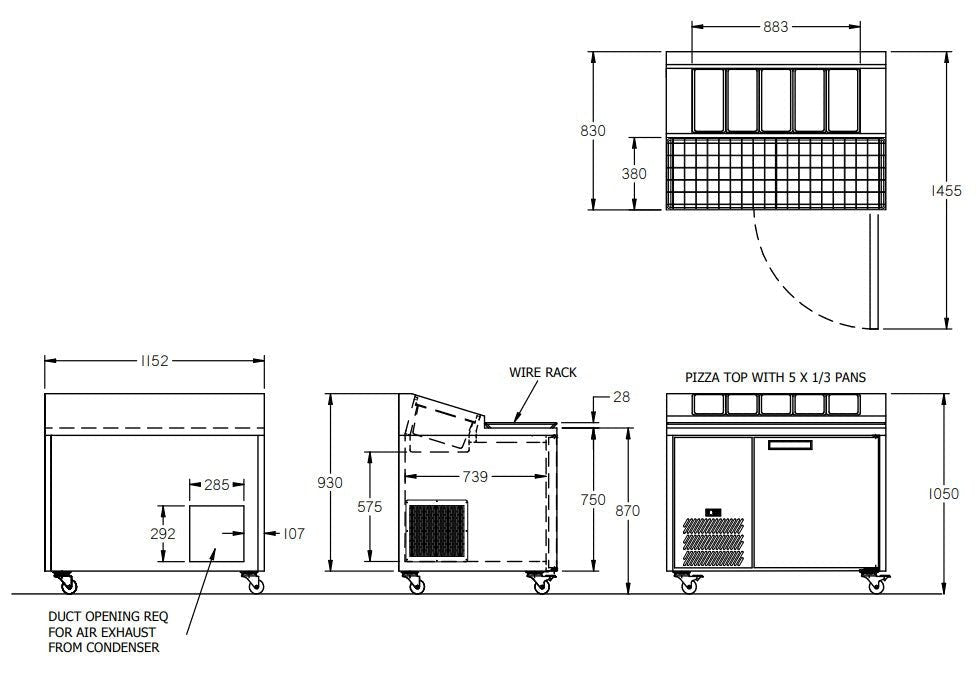

Specifications

• Width (mm): 1152
• Depth (mm): 830
• Height (mm): 870
• Weight (kg): 110
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 400
• Amps (A): 10
• Voltage (V): 240V single phase
• Power Rating: 10 amp plug / 3.8 amps
• Warranty (months): 24 months (self-contained)
• Country of Origin: Australia
• Energy Consumption (kWh/24h): 1.69
• Temperature Range: +1/+4°C
• Refrigerant: R134a
• Compressor Location: Self-contained
• Refrigeration Type: Prep Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 1
• Temperature Control: CoolSmart Electronic Thermostat
• Interior Lighting: LED
• Display Type: Digital LED
