Overview

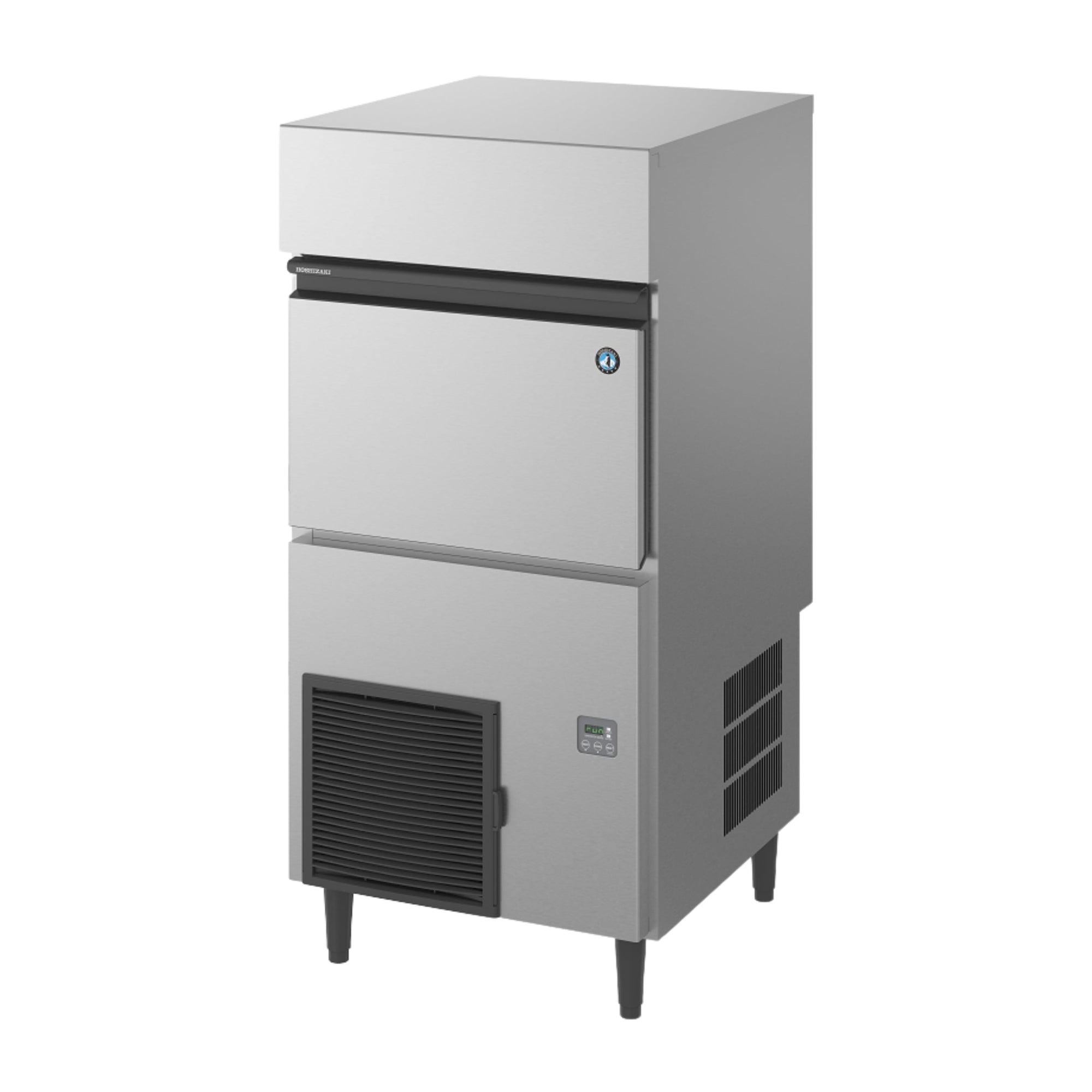

Hoshizaki KM-140C-HC Crescent Edge Ice Maker with 55kg Storage Bin

The Hoshizaki KM-140C-HC is a self-contained commercial crescent ice maker capable of producing up to 130kg of premium Crescent Edge ice per 24 hours, with a built-in 55kg storage bin. Part of the Hoshizaki KM Edge series, it features an enlarged double-sided bonded stainless steel evaporator that accelerates freeze and harvest cycles, producing more ice in fewer cycles and reducing overall energy consumption. With a compact footprint and flush rear-wall mounting capability, it suits restaurants, bars, hotels, and busy commercial kitchens of all sizes.

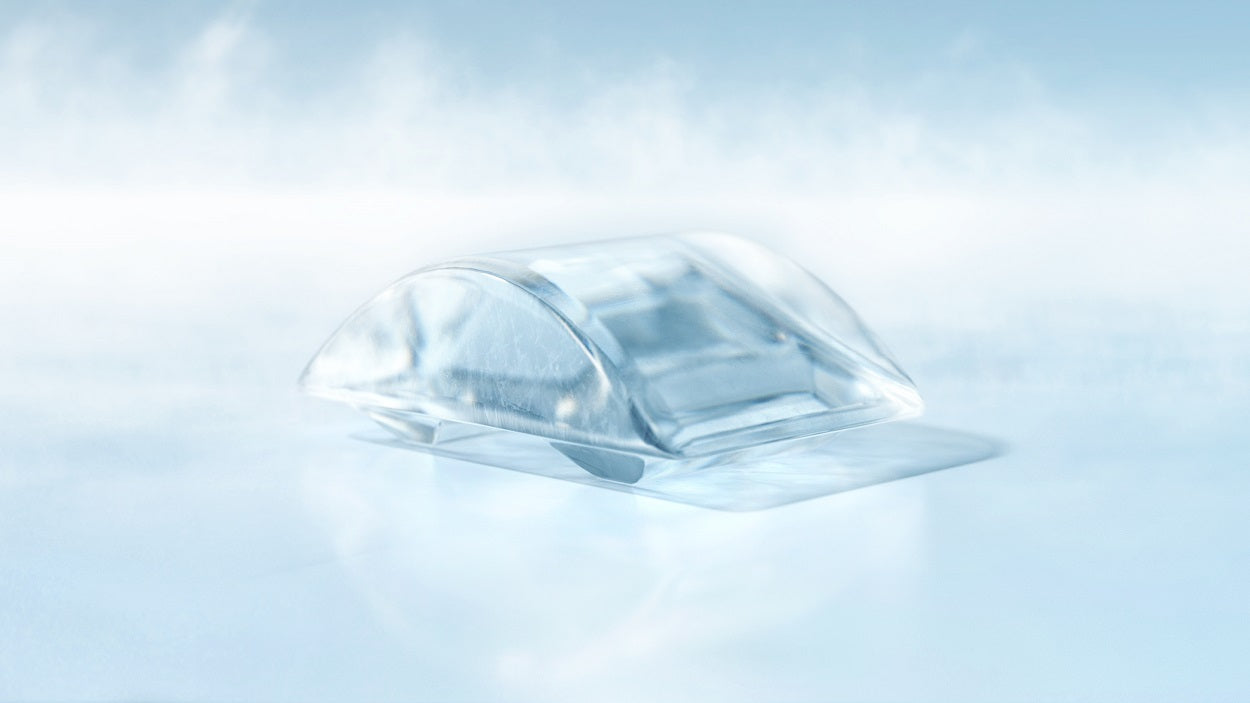

Crescent Edge ice cubes are individually formed, crystal clear, exceptionally hard, and slow melting, making them ideal for premium beverage service with minimal dilution. The KM-140C-HC is built to meet strict hygiene and food safety standards and incorporates a range of operator-friendly features including a snap-in water tank for easy sanitation, a slide-in front air filter, an EverCheck control board with audible alarms and diagnostics, a fully automated chemical cleaning function, and HoshiGuard antimicrobial protection throughout the ice-making path. It runs on a standard single-phase 10A supply using R290 refrigerant and is backed by a 3-year parts and labour warranty.

Key Benefits

• High daily output of up to 130kg ensures ice availability is never a bottleneck during peak service periods.
• Crescent Edge ice is crystal clear, hard, and slow melting, maintaining drink presentation quality and reducing beverage dilution.
• CycleSaver double-sided evaporator technology produces ice on both sides simultaneously, delivering more ice per cycle and cutting overall cycle frequency to reduce energy use.
• Automated chemical cleaning and a snap-in water tank simplify routine sanitation, reducing labour time and supporting consistent food safety compliance.
• EverCheck control board with LED status indicators and audible alarms makes fault identification straightforward, helping service technicians diagnose issues quickly.
• Slide-in front air filter is easily accessible for regular cleaning, maintaining airflow and unit efficiency without requiring tools or disassembly.
• Flush rear-wall mounting allows installation in tight spaces, maximising usable kitchen floor area.
• HoshiGuard antimicrobial agent provides ongoing protection within the ice-making system, supporting hygiene between cleans.
• Standard single-phase 10A power connection and low electrical consumption of 4.2kWh per 24 hours keep running costs manageable in commercial environments.

Key Features

• Produces up to 130kg of Crescent Edge ice per 24 hours (138kg at 10°C air/10°C water; 130kg at 21°C air/15°C water; 115kg at 32°C air/21°C water).
• Integrated 55kg storage bin.
• Approximate freeze cycle time of 21 minutes, yielding roughly 1.87kg (approx. 208 cubes) per cycle.
• Double-sided bonded stainless steel evaporator produces ice on both sides, reducing cycle count and energy consumption.
• KM Edge series enlarged evaporator surface accelerates harvest cycles for maximum throughput.
• CycleSaver technology cycles approximately half as many times as comparable competitors while maintaining output.
• HoshiGuard antimicrobial agent integrated throughout the ice-making path.
• EverCheck control board with audible alarms, LED indicators, and diagnostic functions to assist fault identification.
• Accessible digital operation panel for easy status monitoring and fault display.
• Fully automated chemical cleaning function reduces manual cleaning effort.
• Snap-in water tank design for quick removal and thorough sanitation.
• Slide-in air filter located at the front panel for easy access and cleaning.
• Durable stainless steel exterior construction.
• Self-contained unit with flush rear-wall mounting capability.
• Air-cooled system.
• R290 refrigerant (110g charge).
• Single-phase power supply, 220–240V, 50Hz, 10A plug; running current 3.9A, starting current 18.6A.
• Energy consumption: 4.2kWh per 24 hours.
• Operating ambient temperature range: 7°C to 38°C.
• Operating water temperature range: 7°C to 32°C.
• Water pressure range: 0.07–0.8 MPa (0.7–8 bar).
• Voltage tolerance: rated voltage ±6%.
• Gravity drain only.
• Height adjustable legs (150mm) included; installed height 1,333–1,356mm including legs.
• Dimensions: 630mm (W) x 719mm (D) x 1,333–1,356mm (H) including legs.
• Net weight: 69kg; packed weight: 81kg.
• Suitable for hard water conditions.
• Individually shaped crescent ice cubes with no ice bridging.
• Accessories included: instruction manual, ice scoop, check valve, and 150mm adjustable legs.
• 3-year parts and labour warranty on the entire unit.

Specifications

• Width (mm): 630
• Depth (mm): 719
• Height (mm): 1333
• Weight (kg): 350
• Packed Depth (mm): 750
• Packed Height (mm): 1500
• Packed Width (mm): 700
• Shipping Weight: 92
• Shipping Cubic: 0.640000000m3
• Ice Type: Crescent Ice
• Ice Size: Crescent
• Ice Storage: 55
• Ice Production: 130
• Ice Production 32°C (kg/day): 115
• Capacity (Litres): 130
• No. of Doors: 5711
• Power (kW): 1
• Energy Consumption (kWh/24h): 4.2 Amps
• Country of Origin: AU
