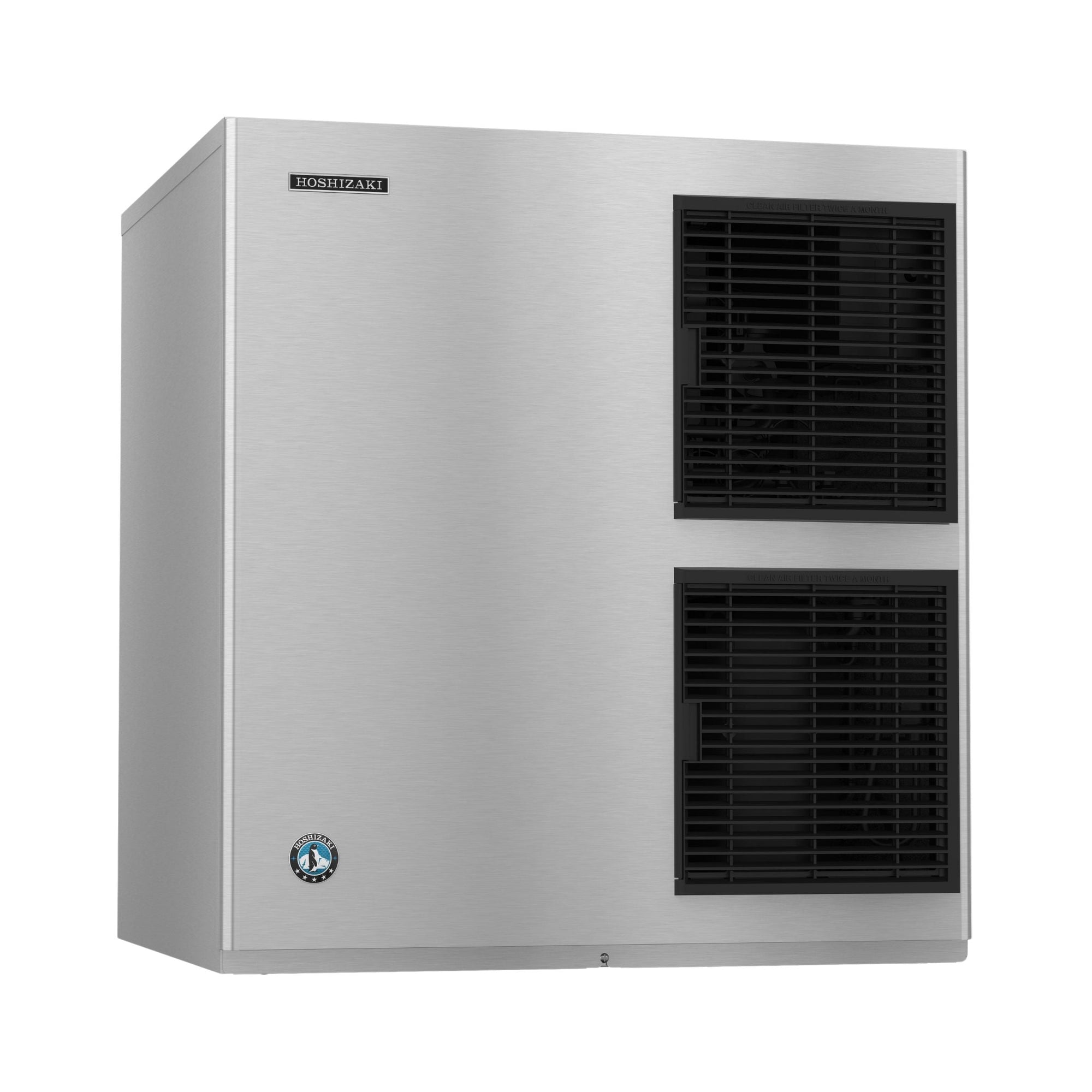

Hoshizaki KM-470AJ-S Modular Crescent Ice Maker Head 480kg/day

The Hoshizaki KM-470AJ-S is a high-capacity modular crescent ice maker head designed for demanding commercial operations such as nightclubs, stadiums, large bars, and entertainment venues. Producing approximately 480kg of ice per 24 hours under standard conditions, it utilises Hoshizaki's CycleSaver® technology with a double-sided stainless steel evaporator that forms ice on both sides simultaneously, delivering greater output in shorter cycle times while keeping energy consumption in check.

Hoshizaki's signature crescent ice is crystal clear, hard, and slow melting, which maintains beverage presentation and minimises dilution. The unit is a modular head only, meaning it pairs with a separately purchased ice storage bin, top kit, and water filter, giving operators the flexibility to configure the system to their exact storage requirements. The stainless steel exterior, front-accessible removable air filters, and the EverCheck™ diagnostic control board all contribute to straightforward daily operation and servicing.

Key Benefits

• High daily output of approximately 480kg keeps pace with fast-selling venues and large-scale events without interruption.
• CycleSaver® double-sided evaporator technology shortens freeze cycles to around 24 minutes, maximising ice availability during peak trading periods.
• Clear, hard crescent ice melts slowly, preserving drink quality and reducing the frequency of top-ups for a better customer experience.
• HoshiGuard Antimicrobial Agent protection throughout ice-contact surfaces supports food safety and hygiene compliance.
• EverCheck™ Control Board with audible alarm and built-in diagnostic capability helps service technicians identify and resolve faults quickly, minimising downtime.
• Easily removable and cleanable air filters on the front panel simplify routine maintenance without requiring tools or specialist knowledge.
• Modular head design is compatible with a range of Hoshizaki ice bins and dispensers, allowing flexible configuration to suit available floor space and storage needs.
• Single-phase 220-240V 50Hz power supply with a standard 15A plug means straightforward electrical installation in most commercial premises.
• Durable stainless steel exterior withstands the rigours of a busy kitchen or bar environment and is easy to wipe down.

Key Features

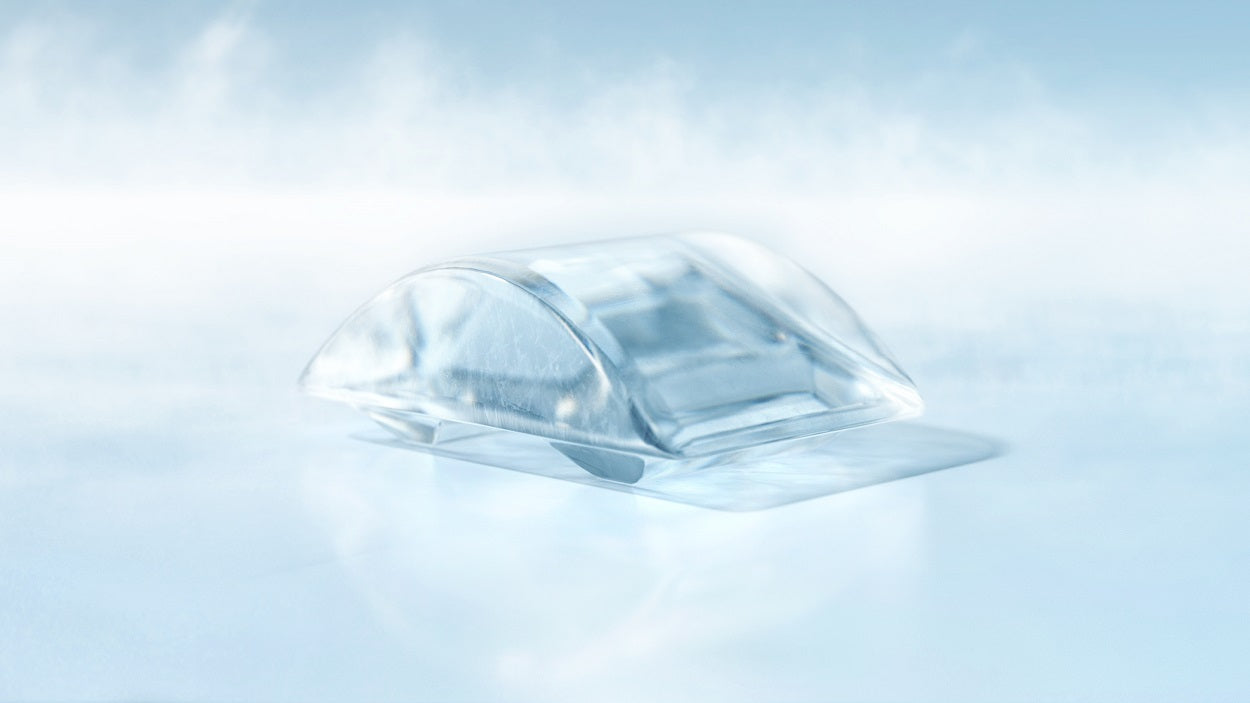

• Produces individually shaped premium crescent ice cubes, clear and slow melting for superior beverage presentation.
• CycleSaver® technology with a double-sided stainless steel evaporator generates ice on both sides per cycle, increasing output efficiency.
• Freeze cycle time: approximately 24 minutes, yielding approximately 9.7kg (around 960 cubes) per cycle.
• Production capacity: approximately 480kg per 24 hours at 21°C air / 15°C water; approximately 380kg per 24 hours at 32°C air / 21°C water.
• Air-cooled system for consistent, reliable performance across a wide range of ambient conditions (7°C to 38°C).
• EverCheck™ Control Board with audible alarm and diagnostic features to assist technicians in fault identification.
• HoshiGuard Antimicrobial Agent applied to ice-contact components to support ongoing hygiene standards.
• Durable stainless steel exterior construction.
• Easily removable and cleanable air filters located on the front panel for routine maintenance access.
• Single-phase 220-240V, 50Hz power supply; 15A plug; running current 11.2A, starting current 55A.
• Refrigerant: R404A (1,400g charge).
• Electrical consumption: 1,850W at 32°C air / 21°C water conditions.
• Water consumption: approximately 1.02m³ per day at 21°C air / 15°C water.
• Operating water temperature range: 7°C to 32°C; water pressure: 0.07 to 0.78 MPa (0.7 to 7.8 bar).
• Voltage operating range: 198V to 254V.
• Unit dimensions: 762mm (W) x 695mm (D) x 825mm (H); net weight 122kg.

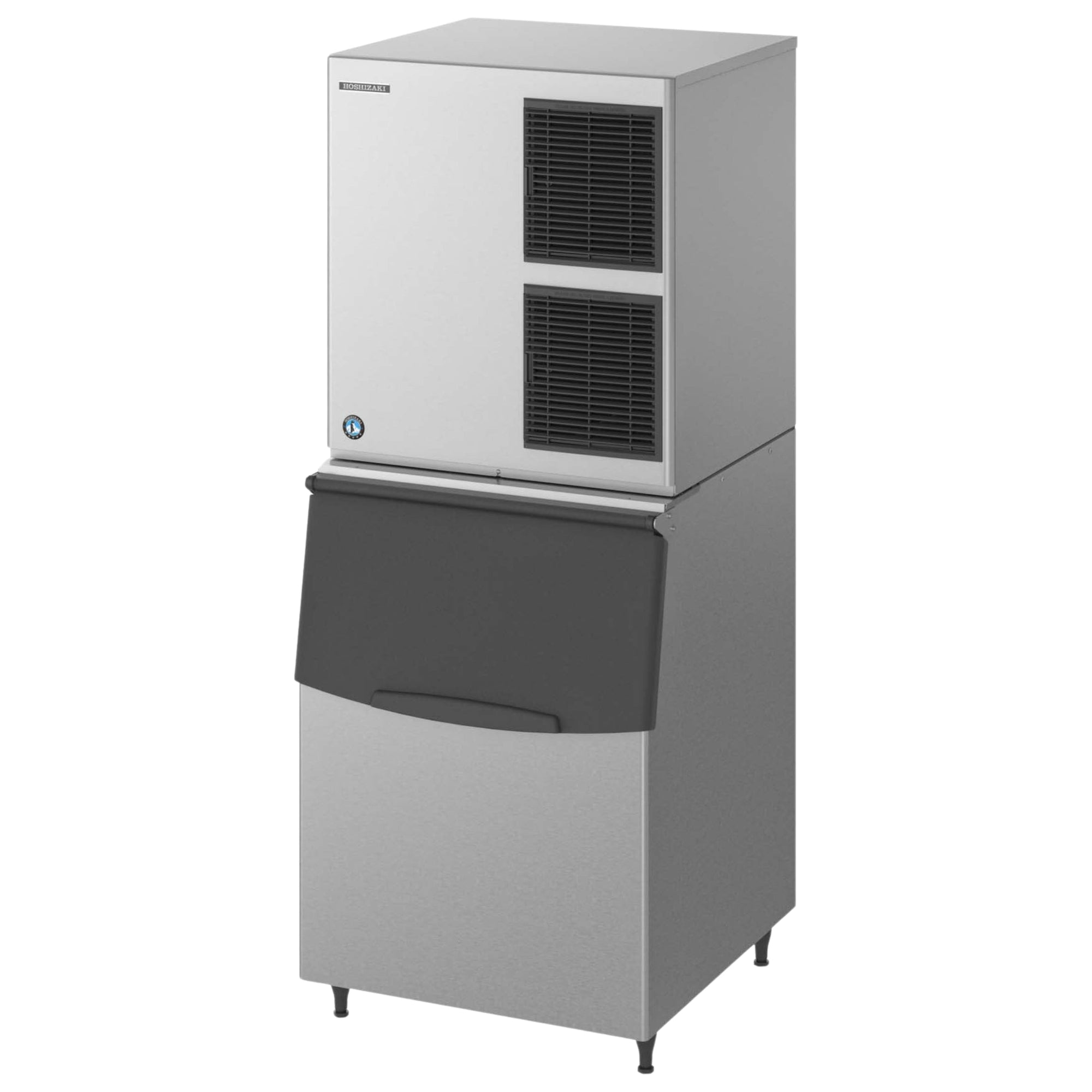

• Modular head only; ice storage bin, top kit, and water filter are sold separately.
• Compatible bins include B-501SA and B-801SA, each requiring one 18D top kit.

Specifications

• Weight (kg): 133
• Shipping Weight: 142
• Packed Width (mm): 800.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.576000000m3
• Ice Type: Crescent Ice
• Ice Size: Crescent Ice
• Ice Production: 480
• Country of Origin: AU
