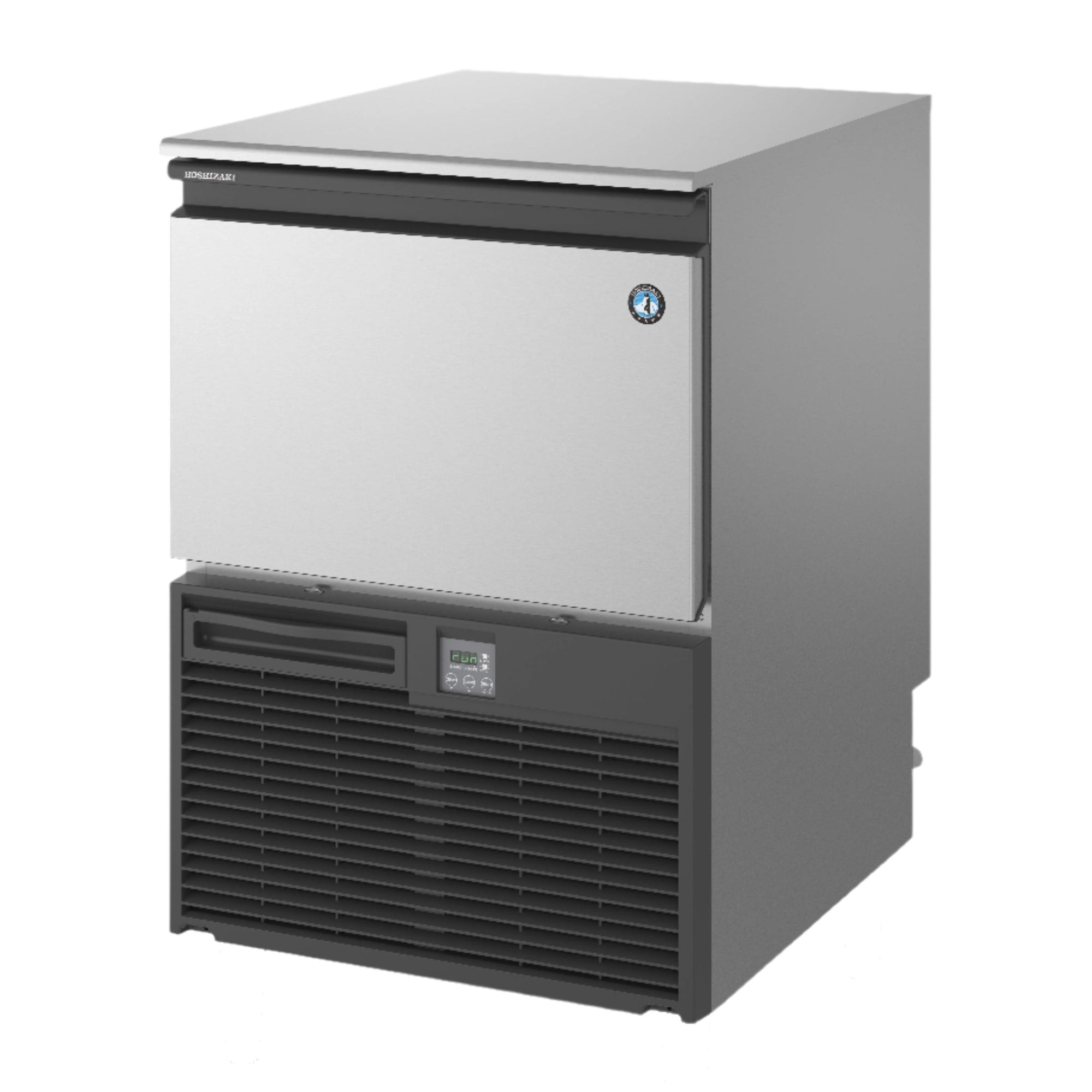

Hoshizaki 68Kg Crescent Ice Maker
Couldn't load pickup availability
Overview
This Hoshizaki KM-80C-HC is a self-contained Crescent Edge ice maker producing up to 75 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.
The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.
Individual premium crescent cube with no ice bridging.
Exceptionally hard crystal clear cubes that melt slowly.
Durable stainless steel exterior.
Slide in air filter at front for easy cleaning -maintaining performance efficiency.
Double-sided stainless steel evaporator for all water conditions -produces more ice in less cycles.
Flush mount to rear wall.
Good in hard water areas.
Snap in water tank design – easy to remove for sanitization.
Low electrical consumption.
Low water consumption.
LED lights and audible alarms.
3 year parts and labour warranty on entire unit.
| Production Capacity per 24hours | Approx. 75kg @ 10°C Air temp; 10°C Water Approx. 68kg @ 21°C Air temp; 15°C Water Approx. 55kg @ 32°C Air temp; 21°C Water |
| Max Storage Capacity | Approx. 34kg |
| Freeze Cycle Time | Approx. 23min |
| Ice Production Per cycle | Approx. 1.15kg / 130pcs |
| Width | 605mm |
| Depth | 712mm |
| Height | 988mm |
| Weight Net | 50kg |
| Packed Weight | 63kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10Amp Plug |
| Amperage | Running: 2.1A Starting: 12.5A |
| Refrigerant Charge | R290/147g |
| Operating Conditions | Ambient Temp.: 7-38°C Water Supply Temp.: 7-32°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6% |
| Additional Parts | 87000104 Low capacity Water Filter System 87000106 320mm Replacement Cartridge 87000148 Water Filter Kit & Guage 87000146 Water Filter 78000098 Drain pump 78000099 Drain pump 81000116 Stainless Steel Hose 95001013 Adjustable Leg |
Product Dimensions: 605(W) x 712(D) x 988(H)mm
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
Key features
Specifications
Documents & downloads
No documents have been added for this product.
Delivery & install
Crescent ice type
individually shaped, premium cubes and no ice bridging
Production capacity up to 68kg
Production capacity up to 68kg per day at 21°C air / 15°C water, or 55kg per day at 32°C air / 21°C water
Integrated storage bin
approximately 34kg capacity
CycleSaver® technology: enlarged, bonded double-sided
CycleSaver® technology: enlarged, bonded double-sided stainless steel evaporator producing ice on both sides for faster harvest cycles
