Overview

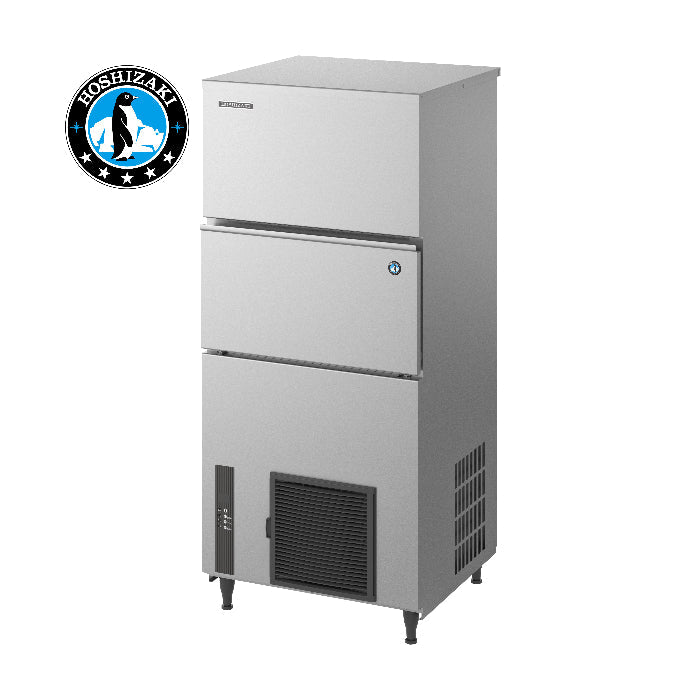

Hoshizaki IM-240NE-28 Self-Contained Cube Ice Maker – 205kg/24hr, 110kg Storage

The Hoshizaki IM-240NE-28 is a high-capacity, self-contained commercial cube ice maker producing up to 205kg of crystal-clear cube ice per 24 hours, with an integrated 110kg storage bin. Engineered for demanding hospitality environments including hotels, bars, restaurants, cocktail lounges, clubs, healthcare facilities, and catering operations, it delivers a continuous supply of premium 28mm cubes that melt slowly and maintain drink integrity without diluting flavour.

Every ice cycle uses fresh water through Hoshizaki's unique closed-cell water circuit, guaranteeing hygienic, odour-free ice with exceptional clarity and consistency. Intelligent microcomputer controls, automatic rinse and flush cycles, and built-in safety protections work together to optimise performance while minimising water and energy consumption, making this unit a reliable workhorse for high-volume beverage service.

Key Benefits

• Produces up to 205kg of ice per day under standard conditions (21°C air, 15°C water), ensuring supply keeps pace with even the busiest service periods.
• The large 28mm cube format melts slowly, protecting the flavour and presentation of premium cocktails, whisky, and spirits.
• Fresh water is used for every individual ice cycle via the closed-cell water circuit, eliminating contamination risk and producing hygienically clean, odour-free ice.
• Front panel air intake and exhaust allows the unit to be installed flush in a built-in configuration without requiring side clearance.
• Intelligent microcomputer controls continuously adjust the ice-making process to maintain peak output across varying ambient conditions.
• Automatic rinse and flush cycles reduce manual cleaning requirements and help maintain ice quality and machine hygiene between scheduled services.
• Easily accessible front air filter can be removed and washed without tools, reducing the risk of costly service callouts caused by restricted airflow.
• Single-phase 10A power connection keeps installation simple, and the adjustable legs (70–110mm range) allow levelling on uneven floors.
• Each freeze cycle takes approximately 20 minutes and yields around 3.2kg (approximately 140 cubes), providing a predictable, consistent production rhythm throughout the day.

Key Features

• Ice production: approximately 205kg per 24 hours at 21°C air temperature and 15°C water temperature; approximately 160kg per 24 hours at 32°C air temperature and 21°C water temperature.
• Integrated 110kg ice storage bin.
• 28mm x 28mm x 32mm half-cube format – crystal-clear, exceptionally hard, slow-melting cubes.
• Self-contained unit: ice maker and storage bin in a single footprint.
• Closed-cell water circuit ensures fresh water is used for each ice cycle, providing ultimate contamination protection.
• Intelligent microcomputer controller manages the ice-making process for peak efficiency in any ambient condition.
• New-generation intelligent control circuit specifically designed to reduce power and water consumption.
• 7-segment operational display panel for straightforward status monitoring and ease of use.
• Built-in safety protections: freeze cycle back-up timer, defrost back-up, low voltage protector, and high amperage protector.
• Auto rinse and flush cycle maintains internal hygiene automatically.
• Air-cooled condensing unit with front panel in-and-out airflow, suitable for built-in installation.
• Easily accessible and washable front condenser air filter.
• Durable stainless steel exterior construction.
• Refrigerant: R404A.
• Gravity drain only.
• Single-phase, 10A power supply; 6.6kWh energy consumption per 24 hours.
• Adjustable legs with a 70–110mm height range for levelling.
• Dimensions: 704mm (W) x 665mm (D) x 1580mm (H) including legs.
• Unit weight: 128kg.
• Freeze cycle duration: approximately 20 minutes, producing approximately 3.2kg (around 140 cubes) per cycle.
• Rated for operation up to 40°C ambient temperature, suitable for tropical conditions.
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil.

Specifications

• Width (mm): 704
• Depth (mm): 1580
• Height (mm): 665
• Weight (kg): 220
• Packed Depth (mm): 900
• Packed Height (mm): 800
• Packed Width (mm): 1700
• Shipping Weight: 122
• Shipping Cubic: 0.706922000m3
• Ice Type: Cube Ice
• Ice Size: 28
• Ice Storage: 110
• Ice Production: 205
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 10
• Energy Consumption (kWh/24h): 6.6 Amps
• Country of Origin: AU
