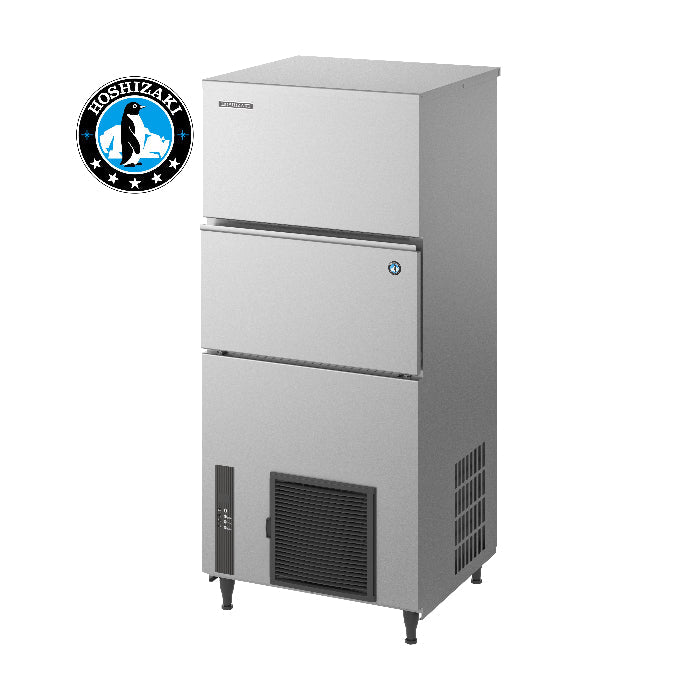

Hoshizaki IM-240NE-21 Self-Contained Half Cube Ice Maker 180kg/day

The Hoshizaki IM-240NE-21 is a high-capacity, self-contained commercial cube ice maker producing up to 180kg of crystal-clear half cube ice per 24 hours, with an integrated 110kg storage bin for continuous supply. Designed for hotels, bars, restaurants, clubs, healthcare facilities and catering operations, it combines robust stainless steel construction with intelligent electronic controls to deliver consistent, hygienic ice production around the clock.

Each ice cycle draws fresh water through Hoshizaki's unique closed-cell water circuit, producing exceptionally hard, slow-melting 21mm x 21mm x 14mm half cubes that preserve the integrity and flavour of premium beverages including cocktails. Automatic rinse and flush cycles, an easily accessible front air filter, and a comprehensive suite of built-in safety protections keep the machine running efficiently with minimal operator intervention.

Key Benefits

• Continuous high-volume output of up to 180kg per day keeps pace with demanding beverage service during peak trading periods.
• Hard, crystal-clear cubes melt slowly, reducing dilution and maintaining drink quality for premium cocktails and other beverages.
• Fresh water is used for every ice cycle via the closed-cell water circuit, minimising impurities and protecting against contamination.
• Automatic rinse and flush cycles reduce mineral build-up and maintain hygiene standards without manual intervention.
• Intelligent microcomputer control optimises the ice-making process across varying ambient conditions, reducing energy and water consumption.
• Front panel air intake and exhaust enables built-in or under-counter installation where space is at a premium.
• Easily accessible, washable front condenser air filter simplifies routine maintenance and reduces costly service callouts.
• Adjustable legs (70mm to 110mm) allow levelling on uneven floors during installation.
• The 110kg integrated storage bin eliminates the need for a separate bin, reducing equipment footprint and installation cost.

Key Features

• Produces approximately 180kg of ice per 24 hours at 21°C air temperature and 15°C water temperature.
• Produces approximately 165kg of ice per 24 hours at 32°C air temperature and 21°C water temperature.
• Rated for operation in ambient temperatures up to 40°C, suitable for tropical conditions.
• Half cube ice dimensions: 21mm x 21mm x 14mm.
• Approximately 15-minute freeze cycle yielding roughly 2.1kg or 360 cubes per cycle.
• Integrated 110kg ice storage bin.
• Self-contained, all-in-one design with air-cooled condensing unit.
• Refrigerant: R404A.
• Unique closed-cell water circuit prevents contamination and ensures consistently high ice quality.
• Fresh water used for every individual ice cycle.
• Auto rinse and flush cycle to minimise mineral scale and maintain hygiene.
• Intelligent microcomputer controller manages the ice-making process for peak performance under varying conditions.
• New 7-segment operational display panel for straightforward monitoring and ease of use.
• Built-in safety protections including freeze cycle back-up timer, defrost back-up, low voltage protector, and high amp protector.
• Durable stainless steel exterior construction.
• Front panel airflow (in and out) supports built-in installation.
• Easily accessible and washable front condenser air filter.
• Gravity drain only.
• Adjustable legs ranging from 70mm to 110mm.
• Single phase power supply, 10 amp.
• Energy consumption: 6.6 kWh per 24 hours.
• Unit weight: 128kg.
• Dimensions: 704mm (W) x 665mm (D) x 1580mm (H) including legs.
• Can be stacked with compatible storage bins to multiply ice production capacity.
• Suitable for hotels, bars, restaurants, clubs, healthcare facilities, catering operations, and large hospitality venues.

Specifications

• Width (mm): 704
• Depth (mm): 1580
• Height (mm): 665
• Weight (kg): 350
• Packed Depth (mm): 900
• Packed Height (mm): 800
• Packed Width (mm): 1700
• Shipping Weight: 122
• Shipping Cubic: 0.706922000m3
• Ice Type: Cube Ice
• Ice Size: 21
• Ice Storage: 110
• Ice Production: 180
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 10
• Energy Consumption (kWh/24h): 6.6 Amps
• Country of Origin: AU
