Overview

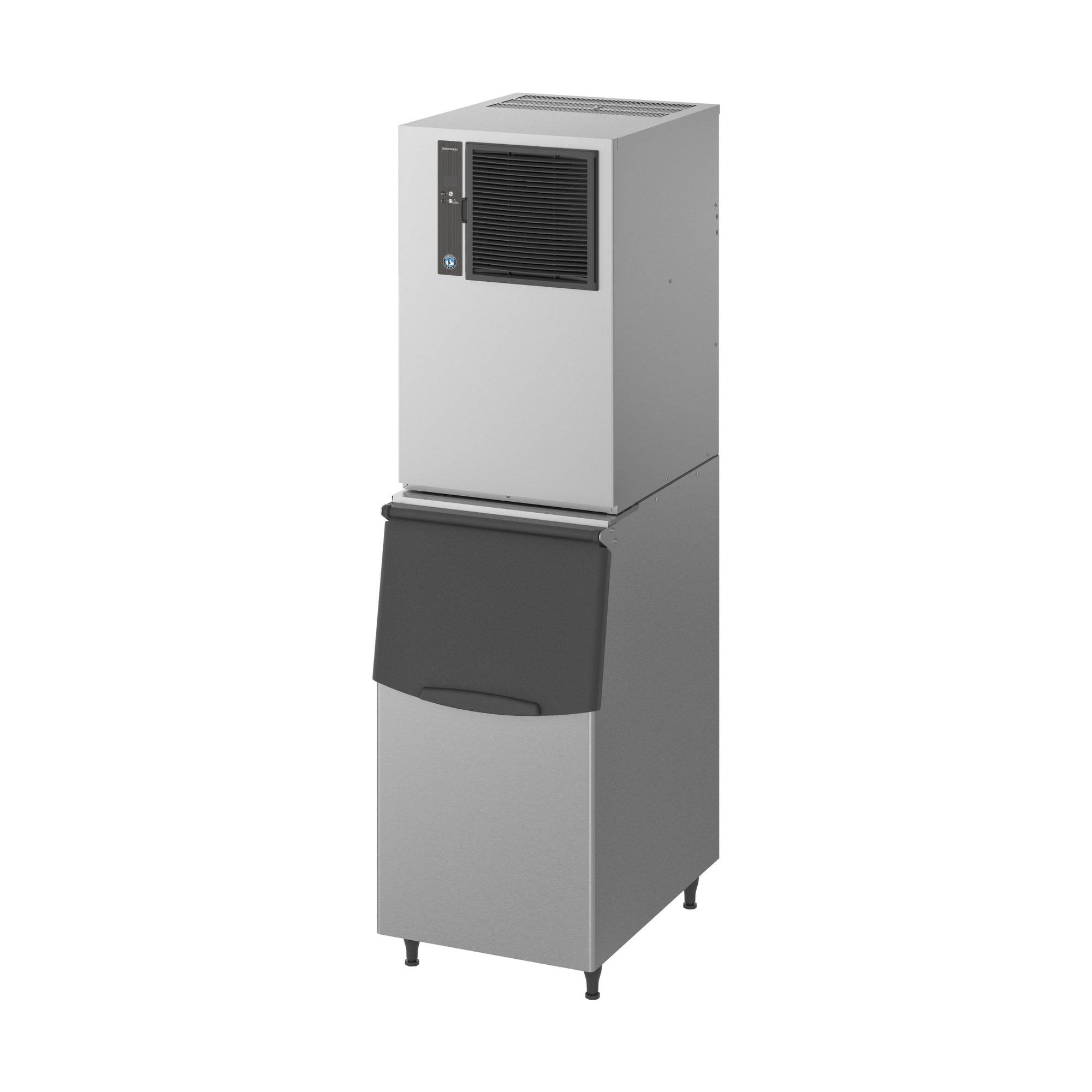

Hoshizaki IM-240ANE-28 Modular Cube Ice Maker Head 205kg/day

The Hoshizaki IM-240ANE-28 is a high-capacity modular ice maker head producing up to 205kg of premium 28x28x32mm cube ice per 24 hours, making it well suited to hotels, bars, restaurants, cocktail lounges, clubs, healthcare facilities, and catering operations with demanding ice requirements. As a head-only unit, it pairs with a compatible Hoshizaki ice storage bin and top kit to create a fully customised ice station sized to suit your venue's throughput.

Every ice cycle is produced using fresh water through Hoshizaki's unique closed-cell water circuit, delivering exceptionally hard, crystal-clear cubes that melt slowly and preserve the flavour and integrity of premium beverages. An intelligent microcomputer controller, 7-segment operational display, and built-in safety protections ensure the machine operates at peak efficiency in any conditions, while an air-cooled condenser with front-panel airflow makes the unit suitable for built-in installation.

Key Benefits

• Up to 205kg of ice per day at 21°C air and 15°C water temperatures keeps high-volume service running without interruption.
• Large 28x28x32mm cubes melt slowly, reducing dilution in premium cocktails, whisky, and spirits service for a superior guest experience.
• Fresh water used in every ice cycle produces crystal-clear, hard cubes with minimal impurities, supporting both hygiene and presentation standards.
• Intelligent control circuit actively manages power and water consumption, lowering operating costs over the life of the machine.
• Front-panel air intake and exhaust allows flush built-in installation, preserving bench space and enabling flexible kitchen or bar placement.
• Easily accessible, washable front condenser air filter reduces the need for costly service callouts and keeps maintenance straightforward.
• Inbuilt safety features including a freeze-cycle backup timer, defrost backup, low-voltage protection, and high-amp protector minimise downtime and protect the investment.
• Modular stackable design allows the ice maker head to be paired with multiple Hoshizaki bin configurations, scaling storage capacity as operational needs grow.
• Rated for operation at up to 40°C ambient temperature, making the unit reliable in tropical Australian climates.

Key Features

• Modular ice maker head only -- compatible Hoshizaki ice storage bin and top kit sold separately (B-501SA bin requires 1x 8D top kit; B-801SA bin requires 1x 8D + 18D top kit).
• Ice production: approximately 205kg per 24 hours at 21°C air temperature and 15°C water temperature; approximately 160kg per 24 hours at 32°C air temperature and 21°C water temperature.
• Ice type: cube ice; cube dimensions 28mm x 28mm x 32mm.
• Refrigerant: R404A.
• Air-cooled condensing unit with front-panel air intake and exhaust for built-in installation.
• Rated at 40°C ambient temperature for tropical conditions.
• Unique closed-cell water circuit provides maximum protection against contamination and ensures consistent ice quality.
• Each ice cycle made with fresh water for superior cube clarity and hygiene.
• Exceptionally hard, crystal-clear cubes with a slow melt rate.
• Microcomputer controller manages the ice-making process to maintain peak performance across varying conditions.
• New 7-segment operational display panel for at-a-glance monitoring and ease of use.
• Intelligent control circuit dedicated to reducing power and water consumption.
• Auto rinse and flush cycle eliminates mineral build-up and maintains hygiene standards.
• Inbuilt safety protections: freeze-cycle backup timer, defrost backup, low-voltage protector, and high-amp protector.
• Stackable design allows multiple heads to be combined to multiply ice production capacity.
• Durable stainless steel exterior construction.
• Easily accessible and washable front condenser air filter.
• Gravity drain only.
• Single-phase power supply, 10 amp.
• Energy consumption: 6.6 kWh per 24 hours.
• Dimensions: 560mm (W) x 700mm (D) x 880mm (H); weight approximately 95kg.
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil.
• Suitable for hotels, bars, restaurants, cocktail lounges, clubs, healthcare facilities, catering operations, and hospitality venues.

Specifications

• Width (mm): 560
• Depth (mm): 880
• Height (mm): 700
• Weight (kg): 350
• Packed Depth (mm): 700
• Packed Height (mm): 800
• Packed Width (mm): 900
• Shipping Weight: 91
• Shipping Cubic: 0.344960000m3
• Ice Type: Cube Ice
• Ice Size: 28
• Ice Production: 205
• Mobility: 5809
• Energy Consumption (kWh/24h): 6.6 Amps
• Country of Origin: AU
