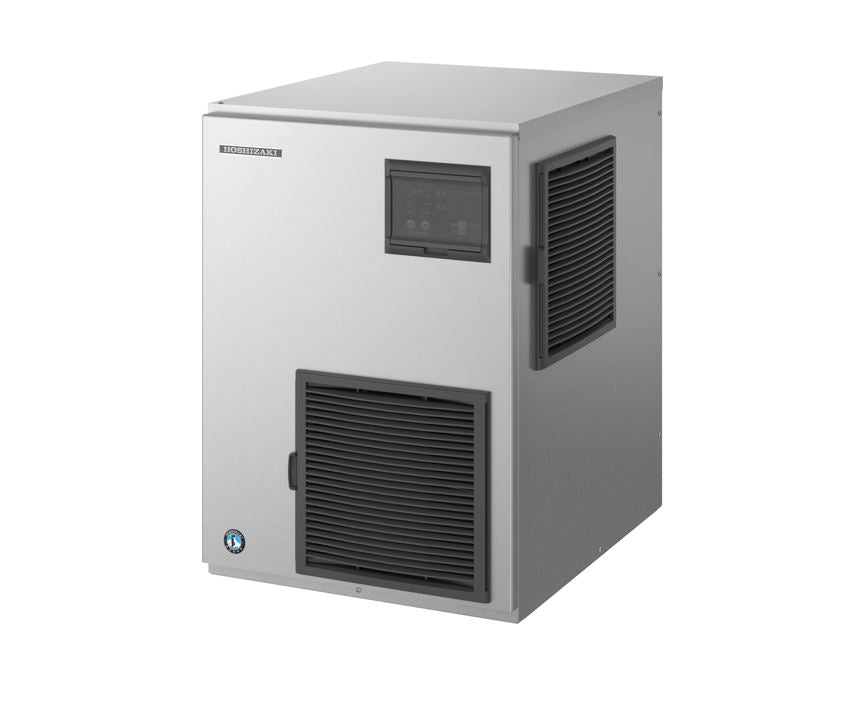

Hoshizaki FM-480AKE Flake Ice Machine 425kg/day

The Hoshizaki FM-480AKE is a modular flake ice machine producing approximately 425 kg of flake ice per day under standard conditions (21°C air, 15°C water), making it a high-output solution for commercial kitchens, supermarkets, healthcare facilities, catering operations, cocktail bars and seafood displays. Hoshizaki flake ice consists of roughly 70% ice and 30% water, delivering a soft, pliable ice ideal for cooling, food presentation and even medical applications such as organ transportation.

Powered by a proven auger-driven ice-making system, the FM-480AKE uses water at a rate precisely matched to ice production, minimising waste and running costs. The unit operates on a standard 10-amp plug, consumes just 8.4 kWh per 24 hours, and uses R404A refrigerant with gravity drain only. A storage bin is not included and must be specified separately. With its robust carbon auger bearings, automatic flush function and operational status display, this machine is engineered for reliable, low-maintenance daily performance.

Key Benefits

• High daily output of approximately 425 kg at standard conditions (and around 325 kg at elevated 32°C air/21°C water conditions) keeps busy operations continuously supplied with fresh flake ice.
• Flake ice eliminates freeze burn concerns when displaying fresh fish, seafood, produce and bottled beverages, preserving product quality and presentation.
• The auger system matches water consumption directly to ice production, reducing water waste and lowering operating costs compared with conventional ice-making methods.
• Carbon auger bearings offer a longer service life than roller bearings, reducing the frequency and cost of maintenance interventions.
• The automatic flush function actively cleans the ice-making system, supporting food safety and hygiene with minimal manual effort.
• An operational status display on the controller board simplifies troubleshooting, helping technicians diagnose issues quickly and minimise downtime.
• Runs on a standard 10-amp plug with low energy consumption of 8.4 kWh per 24 hours, keeping electricity costs manageable even during extended operation.
• The unit can be converted to produce nugget ice by changing the extruding head and cutter, providing versatility as operational needs evolve (conversion parts available at additional cost).
• Backed by a 2-year parts and labour warranty on the entire unit plus a 5-year parts-only warranty on the compressor and air-cooled condenser coil, offering strong long-term peace of mind.

Key Features

• Flake ice output: approximately 425 kg per day at 21°C air temperature and 15°C water temperature; approximately 325 kg per day at 32°C air and 21°C water.
• Flake ice composition of approximately 70% ice and 30% water for effective cooling and gentle product contact.
• Auger-driven ice-making system with water consumption equal to ice production, eliminating excess water waste.
• Carbon auger bearings provide extended service life compared with roller bearing alternatives.
• Automatic flush function maintains cleanliness of the ice-making system.
• Controller board with operational status display to assist with troubleshooting and system monitoring.
• Convertible to nugget ice production by swapping the extruding head and cutter (additional cost parts required).
• Refrigerant: R404A.
• Gravity drain only configuration.
• Power: 1 kW; energy consumption 8.4 kWh per 24 hours; operates on a standard 10-amp plug.
• Modular design; compatible storage bin sold separately.
• Dimensions: 560 mm (W) x 700 mm (D) x 780 mm (H); weight 102 kg.
• 2-year parts and labour warranty on the complete unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil.
• Suitable for a wide range of applications including food retail displays, healthcare and medical transport, catering, supermarket chains and bar service.
• Country of origin: Australia.

Specifications

• Width (mm): 560
• Depth (mm): 780
• Height (mm): 700
• Weight (kg): 102
• Packed Depth (mm): 820
• Packed Height (mm): 950
• Packed Width (mm): 665
• Shipping Weight: 102
• Shipping Cubic: 0.307200000m3
• Ice Type: FLAKE
• Ice Size: FLAKE
• Ice Production: 425
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 8.4 Amps / 10Amp Plug
• Country of Origin: AU
