Overview

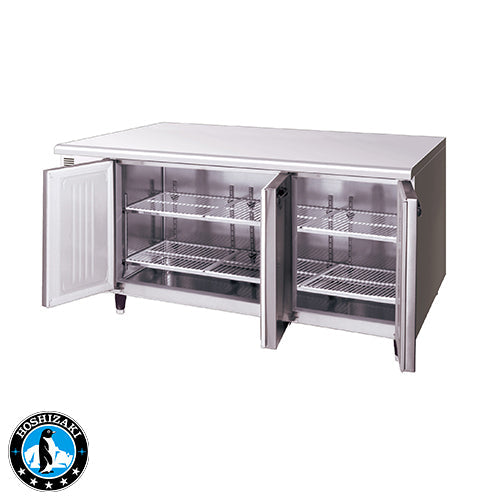

Hoshizaki FTE-170SDA-GN-ML 3 Door Pillarless Underbench Freezer

The Hoshizaki FTE-170SDA-GN-ML is a 700mm deep, three-door pillarless underbench freezer built for the demands of busy commercial kitchens. Its pillarless interior design eliminates the centre pillar found in conventional units, allowing trays and containers of varying sizes to be stored freely across the full width of the cabinet, maximising every litre of the 412L capacity. The stainless steel worktop doubles as a food preparation surface, and the slim compressor profile saves up to 20% more space compared to other units in its class.

Constructed with a stainless steel exterior and top, an interior of stainless steel and ABS plastic, and galvanised steel on the rear and bottom panels, this freezer is built to resist rust, accidental damage, and the rigours of daily cleaning. Forced air circulation maintains consistent temperatures throughout, while a programmable microprocessor controller keeps the cabinet operating between -25°C and -7°C across ambient environments of 5 to 43°C. The unit comes standard with four lockable 115mm castors for easy repositioning, and optional adjustable legs (150-180mm) are available separately.

Key Benefits

• Pillarless interior allows full-width access so trays and containers of any size can be loaded and retrieved without restriction, reducing handling time during service.
• 412L storage capacity across three doors provides generous frozen stock holding for high-volume kitchen operations.
• Stainless steel worktop is food-safe and suitable for use as a preparation surface, making the most of limited bench space.
• Slim compressor design saves up to 20% more floor space compared to comparable underbench freezers, ideal for tight kitchen layouts.
• Microprocessor controller with programmable electronic display gives precise, repeatable temperature management between -25°C and -7°C.
• Forced air circulation ensures uniform temperature distribution throughout the cabinet, protecting food quality and safety during busy service periods.
• Four lockable castors (115mm) allow the unit to be repositioned easily for cleaning or kitchen reconfiguration, with optional fixed legs available for permanent installations.
• Compressor is designed for easy access and removal, simplifying routine maintenance and reducing downtime.
• Backed by a 2-year parts and labour warranty, providing confidence in long-term reliability.

Key Features

• Three-door pillarless configuration with no centre pillar, accommodating trays and containers of varying sizes across the full interior width.
• Maximum storage capacity of 412L.
• Six shelves included (two per door section).
• Stainless steel exterior and top panel; interior lining of stainless steel and ABS plastic; rear and bottom panels in galvanised steel.
• Programmable microprocessor electronic controller and display.
• Temperature range adjustable from -25°C to -7°C.
• Forced air circulation refrigeration system.
• Refrigerant: R404A.
• Operating ambient temperature range: 5°C to 43°C.
• Power supply: 240V, 50Hz, single phase (3.4 amps); 10 amp plug.
• Slimmest compressor in its class, saving up to 20% space compared to competitor units.
• Easy-access compressor design for efficient servicing and maintenance.
• Stainless steel worktop suitable for food preparation use.
• Comes standard with 4 x lockable castors (115mm); castors are included in the stated height dimension of 815mm.
• Optional adjustable legs (150-180mm) available separately.
• External dimensions: W1660 x D700 x H815mm (including 115mm castors).
• Internal dimensions: W1290 x D527 x H588mm.
• Solid door construction.
• Manufactured in Australia.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 1660
• Depth (mm): 700
• Height (mm): 815
• Weight (kg): 278
• Shipping Weight: 120
• Packed Width (mm): 1660.0
• Packed Height (mm): 1000
• Packed Depth (mm): 600.0
• Shipping Cubic: 0.996000000m3
• Drawers: 3 DOOR - PILLARLESS
• No. of Doors: 3
• Door Type: Solid
• Voltage (V): 240
• Country of Origin: AU
