Overview

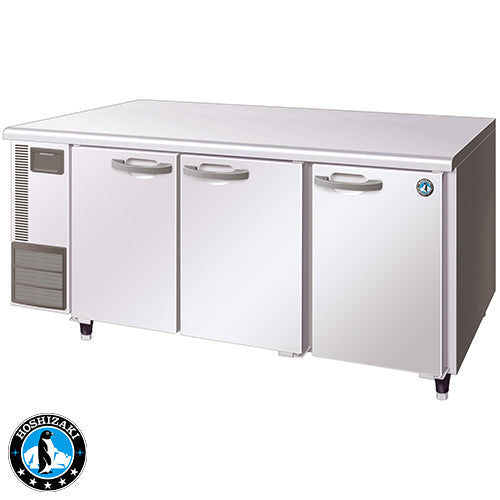

Hoshizaki FTE-170SDA-GN 3-Door Underbench Freezer

The Hoshizaki FTE-170SDA-GN is a professional-grade three-door underbench freezer built to handle the demands of busy commercial kitchens. Measuring 1660 mm wide and designed to fit neatly beneath standard bench heights at 815 mm tall (including 115 mm castors), it delivers 412 litres of Gastronorm-compatible frozen storage in a compact footprint that suits prep areas, service lines and cool rooms alike.

Constructed with a stainless steel interior and exterior, the unit features a microprocessor-controlled refrigeration system with a programmable digital controller and display, adjustable temperature range of -23°C to -7°C, and forced air circulation for consistent freezing performance. Six adjustable 1/1 Gastronorm shelves with rails, a compact slide-out refrigeration unit for simplified maintenance, and four lockable castors for easy repositioning make this freezer a practical long-term investment for any commercial operation.

Key Benefits

• Three-door configuration with six adjustable Gastronorm shelves provides generous, well-organised frozen storage that keeps frequently used ingredients within easy reach during service.
• Forced air circulation maintains even temperatures throughout the cabinet, reducing hot spots and protecting food quality across all shelf levels.
• Microprocessor controller with digital display allows precise temperature programming between -23°C and -7°C, giving operators flexibility for different frozen product requirements.
• Compact slide-out refrigeration unit simplifies routine servicing and maintenance, minimising downtime and reducing the need for specialist tools or extensive disassembly.
• Four 115 mm lockable castors allow the unit to be repositioned easily for cleaning or kitchen reconfiguration, then locked securely in place during operation.
• Stainless steel interior and exterior surfaces are hygienic, corrosion-resistant and straightforward to clean, supporting food safety compliance in high-traffic environments.
• Rated for ambient temperatures from 5°C to 43°C, making it suitable for a wide range of kitchen environments including those with high ambient heat.
• Backed by a 2-year parts and labour warranty, providing confidence in long-term reliability and reduced total cost of ownership.

Key Features

• Three solid doors with Gastronorm-compatible interior organisation
• 412-litre total storage capacity
• Six adjustable 1/1 Gastronorm shelves with retaining rails (two per door section)
• Microprocessor-controlled system with programmable digital controller and display
• Temperature range adjustable from -23°C to -7°C
• Forced air circulation for uniform cabinet temperature
• Compact slide-out refrigeration unit for quick and easy maintenance access
• Stainless steel interior and exterior; galvanised steel rear and bottom panels; ABS plastic accents
• Stainless steel top surface
• Refrigerant: R404A
• Four 115 mm lockable castors included as standard
• Optional adjustable legs (150-180 mm) available separately
• Operating ambient temperature range: 5°C to 43°C
• Power supply: 240V, 50Hz, single phase (3.4 amps), 1 kW
• Dimensions: 1660 mm (W) x 700 mm (D) x 815 mm (H) including castors
• Weight: 103 kg
• 2-year parts and labour warranty

Specifications

• Width (mm): 1660
• Depth (mm): 700
• Height (mm): 815
• Weight (kg): 278
• Packed Depth (mm): 800
• Packed Height (mm): 950
• Packed Width (mm): 1300
• Drawers: 3 DOOR - GASTRONORM
• No. of Doors: 5713
• Mobility: 5810
• Door Type: Solid
• Capacity (Litres): 412
• Power (kW): 1
• Voltage (V): 240
