Overview

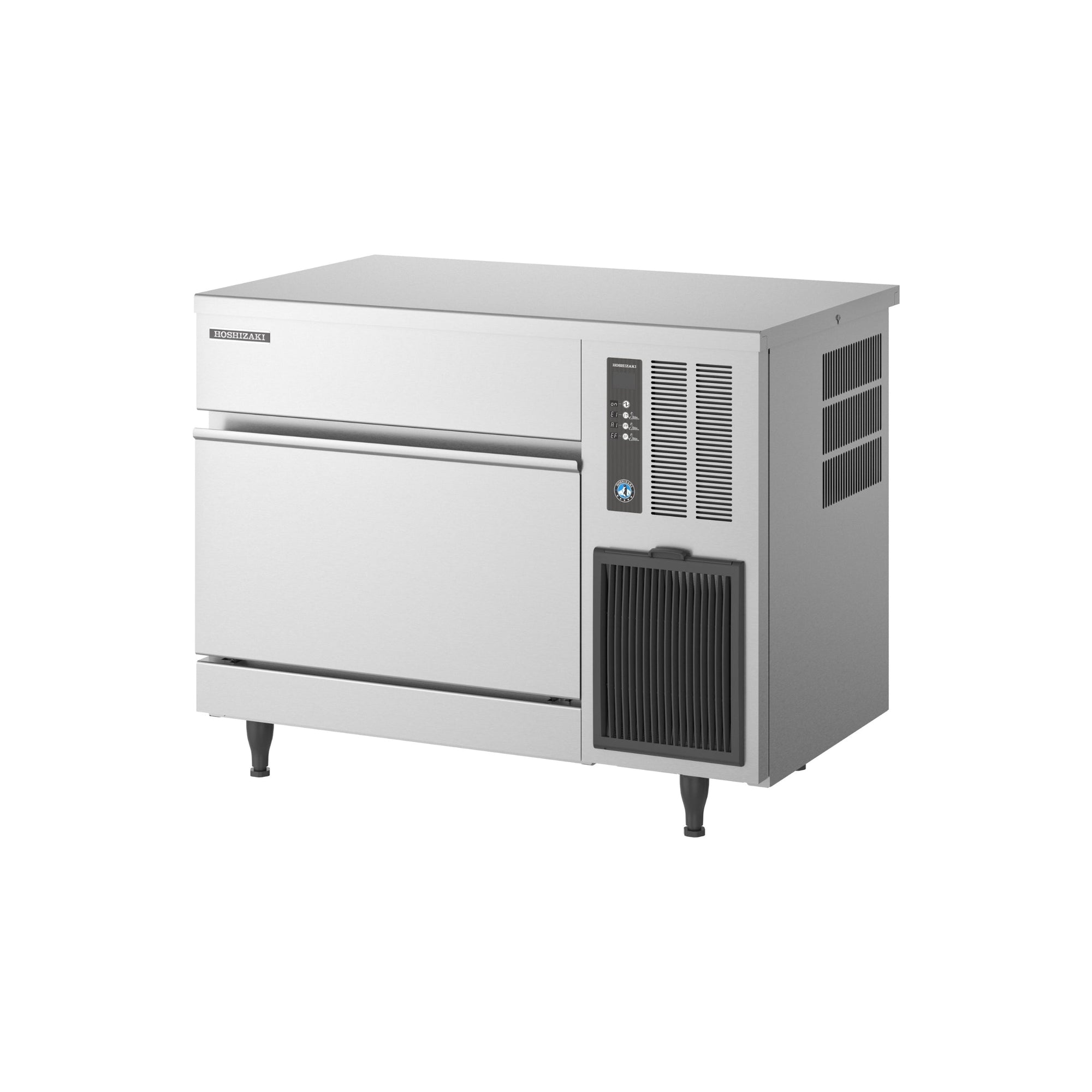

Hoshizaki IM-100CNE-28 Self-Contained Undercounter Cube Ice Maker – 83kg/Day

The Hoshizaki IM-100CNE-28 is a self-contained undercounter commercial cube ice maker capable of producing up to 83kg of premium crystal-clear 28mm cube ice every 24 hours, paired with a 38kg integrated storage bin. Its compact footprint and front-panel air intake and exhaust make it ideal for true built-in undercounter installation in a wide range of commercial settings, including food and beverage venues, accommodation providers, aged care and medical facilities, event catering businesses, and hospitality operations of all kinds.

Hoshizaki's closed-cell water circuit draws fresh water into every individual ice cycle, yielding exceptionally hard, slow-melting cubes with precise shape and outstanding clarity. An intelligent microcomputer controller and new 7-segment operational display panel manage and monitor the entire ice-making process, while an energy-efficient design, automatic rinse and flush cycles, and comprehensive built-in safety protections keep running costs low. The unit carries a tropical rating for reliable year-round operation in Australian commercial kitchen environments up to 40°C ambient.

Key Benefits

• Delivers up to 83kg of cube ice per 24 hours at 21°C air and 15°C water, or approximately 73kg at 32°C air and 21°C water, ensuring a consistent supply throughout the busiest service periods.
• Large 28mm crystal-clear cubes melt slowly and minimally dilute beverages, protecting the flavour and presentation of premium cocktails, spirits, and upscale drinks.
• Front-panel air inlet and exhaust enables genuine built-in undercounter installation with no side clearance required, maximising usable space behind the bar or in tight kitchen layouts.
• The closed-cell water circuit uses a fresh water charge for every cycle, eliminating contamination risk and delivering hygienic, high-clarity ice batch after batch.
• An intelligent microcomputer controller continuously optimises the freeze cycle for prevailing ambient conditions, cutting unnecessary energy and water consumption.
• Automatic rinse and flush cycles reduce manual cleaning workload and help sustain ice quality and machine hygiene over extended periods of use.
• Integrated safety protections — including a compressor high amp protector, low voltage protector, freeze cycle safety timer, and defrost safety function — minimise downtime and safeguard the refrigeration system.
• The front condenser air filter can be removed and washed without tools, keeping routine maintenance quick and straightforward.
• Tropical-rated for operation up to 40°C ambient temperature, ensuring dependable performance across warm Australian commercial environments throughout the year.

Key Features

• Ice production: approximately 83kg per 24 hours at 21°C air temperature and 15°C water temperature; approximately 73kg per 24 hours at 32°C air temperature and 21°C water temperature.
• Integrated storage bin capacity: 38kg.
• Cube dimensions: 28mm x 28mm x 32mm.
• Freeze cycle: approximately 29 minutes, producing approximately 1.8kg (around 80 cubes) per cycle.
• Self-contained undercounter design with all refrigeration components integrated into the unit.
• Air-cooled condensing unit with front-panel inlet and exhaust airflow for built-in installation.
• Rated for operation up to 40°C ambient temperature (tropical rating).
• Refrigerant: R134A.
• Unique closed-cell water circuit provides complete contamination protection.
• Fresh water used for each individual ice cycle.
• New intelligent control circuit dedicated to reducing power and water consumption.
• Microcomputer controller manages the ice-making process to maintain peak performance under varying conditions.
• New 7-segment operational display panel for straightforward monitoring and diagnostics.
• Built-in safety protections: freeze cycle safety timer, defrost safety function, low voltage protector, and high amp protector.
• Automatic rinse and flush cycle maintains hygiene and ice quality.
• Durable stainless steel exterior construction.
• Easily accessible and removable front condenser air filter for routine cleaning.
• Gravity drain only.
• Adjustable legs included, height range 90mm to 125mm.
• Unit dimensions: width 1004mm x depth 600mm x height 800mm.

Specifications

• Width (mm): 1004
• Depth (mm): 800
• Height (mm): 600
• Weight (kg): 350
• Packed Depth (mm): 1200
• Packed Height (mm): 800
• Packed Width (mm): 900
• Shipping Weight: 90
• Shipping Cubic: 0.481920000m3
• Ice Type: Cube Ice
• Ice Size: 28
• Ice Storage: 38
• Ice Production: 83
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 4.1 Amps
• Country of Origin: AU
