Overview

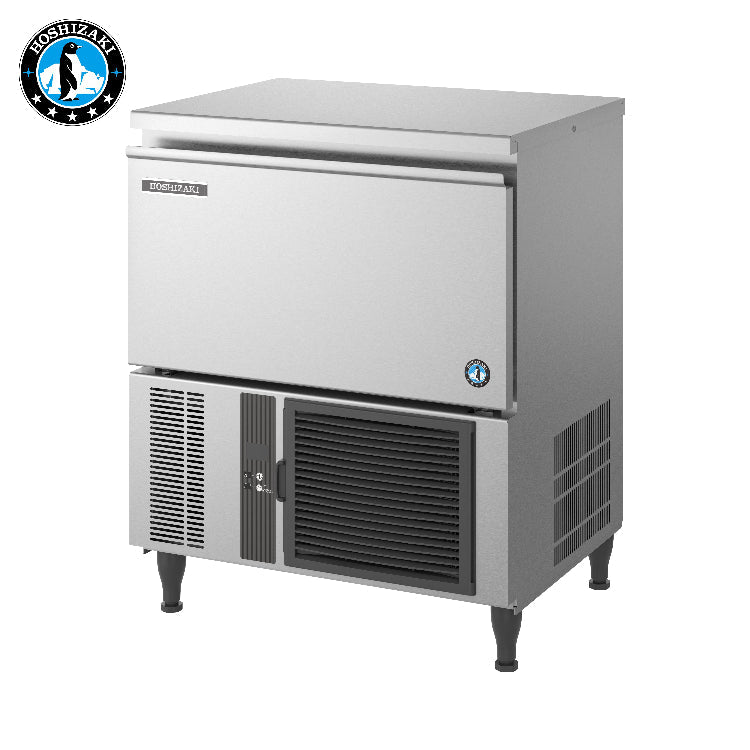

Hoshizaki IM-45CNE-25 Ice Maker Cuber 32kg/day

The Hoshizaki IM-45CNE-25 is a self-contained commercial cube ice maker producing up to 32kg of crystal-clear ice per day under standard operating conditions, making it well suited to cafés, bars, restaurants, and venues where premium ice quality is non-negotiable. Each freeze cycle draws fresh water through a unique closed-cell water circuit, ensuring every batch of ice is pure, hygienic, and free from contamination.

Producing precisely formed 25mm x 25mm x 23mm cubes that are exceptionally hard and slow melting, this unit protects the integrity and flavour of premium beverages including cocktails and spirits. The compact, air-cooled design features front-panel airflow for built-in installation flexibility, adjustable legs, and a stackable configuration that allows production capacity to be scaled as demand grows.

Key Benefits

• Slow-melting, crystal-clear cubes preserve drink flavour and presentation, making them ideal for cocktails and premium beverage service.
• Fresh water used in every freeze cycle via a closed-cell water circuit delivers consistently hygienic ice and reduces contamination risk.
• Intelligent control circuit actively saves power and water consumption during daily operation, lowering running costs.
• Inbuilt safety protections including a freeze-cycle backup timer, defrost backup, low-voltage protection, and high-amp protector reduce the risk of costly downtime.
• Easily accessible front condenser air filter simplifies routine cleaning and helps avoid expensive service callouts.
• Stackable design allows multiple units to be combined, increasing total ice production capacity without requiring additional floor space.
• Compatible with storage bins and a bin-control system, giving operators flexible storage and dispensing options to suit venue workflow.
• Front-panel airflow supports built-in or under-counter installation, maximising usable kitchen space.
• Comprehensive warranty coverage provides peace of mind for a busy commercial environment.

Key Features

• Ice production capacity: approx. 35kg/24h at 10°C air/10°C water; approx. 32kg/24h at 21°C air/15°C water; approx. 27kg/24h at 32°C air/21°C water.
• Storage capacity: 15kg (bin control approximately 8kg).
• Cube dimensions: 25mm x 25mm x 23mm, producing approximately 42 cubes per cycle.
• Ice per cycle: approximately 0.55kg; freeze cycle time approximately 22 minutes.
• Air-cooled condensing unit with front-panel air inlet and outlet, suitable for built-in installation.
• Refrigerant: R134a, charge 160g.
• Power supply: single phase, 220–240V, 50Hz, 10A plug.
• Running current: 2.4A; starting current: 13A.
• Energy consumption: 2.4kWh/24h.
• Operating ambient temperature range: 1°C to 40°C.
• Water temperature range: 5°C to 35°C.
• Water pressure range: 0.07–0.8 MPa (0.7–8 bar).
• Voltage tolerance: rated voltage ±6%.
• Gravity drain only.
• Unique closed-cell water circuit for ultimate contamination protection and consistent ice purity.
• New intelligent control circuit dedicated to reducing power and water consumption.
• 7-segment operational display panel for straightforward monitoring and ease of use.
• Inbuilt safety features: freeze-cycle backup timer, defrost backup, low-voltage protector, and high-amp protector.
• Auto rinse and flush cycle maintains internal hygiene automatically.
• Easily accessible and cleanable front condenser air filter.
• Durable stainless steel exterior finish.
• Adjustable legs: 90–125mm height range.
• Stackable design allows units to be combined to multiply ice production capacity.
• Dimensions: 633mm (W) x 511mm (D) x 780mm (H) including legs.
• Net weight: 48kg; packed weight: 56kg.
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil.

Specifications

• Width (mm): 633
• Depth (mm): 780
• Height (mm): 511
• Weight (kg): 350
• Packed Depth (mm): 800
• Packed Height (mm): 700
• Packed Width (mm): 900
• Shipping Weight: 58
• Shipping Cubic: 0.336000000m3
• Ice Type: Cube Ice
• Ice Size: 25
• Ice Storage: 15
• Ice Production: 32
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 2.4 Amps
• Country of Origin: AU
