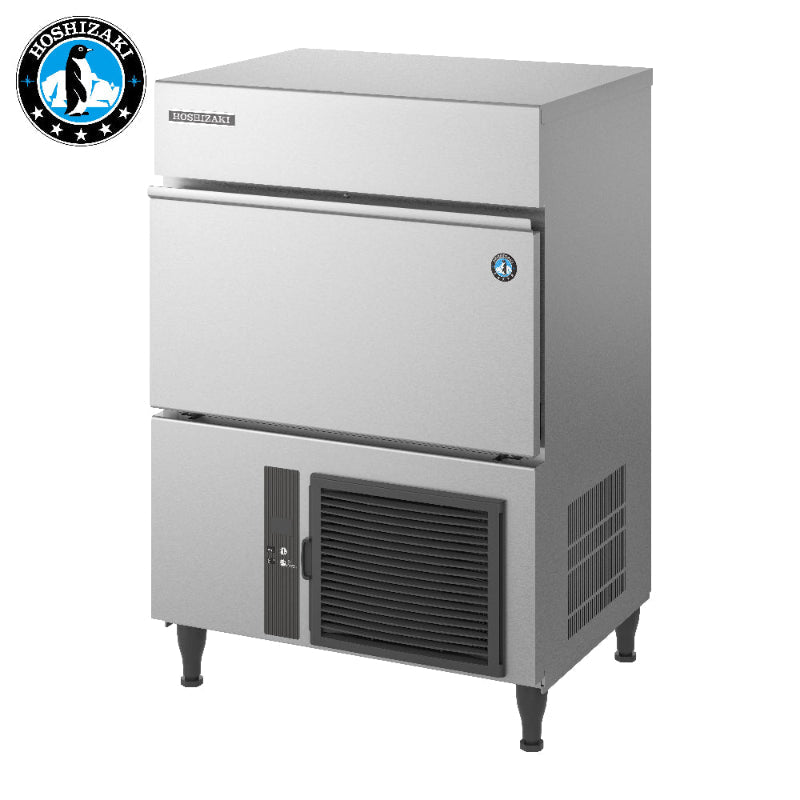

Hoshizaki IM-65NE-25 Self-Contained Undercounter Cube Ice Maker 44kg/Day

The Hoshizaki IM-65NE-25 is a self-contained undercounter cube ice maker producing up to 44kg of crystal-clear cube ice per 24 hours under standard conditions, with an integrated 26kg storage bin. Designed with hygiene as a core priority, the machine uses fresh water for every ice cycle through a unique closed-cell water circuit, delivering exceptionally hard, slow-melting cubes measuring 25mm x 25mm x 23mm. Its compact footprint and front-panel airflow make it suitable for built-in undercounter installation across cafés, bars, restaurants, hotels, healthcare facilities, and offices.

Built with a durable stainless steel exterior and powered by an air-cooled condensing unit using R134a refrigerant, the IM-65NE-25 incorporates a new intelligent electronic control circuit dedicated to minimising power and water consumption. A 7-segment operational display panel simplifies monitoring, while inbuilt safety protections, automatic rinse and flush cycles, and an easily accessible front condenser air filter reduce maintenance demands and the likelihood of costly service callouts. The unit ships on adjustable legs ranging from 90 to 125mm and operates on gravity drain only.

Key Benefits

• Consistent supply of hard, crystal-clear cube ice suitable for premium beverages, cocktails, food presentation, and healthcare applications.
• Fresh water used in every freeze cycle via the closed-cell water circuit, preventing contamination and maintaining the highest ice quality.
• Slow-melting cubes preserve drink integrity and flavour without rapid dilution, making them ideal for cocktails and premium service.
• Intelligent electronic controls actively reduce energy and water consumption during daily operation, lowering running costs.
• Front panel air intake and exhaust enables true built-in undercounter installation without requiring additional clearance at the sides or rear.
• Easily accessible and removable front condenser air filter can be cleaned without tools, reducing the need for professional service callouts.
• Inbuilt safety features including a freeze cycle back-up timer, defrost back-up, low voltage protector, and high amp protector safeguard the machine from damage.
• Automatic rinse and flush cycle maintains internal hygiene and ice quality between production cycles with minimal operator intervention.
• Adjustable legs from 90 to 125mm allow the unit to be levelled on uneven floors and fitted neatly beneath standard bench heights.

Key Features

• Production capacity: approximately 44kg per 24 hours at 21°C air temperature and 15°C water temperature.
• Reduced capacity of approximately 37kg per 24 hours at 32°C air temperature and 21°C water temperature.
• Integrated 26kg ice storage bin.
• Ice cube dimensions: 25mm x 25mm x 23mm.
• Produces 56 cubes per freeze cycle.
• Self-contained all-in-one undercounter design.
• Unique closed-cell water circuit for contamination protection and consistent ice purity.
• Fresh water used for each individual ice cycle.
• Exceptionally hard, crystal-clear cubes with slow melt rate.
• Air-cooled condensing unit with front panel air intake and exhaust for built-in installation.
• Refrigerant: R134a (200g charge).
• New intelligent control circuit dedicated to reducing power and water consumption.
• 7-segment operational display panel for straightforward monitoring and ease of use.
• Inbuilt safety protections: freeze cycle back-up timer, defrost back-up, low voltage protector, and high amp protector.
• Automatic rinse and flush cycle.
• Durable stainless steel exterior construction.
• Removable, washable front-access condenser air filter.
• Gravity drain only.
• Adjustable legs: 90 to 125mm.
• Dimensions: 633mm (W) x 506mm (D) x 930mm (H) including legs.
• Energy consumption: 2.9kWh per 24 hours.
• Power supply: 10 amp.
• 3-year parts and labour warranty on the entire unit.
• 5-year parts-only warranty on the compressor and air-cooled condenser coil.
• Suitable for cafés, bars, restaurants, hotels, healthcare facilities, offices, and hospitality venues.

Specifications

• Width (mm): 633
• Depth (mm): 930
• Height (mm): 506
• Weight (kg): 350
• Packed Depth (mm): 800
• Packed Height (mm): 700
• Packed Width (mm): 1100
• Shipping Weight: 38
• Shipping Cubic: 0.378000000m3
• Ice Type: Cube Ice
• Ice Size: 25
• Ice Storage: 26
• Ice Production: 44
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 2.9 Amps
• Country of Origin: AU
