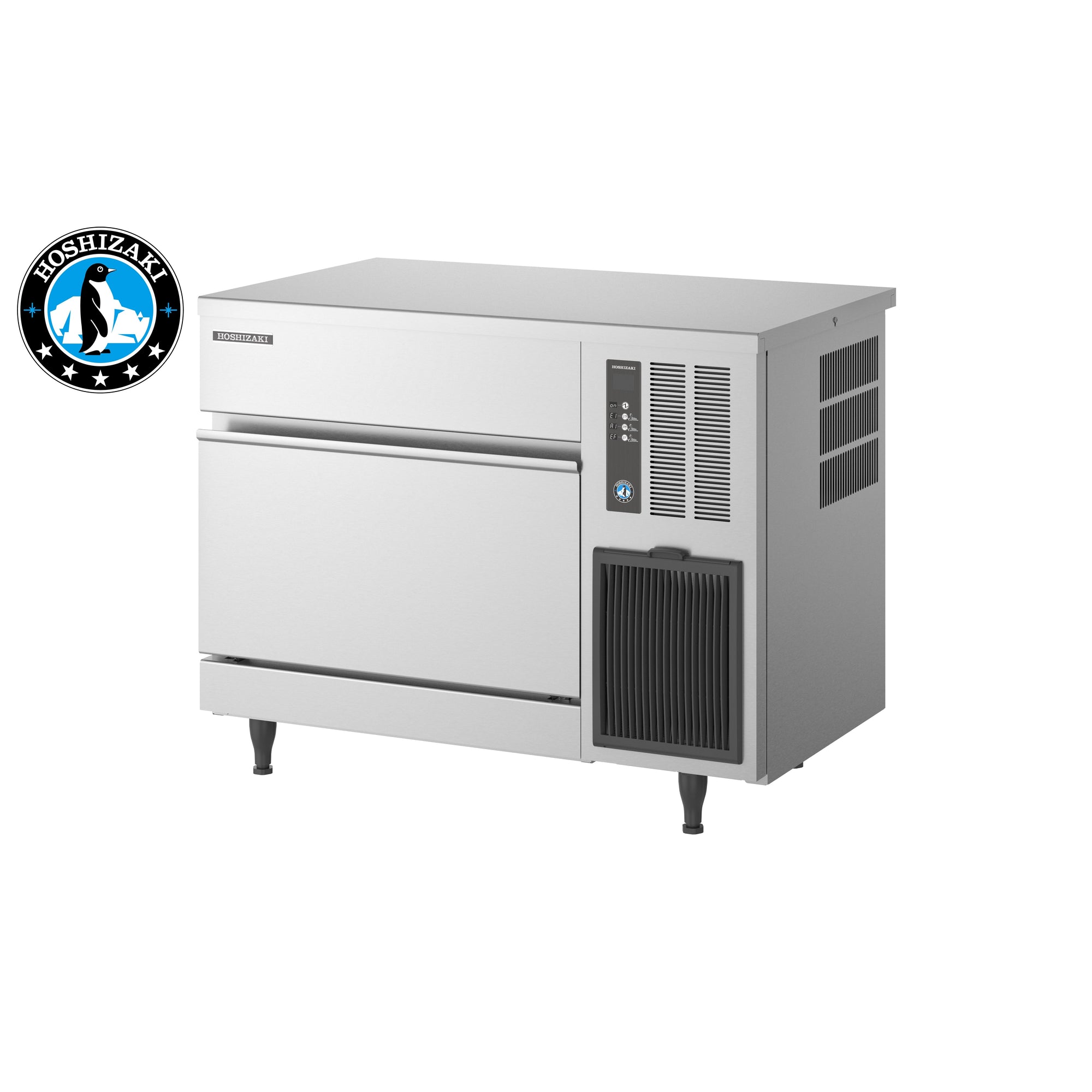

Hoshizaki IM-100CNE-21 Self-Contained Undercounter Cube Ice Maker 85kg/day

The Hoshizaki IM-100CNE-21 is a self-contained undercounter cube ice maker that produces approximately 85 kg of crystal-clear 21 mm cube ice every 24 hours under standard conditions (21°C air, 15°C water), with a 38 kg integrated storage bin. Engineered to meet the demands of commercial venues including bars, restaurants, cafés, hotels, healthcare facilities, and catering operations, it combines Hoshizaki's closed-cell water circuit technology with intelligent electronic controls to deliver consistently high ice quality while minimising water and energy consumption.

Every ice cycle draws fresh water through the closed-cell circuit, producing exceptionally hard, slow-melting cubes free of impurities — a quality particularly prized in premium beverage service and cocktail preparation. Front-panel air intake and exhaust allow straightforward built-in or undercounter installation, while adjustable legs, a durable stainless steel exterior, and an easily accessible washable air filter make this a low-maintenance solution for high-volume commercial environments.

Key Benefits

• Consistent high-volume output of up to 85 kg per day at standard conditions keeps pace with busy service periods without interruption.
• Hard, crystal-clear cubes melt slowly, preserving drink flavour and reducing dilution — essential for cocktails and premium beverage service.
• Fresh water is used in every ice cycle via the closed-cell water circuit, minimising contamination risk and ensuring hygienic ice production.
• Intelligent microcomputer controls continuously optimise the freeze cycle for peak performance across varying ambient and water temperatures.
• Auto rinse and flush cycles reduce manual cleaning demands and help maintain ice quality and machine hygiene over time.
• Front-panel airflow design allows built-in undercounter installation without requiring side or rear clearance, simplifying kitchen layout planning.
• The front-access air filter is easy to remove and clean, reducing the likelihood of costly service callouts caused by restricted airflow.
• Multiple onboard protective mechanisms — covering freeze cycle timing, defrost operation, voltage fluctuations, and excess current draw — guard against operational failures and equipment damage.
• Rated for operation in ambient temperatures up to 40°C, making it well suited to tropical climates and warm kitchen environments.

Key Features

• Production capacity: approximately 85 kg/24 h at 21°C air temperature and 15°C water temperature; approximately 62 kg/24 h at 32°C air temperature and 21°C water temperature.
• 38 kg integrated ice storage bin.
• 21 mm x 21 mm x 14 mm half-cube ice format.
• Approximate freeze cycle duration: 17 minutes, producing approximately 1.15 kg or 190 cubes per cycle.
• Self-contained, all-in-one undercounter design.
• Unique closed-cell water circuit providing maximum contamination protection.
• Microcomputer controller that adapts the ice-making process to ambient and water conditions.
• New intelligent control circuit dedicated to reducing power and water consumption.
• 7-segment operational display panel for clear, user-friendly status monitoring.
• Onboard protection suite comprising a timed freeze-cycle safeguard, defrost override protection, a low-voltage guard, and a high-amp protector.
• Auto rinse and flush cycle for ongoing hygiene maintenance.
• Air-cooled condensing unit.
• Front-panel air intake and exhaust enabling built-in installation.
• Durable stainless steel exterior construction.
• Easily removable and washable front-access condenser air filter.
• Adjustable legs, height range 90 mm to 125 mm.
• Gravity drain only.
• Refrigerant: R134A.
• Power supply: single phase, 10 A.
• Energy consumption: 4.1 kWh/24 h.
• Rated for ambient temperatures up to 40°C (tropical conditions).
• Dimensions: 1004 mm (W) x 600 mm (D) x 800 mm (H), excluding legs.
• Unit weight: approximately 88 kg.
• Units can be stacked to multiply ice production capacity.
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser.

Specifications

• Width (mm): 1004
• Depth (mm): 800
• Height (mm): 600
• Weight (kg): 350
• Packed Depth (mm): 1200
• Packed Height (mm): 800
• Packed Width (mm): 900
• Shipping Weight: 90
• Shipping Cubic: 0.481920000m3
• Ice Type: Cube Ice
• Ice Size: 21
• Ice Storage: 38
• Ice Production: 95
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 4.1 Amps
• Country of Origin: AU
