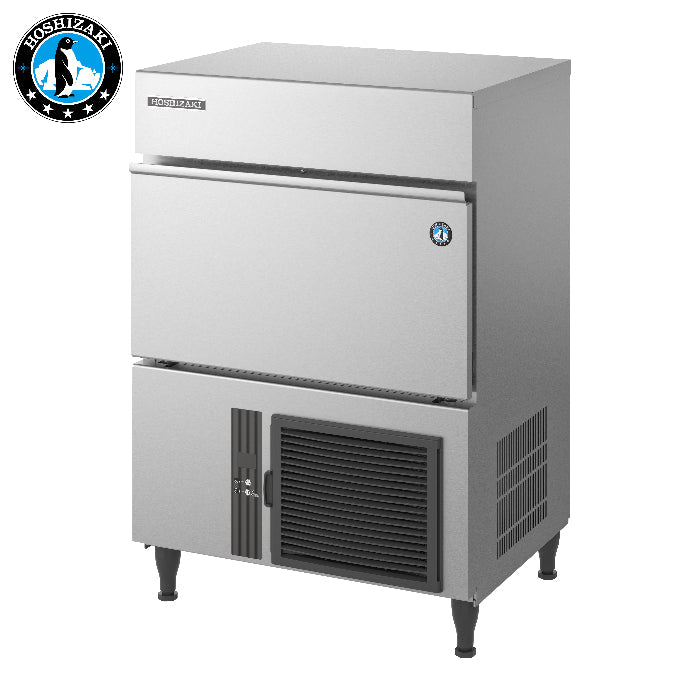

Hoshizaki IM-65NE-LM Commercial Gourmet Cube Ice Maker, 33 kg Per Day

The Hoshizaki IM-65NE-LM is a commercial gourmet cube ice maker engineered with hygiene as its core priority. A unique closed-cell water circuit draws fresh water through every freeze cycle, producing exceptionally hard, crystal-clear cubes measuring 48 mm x 48 mm x 58 mm that melt slowly and preserve the integrity and flavour of premium beverages such as cocktails. Output reaches approximately 33 kg per day under standard conditions, while the integrated 26 kg storage bin ensures a consistent, reliable supply for busy bars, restaurants and commercial kitchens.

Designed for built-in undercounter installation, the IM-65NE-LM routes all air intake and exhaust through the front panel, making it ideal for space-constrained environments. A new intelligent control circuit keeps power and water consumption to a minimum, and a 7-segment operational display makes monitoring and diagnostics straightforward. Multiple inbuilt safety protections, an auto rinse and flush cycle, and a front-accessible condenser air filter combine to reduce maintenance demands and servicing costs, while adjustable legs and stackable compatibility allow production to be scaled as the business grows.

Key Benefits

• Produces approximately 33 kg of ice per day at 21°C air and 15°C water, or around 25 kg per day at 32°C air and 21°C water, sustaining high-volume service throughout the day
• Crystal-clear, slow-melting gourmet cubes protect the flavour and dilution rate of premium cocktails and spirits, elevating drink quality
• Front-panel airflow design permits built-in undercounter installation, conserving valuable floor space in compact commercial environments
• Intelligent control circuit actively lowers power and water consumption during operation, reducing ongoing utility costs
• Four inbuilt safety protections covering freeze cycle timing, defrost operation, voltage fluctuations and excess current draw reduce the risk of unexpected breakdowns
• Front-accessible condenser air filter simplifies routine cleaning and cuts the frequency of costly service callouts
• Auto rinse and flush cycle maintains internal hygiene with minimal staff intervention
• Closed-cell water circuit prevents contamination, ensuring consistently clean ice with every cycle
• Adjustable legs spanning 90 mm to 125 mm allow levelling on uneven floors, and the stackable design is compatible with additional storage bins to multiply total ice capacity

Key Features

• Ice type: gourmet large cube, dimensions 48 mm x 48 mm x 58 mm
• Production capacity: approximately 33 kg per day at 21°C air temperature and 15°C water temperature
• Production capacity: approximately 25 kg per day at 32°C air temperature and 21°C water temperature
• Integrated storage bin capacity: 26 kg
• Air-cooled condensing unit with front-panel intake and exhaust airflow for built-in installation
• Refrigerant: R134a, 230 g charge
• New intelligent control circuit dedicated to reducing power and water consumption
• 7-segment operational display panel for straightforward monitoring and diagnostics
• Four inbuilt safety protections: a freeze cycle timing safeguard, a defrost operation safeguard, a low voltage protector and a high amp protector
• Unique closed-cell water circuit for superior contamination protection
• Auto rinse and flush cycle for ongoing internal hygiene
• Easily accessible front condenser air filter for quick, low-cost maintenance
• Durable stainless steel exterior resistant to corrosion
• Gravity drain only
• Adjustable legs included, height range 90 mm to 125 mm
• Stackable configuration; compatible with storage bins to increase total ice capacity
• Energy consumption: 2.5 kWh per 24 hours
• Power supply: 10 amp
• Cabinet dimensions: width 633 mm, depth 506 mm, height 950 mm including legs
• Unit weight: 61 kg
• 3-year parts and labour warranty on the entire unit
• 5-year parts-only warranty on the compressor and air-cooled condenser coil

Specifications

• Width (mm): 633
• Depth (mm): 950
• Height (mm): 506
• Weight (kg): 350
• Packed Depth (mm): 735
• Packed Height (mm): 570
• Packed Width (mm): 1012
• Shipping Weight: 38
• Shipping Cubic: 0.378000000m3
• Ice Type: Gourmet Cube
• Ice Size: 48
• Ice Storage: 26
• Ice Production: 33
• No. of Doors: 5711
• Mobility: 5809
• Power (kW): 1
• Energy Consumption (kWh/24h): 2.5 Amps
• Country of Origin: AU
