Overview

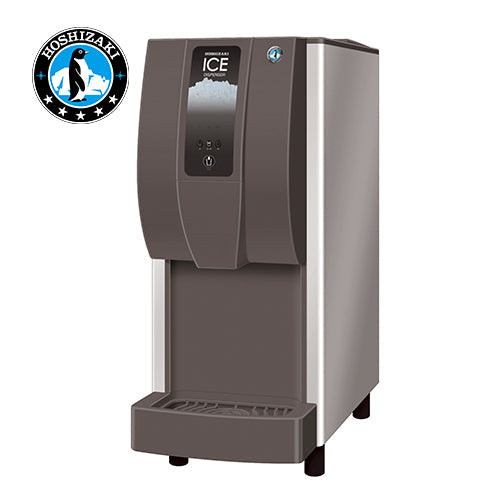

Hoshizaki DCM-120KE-P Ice & Water Dispenser – Cubelet Ice, Push-Button Self-Service

The Hoshizaki DCM-120KE-P is a self-contained ice and water dispensing unit that combines ice production, storage, and dispensing in a single compact footprint. Producing up to 105 kg of premium cubelet ice per 24 hours, it is engineered for high-traffic commercial environments including hospitality venues, catering operations, healthcare facilities, and staff service areas.

Push-button operation allows users to dispense ice only, water only, or ice and water simultaneously, making it well suited to both self-service and staff-operated applications. Adjustable portion-controlled dispensing reduces waste and regulates consumption, while the auger-based production system ensures smooth, consistent ice delivery with no ice bridging.

Key Benefits

• All-in-one design integrates ice making, storage, and dispensing to save bench space and simplify installation in tight commercial areas.
• Cubelet ice is soft, chewable, and slow melting, making it ideal for beverages, food presentation, and healthcare applications.
• Push-button hygienic dispensing allows ice to be delivered directly into a container, greatly reducing the risk of contamination in self-serve settings.
• Adjustable portion control makes it straightforward to regulate how much ice each user receives, cutting down on unnecessary consumption and waste.
• Auger-driven system ensures water consumption is proportional to ice production and eliminates ice bridging for reliable, uninterrupted output.
• Air-cooled condenser delivers consistent performance without the need for a water-cooled infrastructure, simplifying installation.
• Compact 350 mm wide footprint fits neatly into service counters, break rooms, and front-of-house areas where space is at a premium.
• Robust stainless steel construction withstands the demands of busy commercial environments and supports easy, thorough cleaning.

Key Features

• Produces up to 105 kg of cubelet ice per 24 hours
• Cubelet (nugget-style) ice – soft, chewable, and slow melting
• Dispenses ice only, water only, or ice and water simultaneously
• Push-button ('P' model) operation for controlled, hygienic self-service
• Adjustable portion-controlled dispensing to regulate consumption and reduce waste
• Integrated auger system – water consumption equals ice production; eliminates ice bridging
• Air-cooled condenser for straightforward, reliable operation
• Stainless steel construction for durability and ease of cleaning
• Compact 350 mm wide footprint suited to space-constrained installations
• 4 kg ice storage capacity built into the unit
• 1 kW power consumption
• Unit weight 66 kg; dimensions 350 W x 585 D x 815 H mm
• Suitable for hospitality, catering, leisure, healthcare, and office environments
• 2-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil

Specifications

• Width (mm): 350
• Depth (mm): 585
• Height (mm): 815
• Weight (kg): 66
• Packed Depth (mm): 665
• Packed Height (mm): 1026
• Packed Width (mm): 440
• Ice Type: ICE | WATER DISPENSER
• Ice Size: CUBELET
• Ice Storage: 4
• Ice Production: 105
• Mobility: 5809
• Power (kW): 1
